Super Glossy Carbon Fiber PPF (Paint Protection Film)

Most carbon fiber wraps add looks but no real protection. VinylFrog Carbon Shield Ultra Color PPF does both. It is a true TPU paint protection film with a glossy carbon fiber weave pattern. The film defends against scratches, chips, bird droppings, and tree sap. A self-healing topcoat repairs light marks with heat. The hydrophobic surface makes water bead up and slide off. No yellowing. No orange peel. No fading, peeling, or cracking over time.

Features

Specifications

• Color: Carbon Shield Ultra

• Pattern: Carbon Shield Ultra.

• Application Method: Apply on a clean and dry surface.

• Sizes available: 5ft x 1ft, 2ft, 3.3ft, 6.5ft, 10ft, 13ft, 16ft, 33ft, and 49ft.

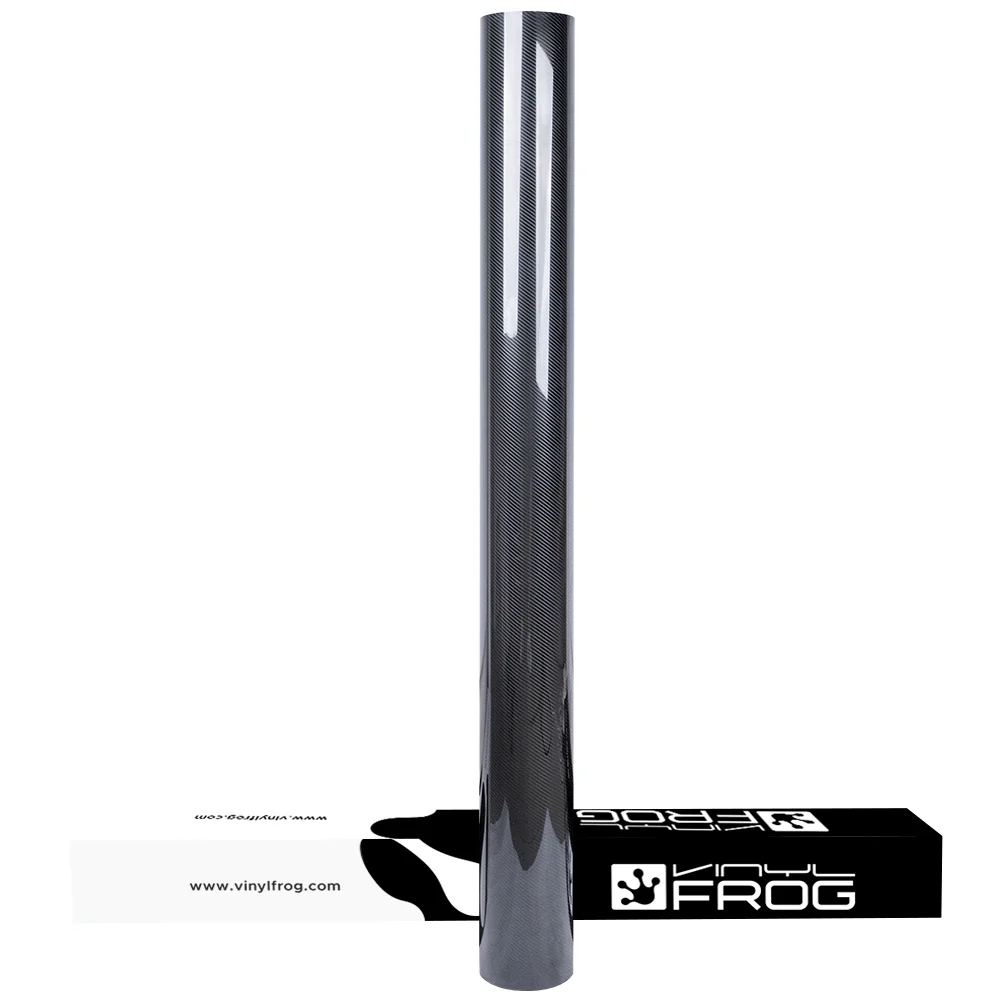

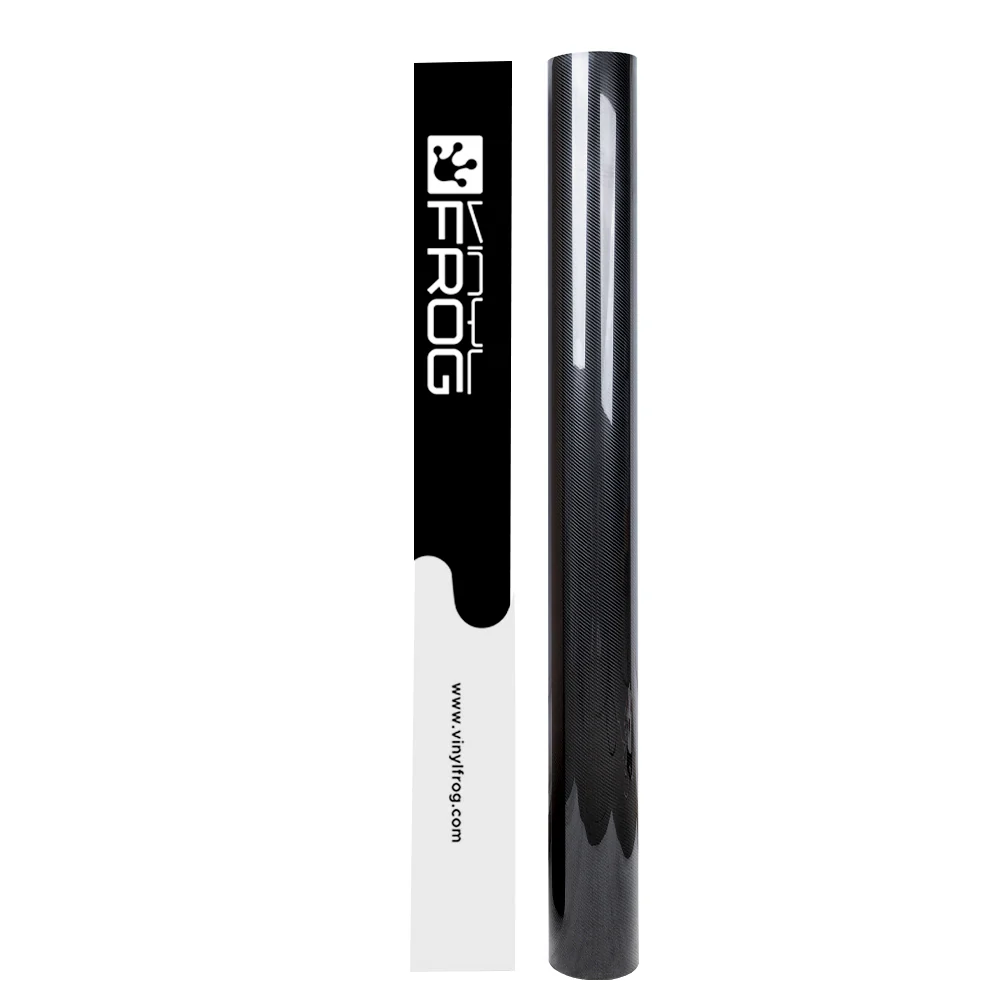

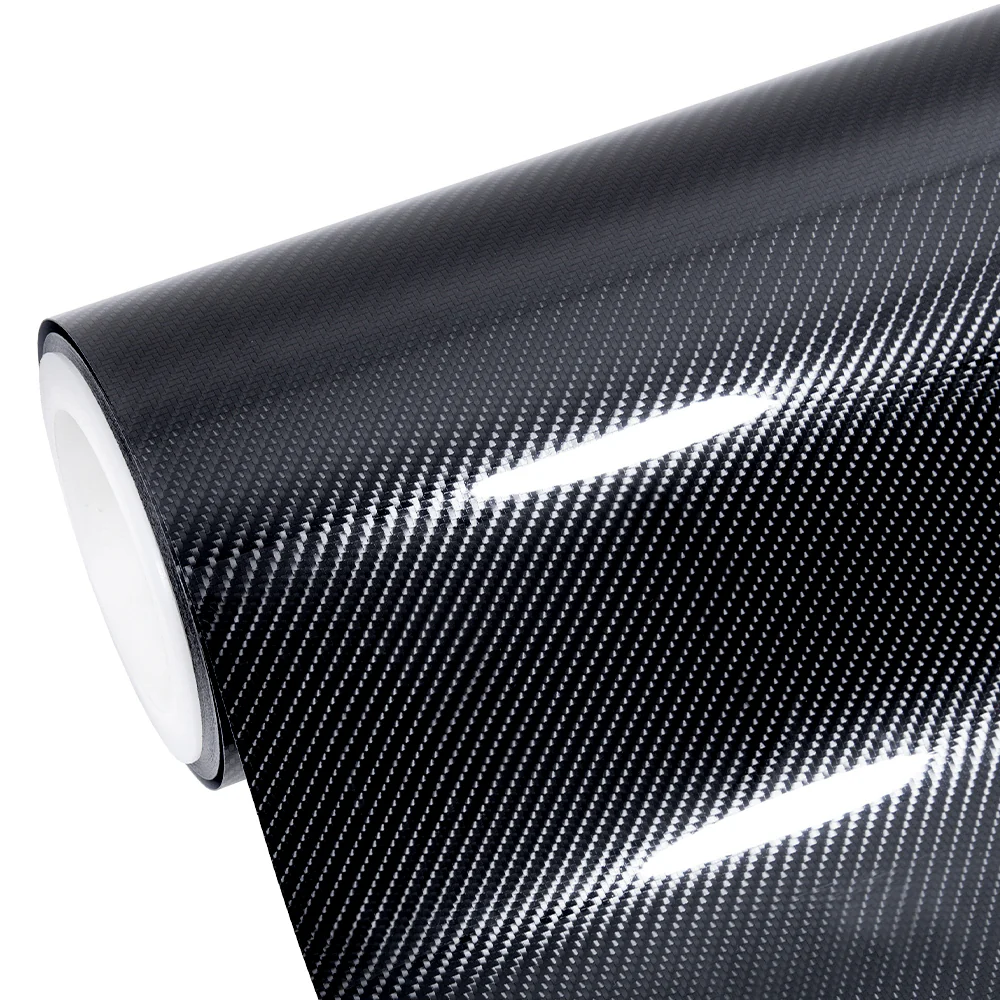

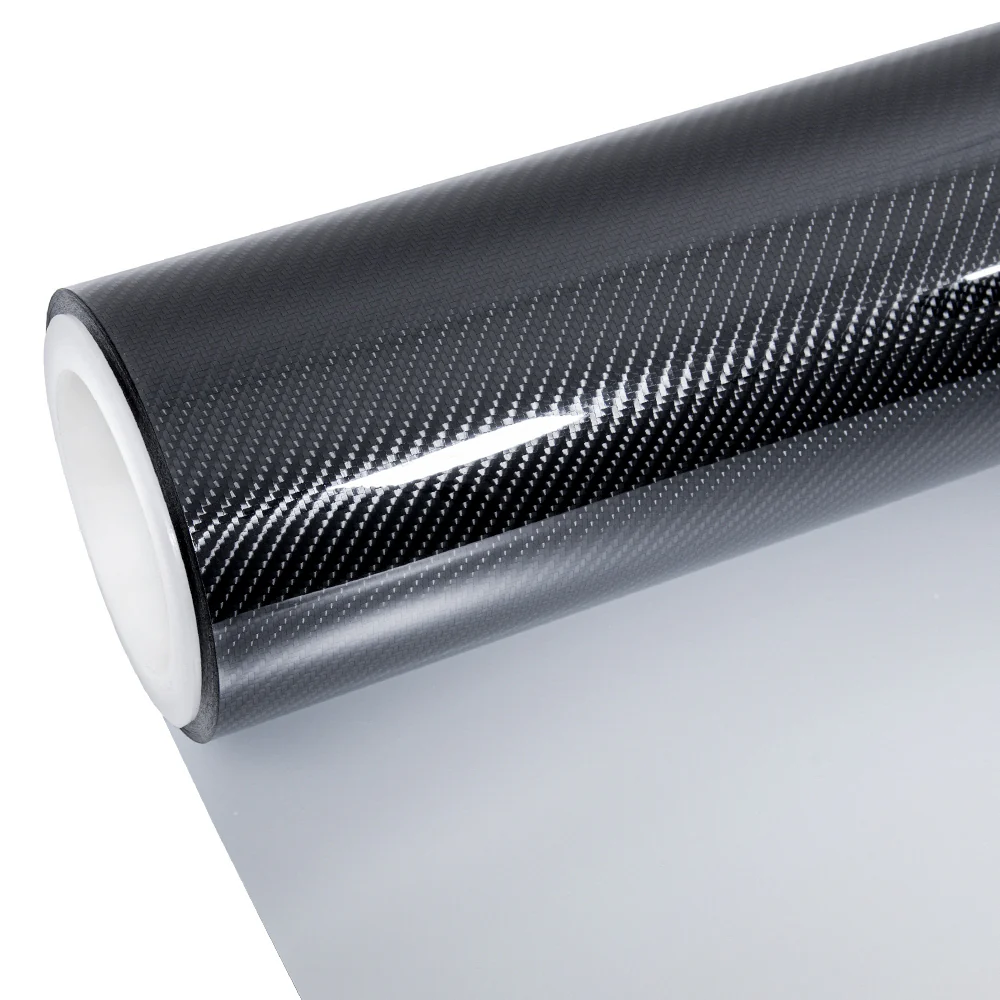

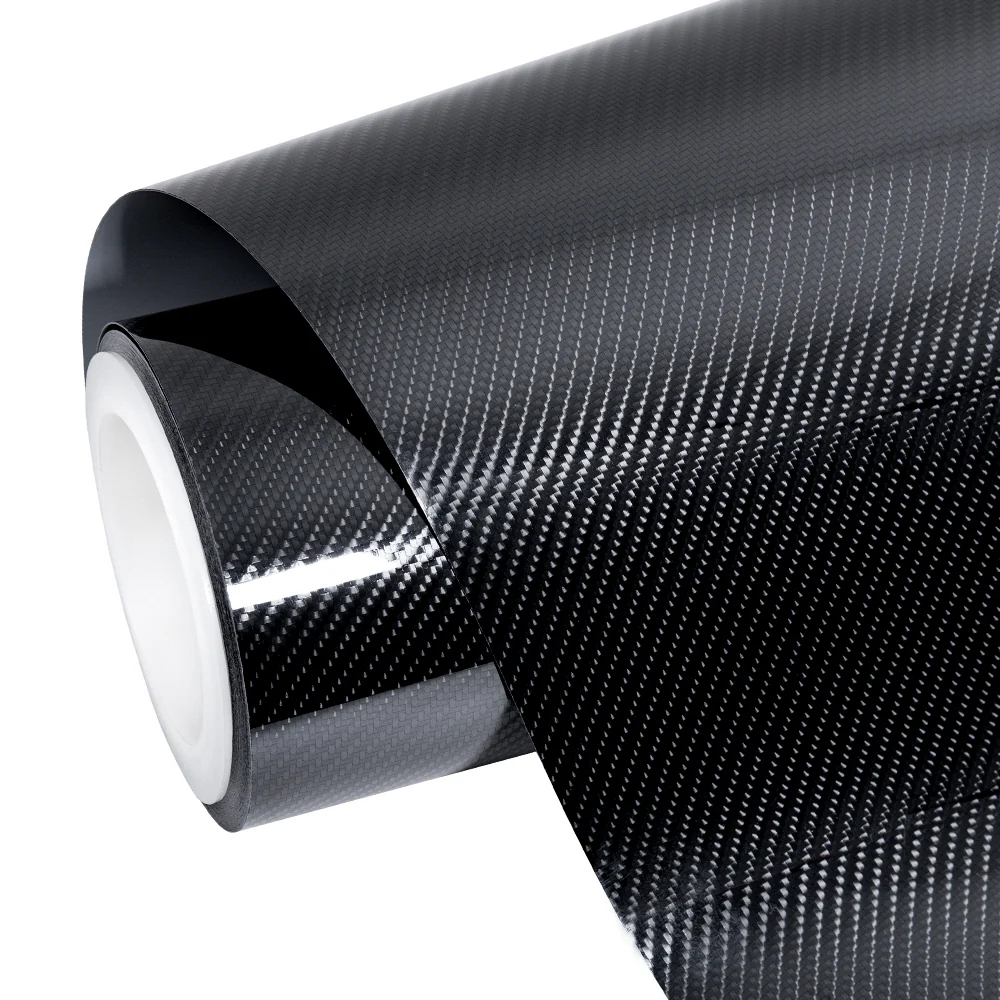

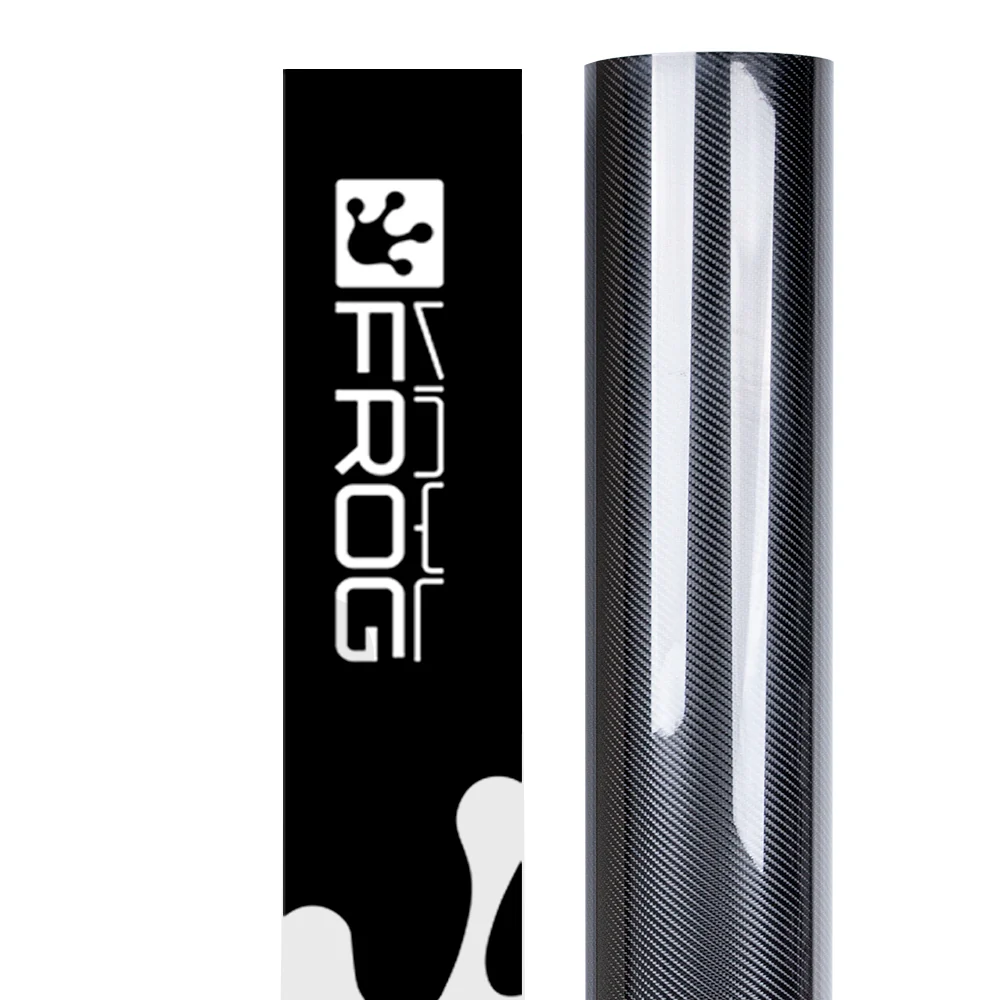

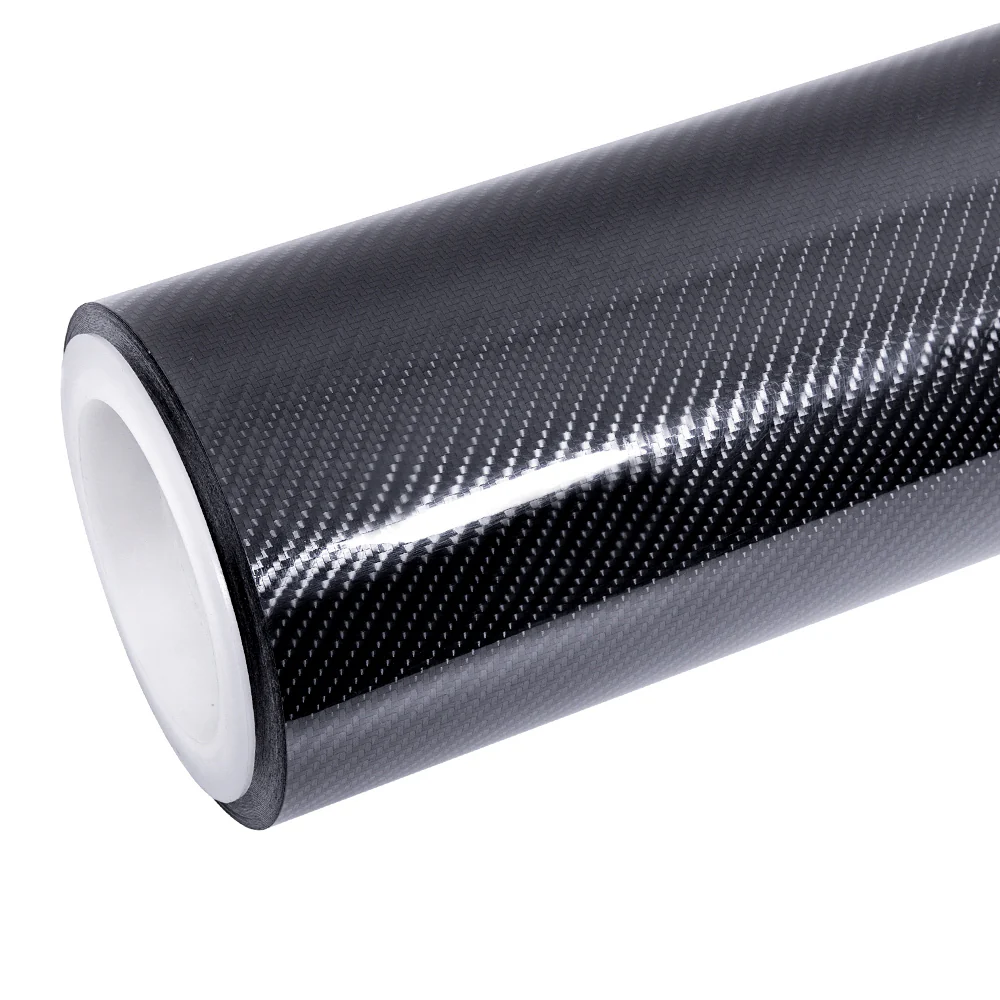

• Packaging: Roll.

Things You Should Know:

Best Paint Protection Film (PPF)

How To Apply Paint Protection Film

PPF Vs Vinyl Wrap

How Long Does Paint Protection Film Last?

How Much Does  Paint Protection Film Cost?

Video

Structure

Functions

Recommended Uses

▲ Standard Size & Appearance

Classification		Unit	Specs	Remarks
Thickness	Top protected film	um	50±2%	PET
	Self-healing Layer	um	15±2%	/
	Face Film	um	160±8	Thermoplastic Polyurethane
	Acrylic Adhesive	um	25±2%	Solvent-based
	Release liner	um	85±2%	Satin Semi-transparent White
Surface		－	Glossy & Transparent	Super Glossy without Orange Peel
Width		m	1.52±0.01%	4.98ft
Length		m	15±1%	49.21ft



Physical properties

▲ General Properties

Features		Test Method/Conditions	Data
Gloss（60°）		GB 8807	≥90
Water Contact Angle		DL/T864	≥75
Hardness		ISO0868/ ASTM D-2240	≥90
Elongation at Break		GB/ T1040	≥340
Coating Elongation at Break		GB/ T1040	≥85
Tensile Strength		GB/ T1040	≥20 (mpa)
Peel Strength		GB/ T2792	≥800
Scratch Repair		(0.1mm) Copper brush & Heat gun	Thermal Self-Healing
Chemical Resistance		(Detergent) Naturally dried	No Marks
Mud Resistance		70°/1h Wash & Heat gun	No Marks
Stain Resistance (oil-based pen)		Naturally dried, wipe with alcohol, no marks	No Marks
Gloss		60° refraction	≥90°
Water Contact Angle		Refer to DL/T864	≥75°
Alkali Resistance (168H)		20% sodium hydroxide solution	No abnormalities
Acid Resistance		10% hydrochloric acid solution	No abnormalities
Yellowing ΔE		QUV Method	≤2.4
Aging Test 1		70℃ and 7 days	No Adhesive Residue with Heat
Aging Test 2		90℃ and 7 days	No Adhesive Residue without Heat
Application Temperature		/	+20℃ to +30℃
Service Temperature		/	-50℃ to +110℃
Recommended Shelf Life		72°F (22°C) and 50% RH	2 years
Durability		/	3 years
Time limits		Must use it within 3 months after receiving the wrap film	3 months



Recommendations

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid

Cutting & application method:

• Cutting process:
  • Use light, repeated scoring strokes rather than a single deep cut to avoid fraying or damaging the paint.
  • Keep blades sharp and replace frequently.
  • Gentle pre-heating can soften the film slightly, reducing cutting resistance, but avoid overheating to prevent texture distortion.
  • Trim neatly to panel edges. Do not overstretch the textured surface into gaps.
• Application method: Standard methods for Paint Protection Film. Do not overstretch and overheat. Post-heating is necessary.

Post-heating temperature: 110°C flat surfaces, 130°C curves and overlaps.
Aftercare: PH neutral. Avoid wax or solvents.

CAUTION!

 1. We will peel off the protection layer before shipment if your order is 1m,3m or 5m in order to make the vinyl good for shipping.

 2. The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

3. Most vinyl wraps are directional. Install the vinyl in the same direction across all panels. Applying the material in different directions can cause visible color differences due to light reflection.
