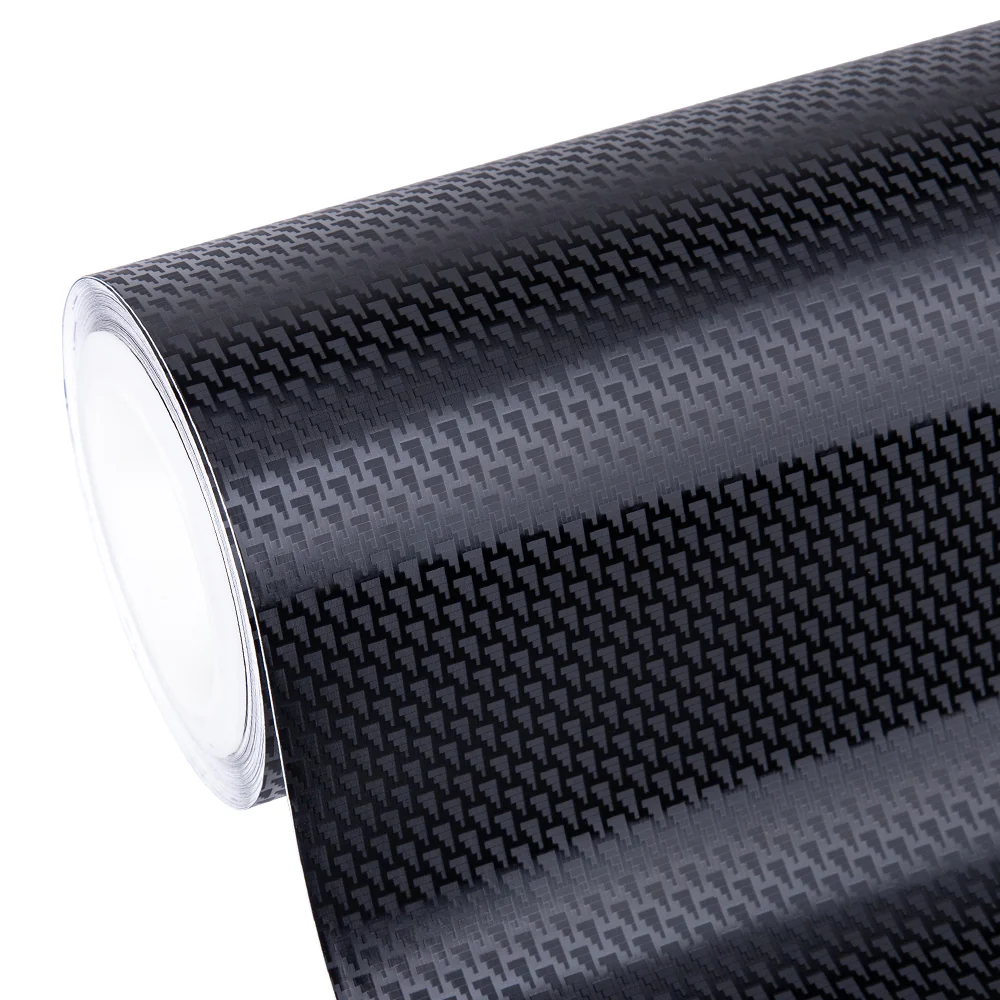

3D Diamond Black Carbon Fiber Vinyl Wrap

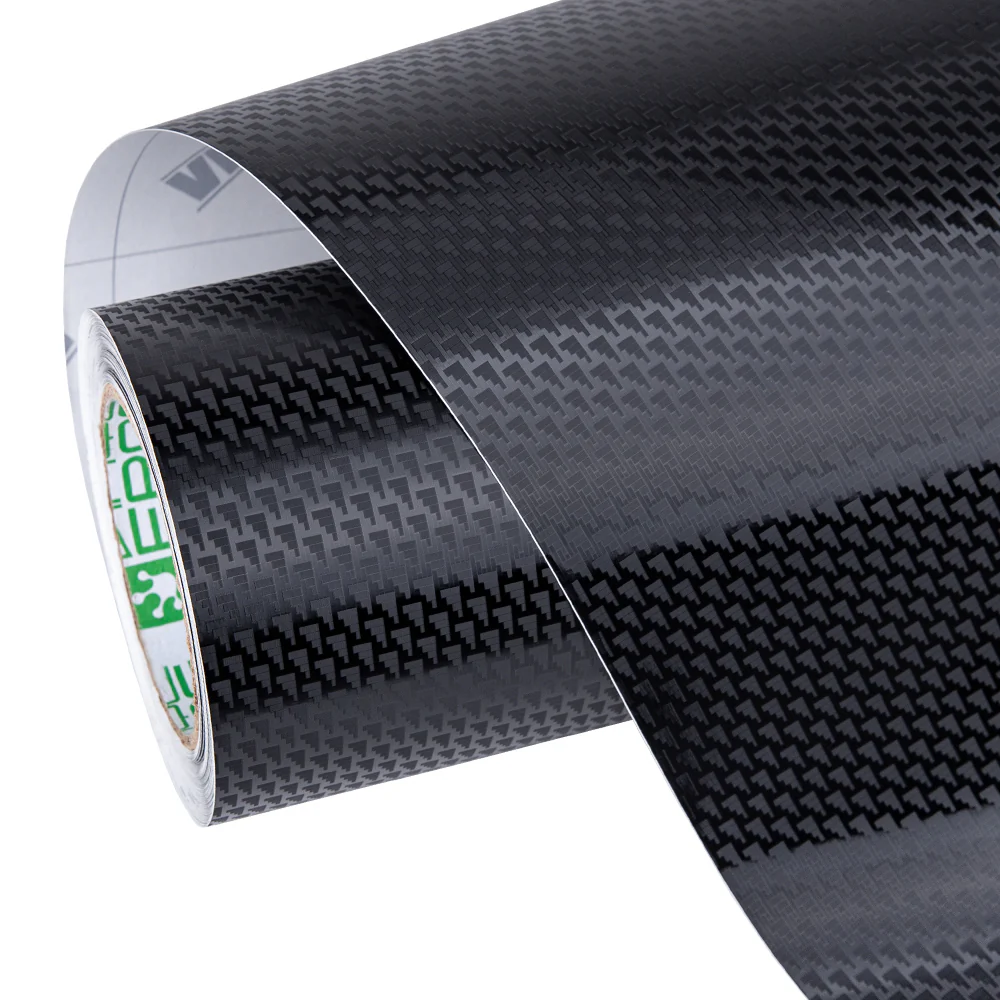

3D black carbon fiber vinyl wrap uses a physically embossed weave where each fiber crossing point is raised above the surface, creating actual depth at every intersection rather than a flat printed pattern. The raised crossings form small diamond shapes across the surface the shadow that falls at each intersection is what produces the dimensional appearance.
Where a flat carbon fiber print relies on the ink contrast to suggest texture, this film has actual height variation built into the surface. The shadow at each raised crossing does the work that a gloss coat does on a flat film the difference is that shadow-based depth holds in diffuse light and overcast conditions where gloss reflection disappears.

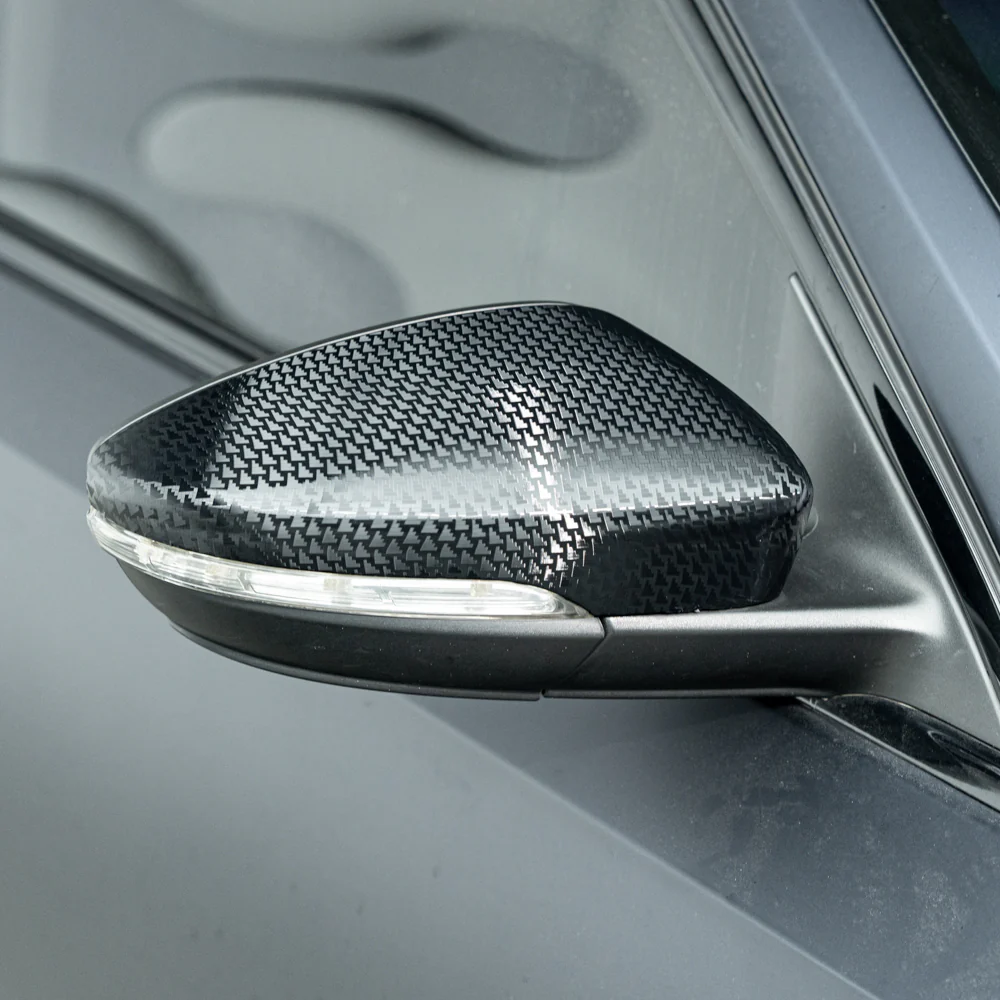

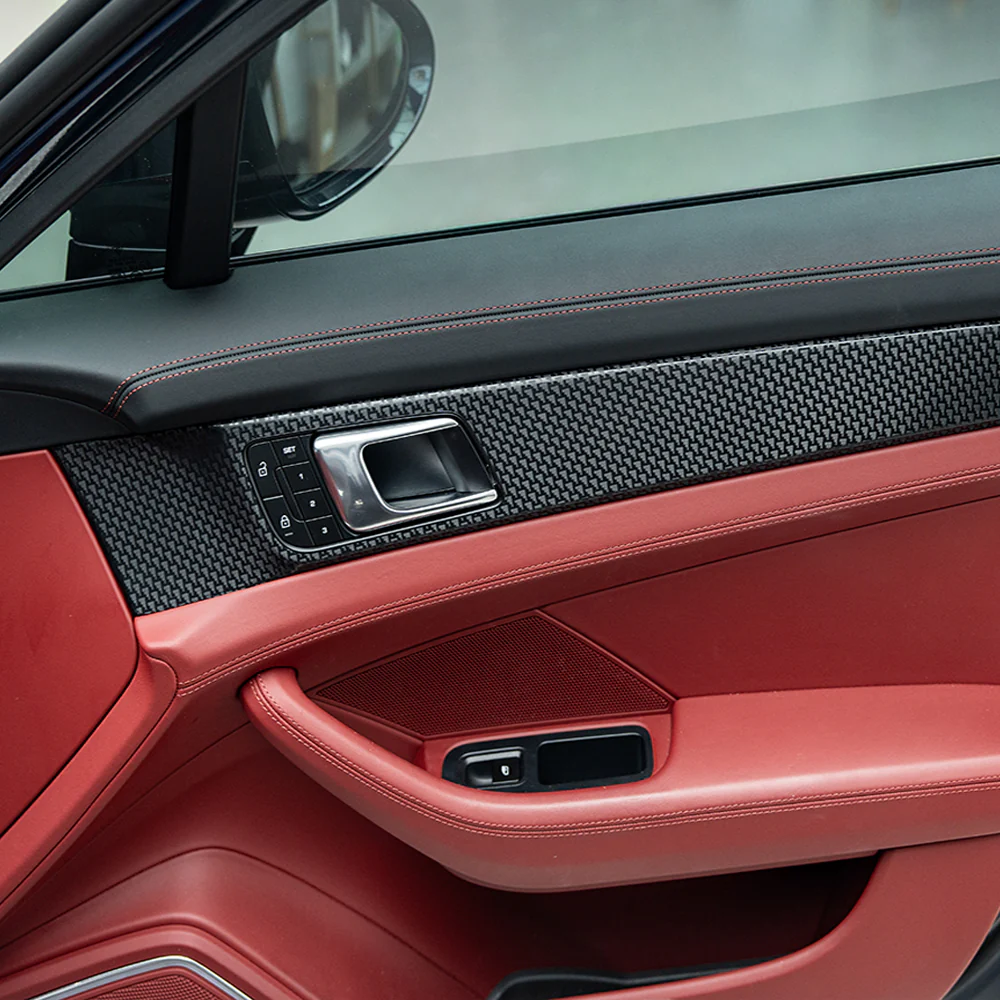

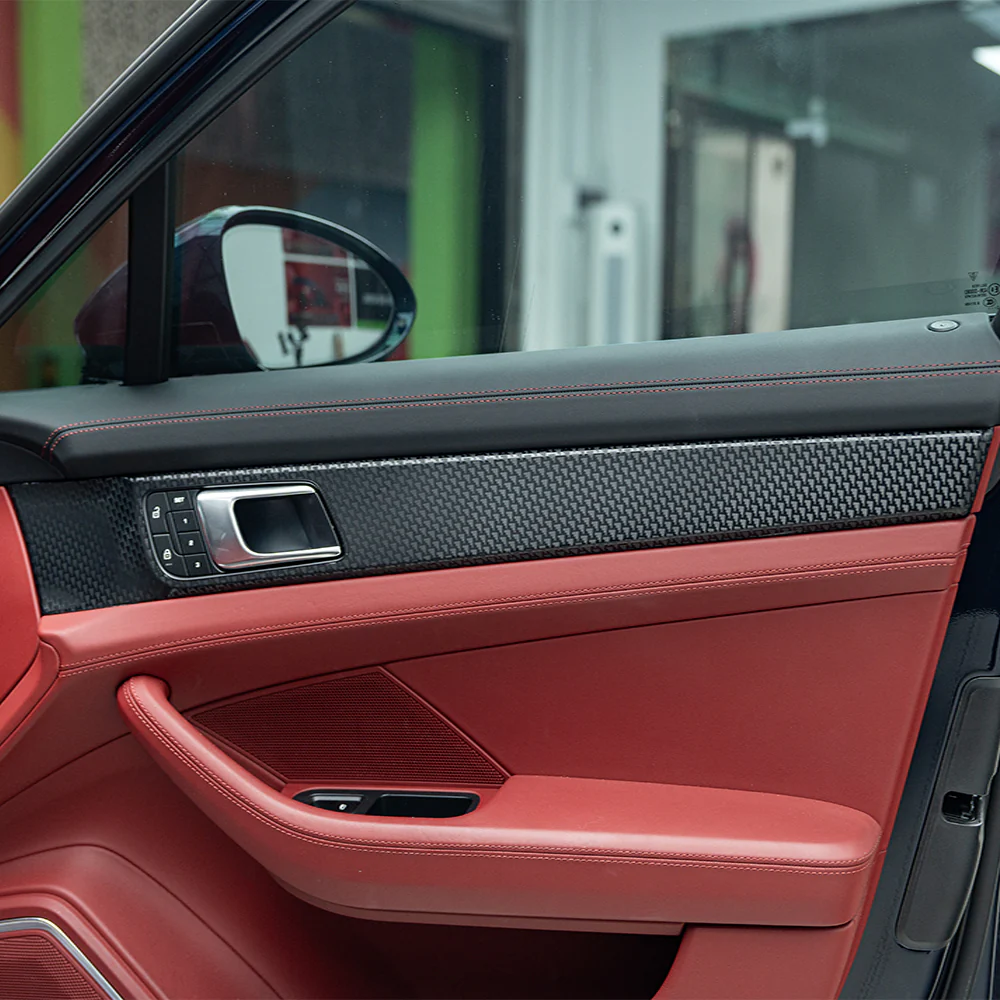

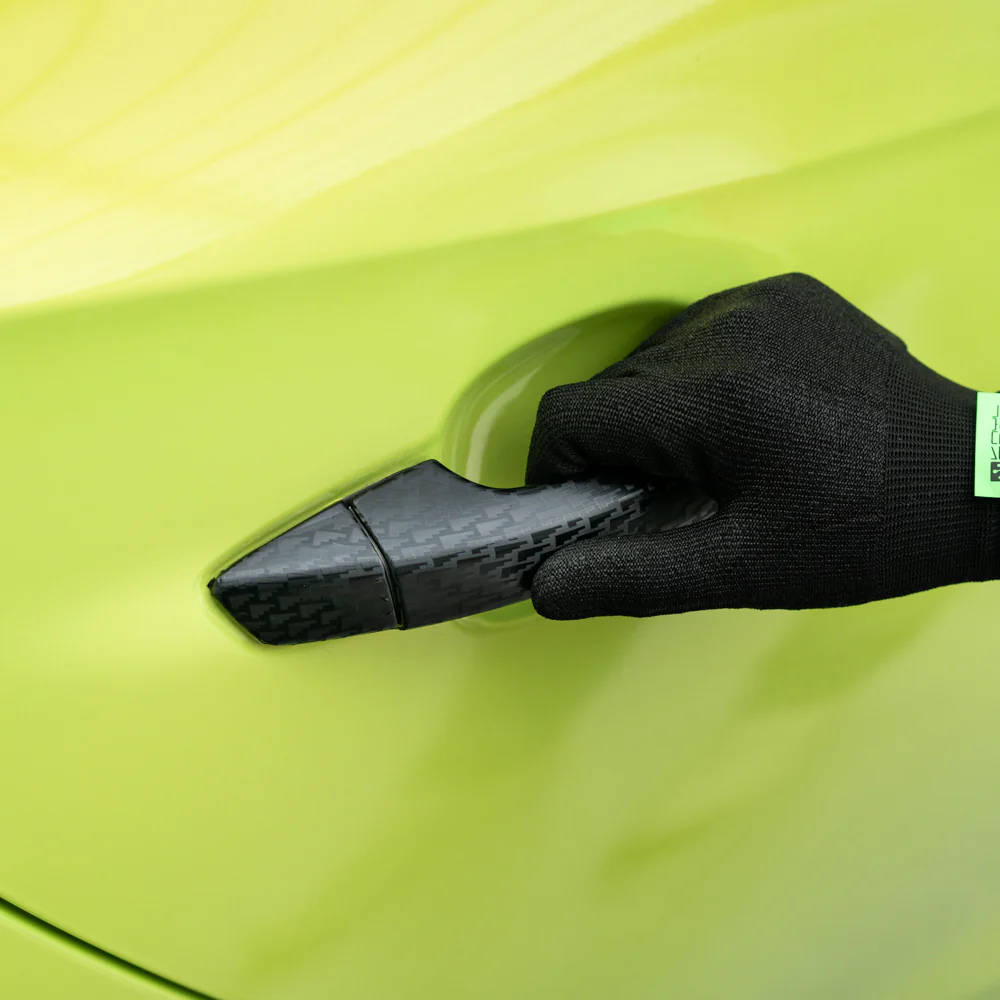

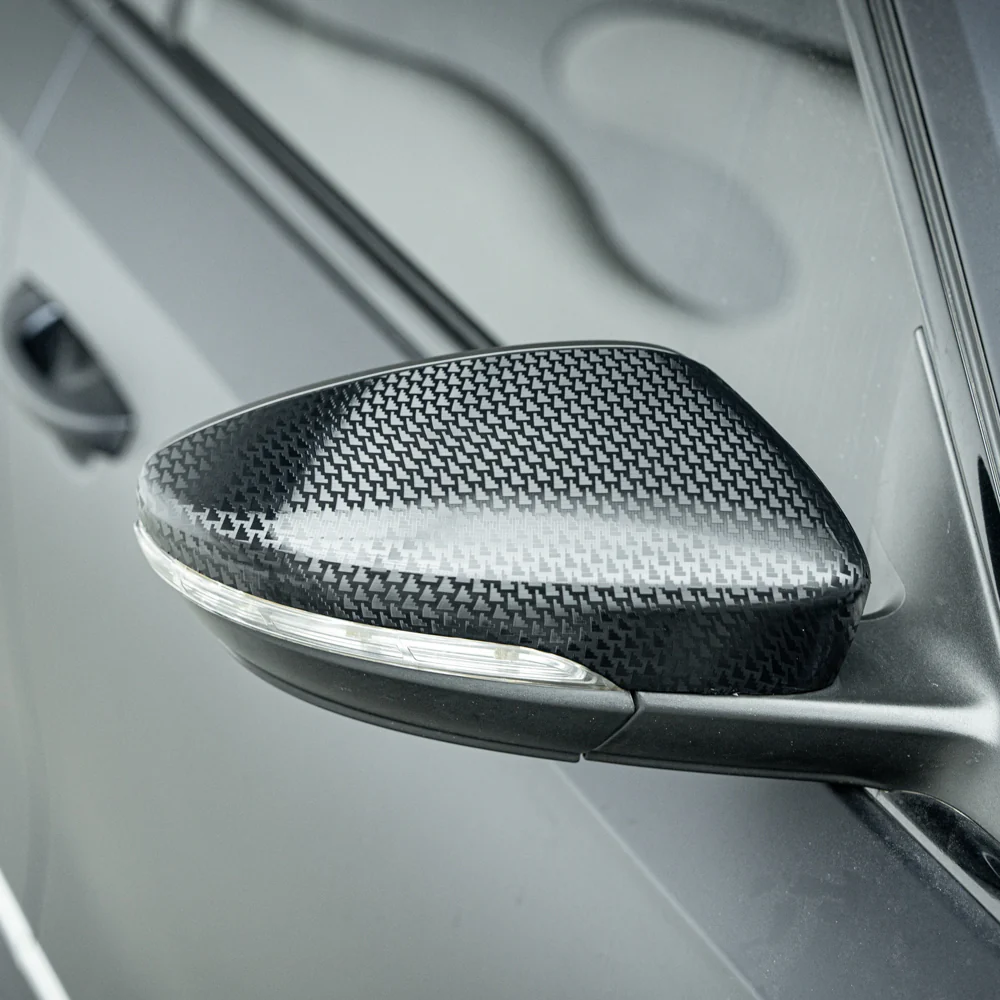

The film works across full exterior panels, complete car wraps, and interior trim surfaces. The 30% stretch handles compound curves on hoods, bumpers, mirror caps, and pillar sections without flattening the embossed texture at the edges.
Features And Specifications
- Pattern: 3D embossed carbon fiber each fiber crossing point is physically raised above the surface, forming small diamond shapes at every intersection. The depth comes from shadow at the raised crossings, not from printed contrast or gloss reflection.
- Color: Deep black.
- Finish: Matte holds the dimensional appearance in all lighting conditions, including diffuse light and overcast where gloss reflection disappears.
- Durability: Rated for 3 years on exterior vertical surfaces.
- Weatherproof: Resists moisture, humidity, and prolonged water exposure without lifting or bubbling.
- Protective: Guards against surface corrosion, minor abrasions, and everyday staining.
- Temperature range: Stable from -50°C to 110°C (-58°F to 230°F) in service.

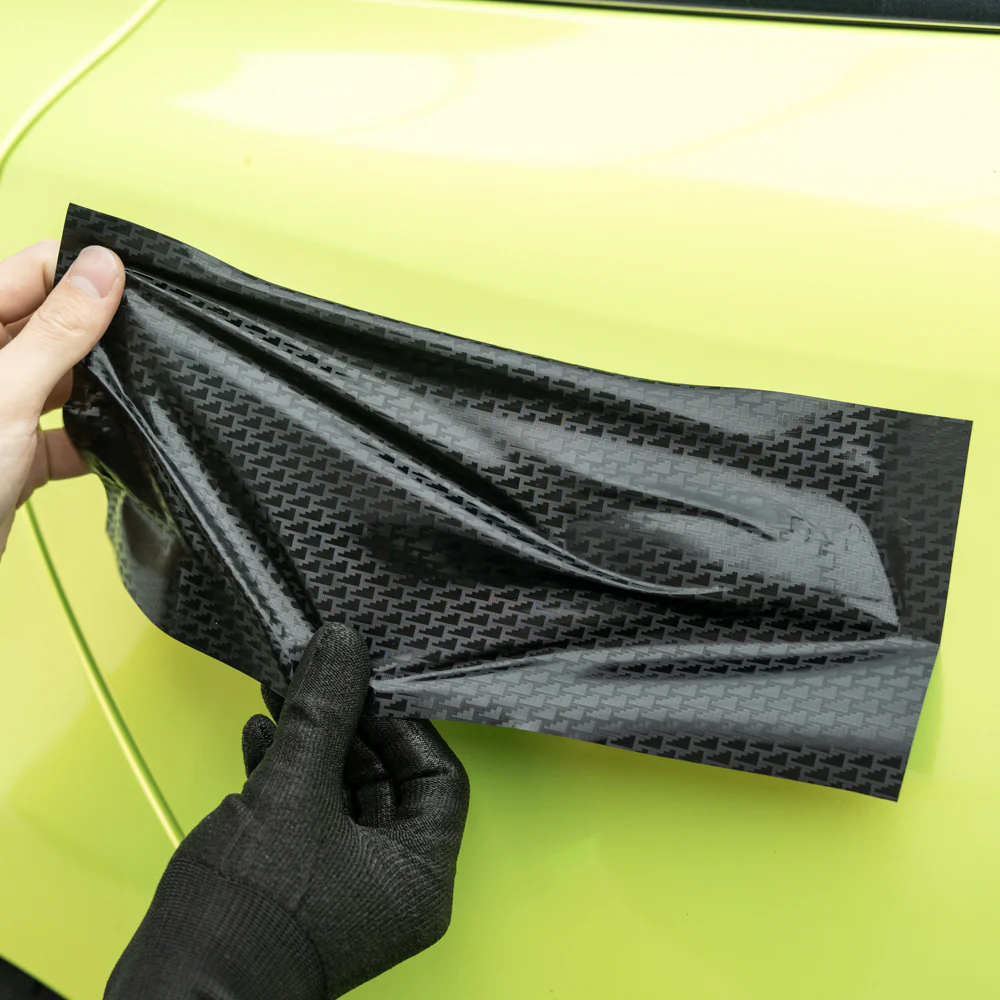

- Stretch: Up to 30% conforms to full panels, hoods, bumpers, and curved surfaces. Staying within the stretch limit preserves the raised diamond structure at the fiber crossings without flattening the emboss.
- Adhesive: Solvent-based acrylic bonds firmly, repositions clean before final press, and removes without leaving residue.

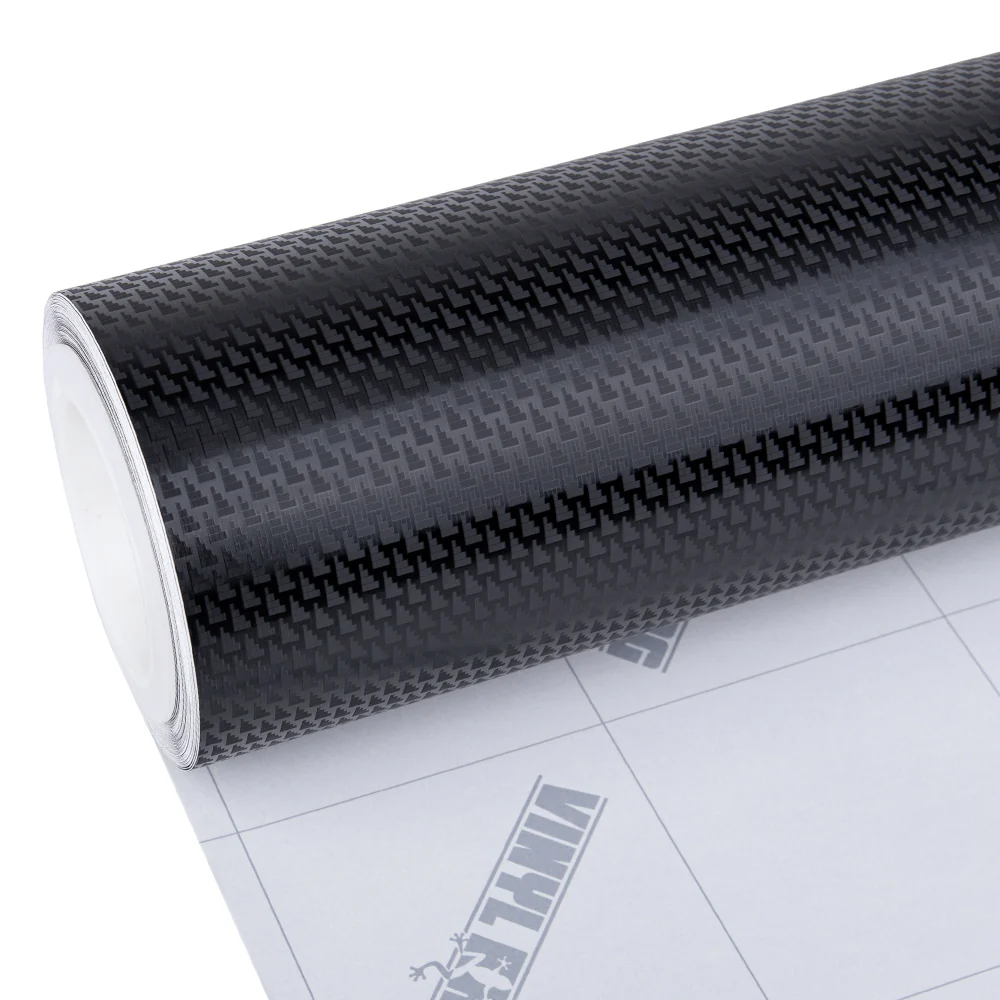

- Installation: Air-release channel liner lets you adjust positioning before committing, reducing waste on complex panels.
Structure
Material
- Made from high-quality vinyl for durability.
-
Bright, eye-catching color.
-
Air release channel for a smooth application.
- No bubbles for a smooth finish.
-
Repositionable and slideable for easy adjustments.
Medium Stretchable
The Maximum is 30 %
Functions
Standard Size & Appearance
Physical properties
CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
Recommendations
Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents
Durability
The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.
Important Notice
The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.
Warranty, Limited Remedy, and Disclaimer
Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.
Limitation of Liability
Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
CAUTION!
1. We will peel off the protection layer before shipment if your order is 1m,3m or 5m in order to make the vinyl good for shipping.
2. The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
3. Most vinyl wraps are directional. Install the vinyl in the same direction across all panels. Applying the material in different directions can cause visible color differences due to light reflection.
Original: $39.00
-65%$39.00
$13.65More Images
