Shadow Forged Matte Black Carbon Fiber Vinyl Wrap

Shadow forged black carbon fiber vinyl wrap uses a matte finish over a pattern of large, angular carbon fiber shards where each shard face catches or blocks ambient light at a different angle. There is no shimmer coat, yet the surface produces strong contrast between sections deep black where light is absorbed, silver where it redirects off the shards faces. The effect shifts as the viewing angle changes.

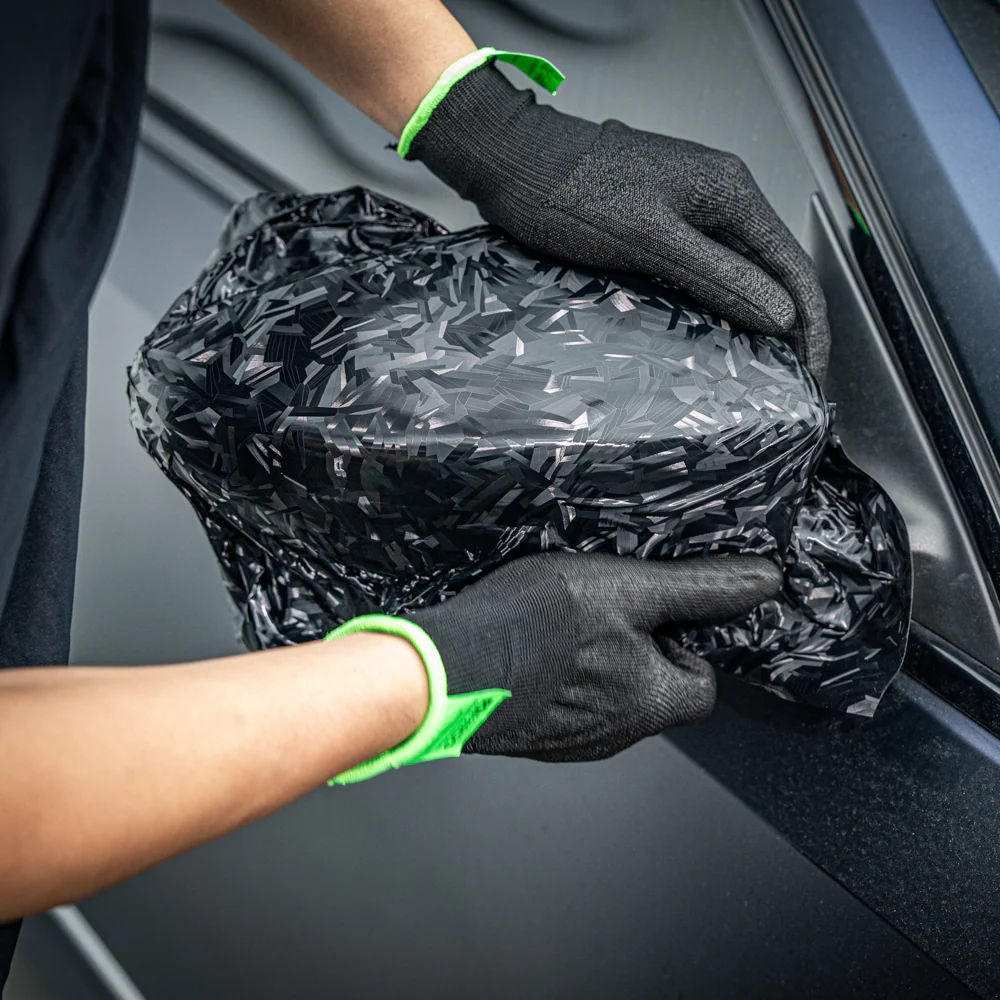

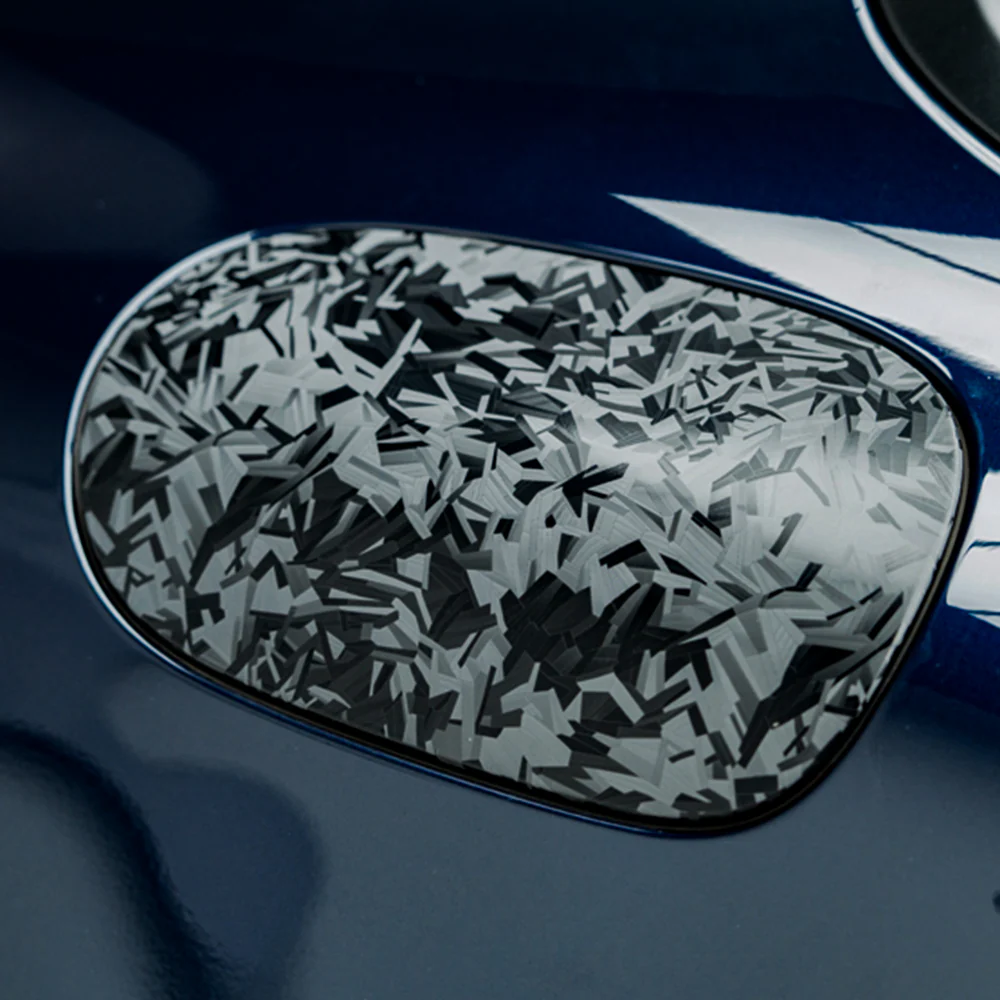

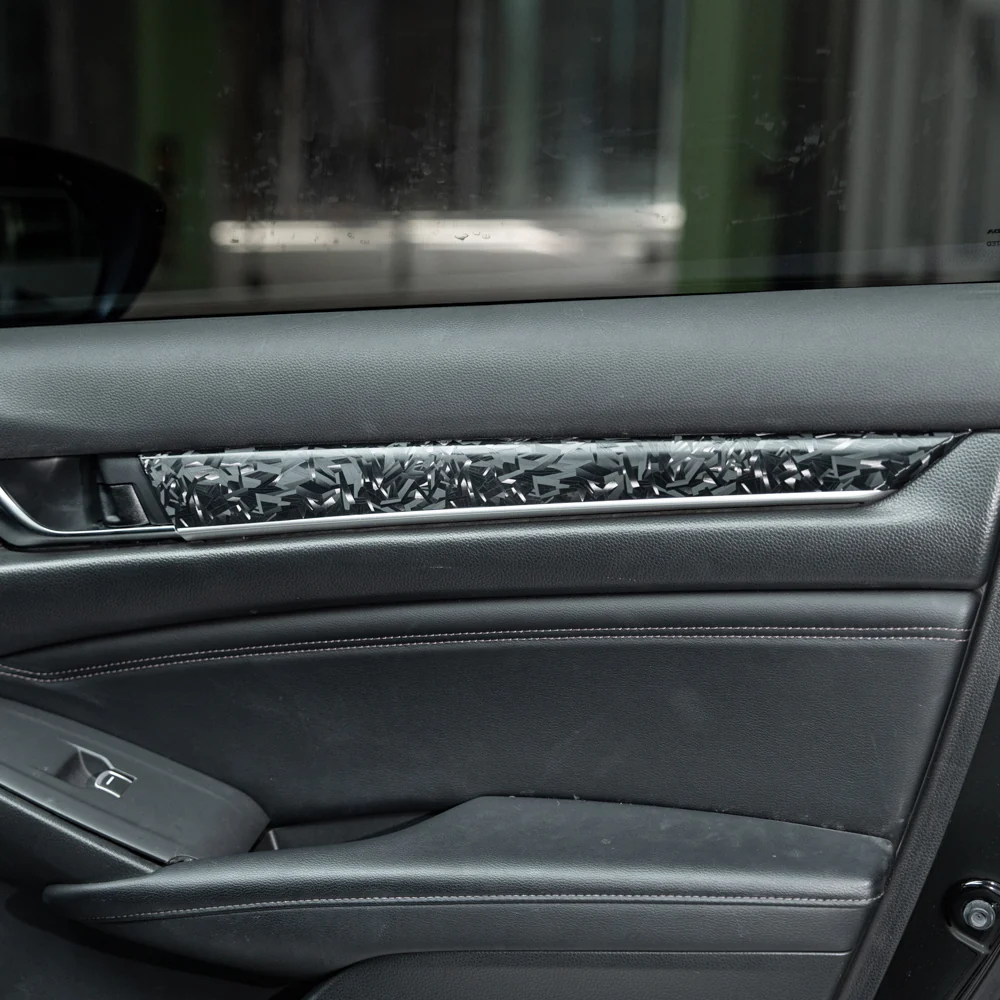

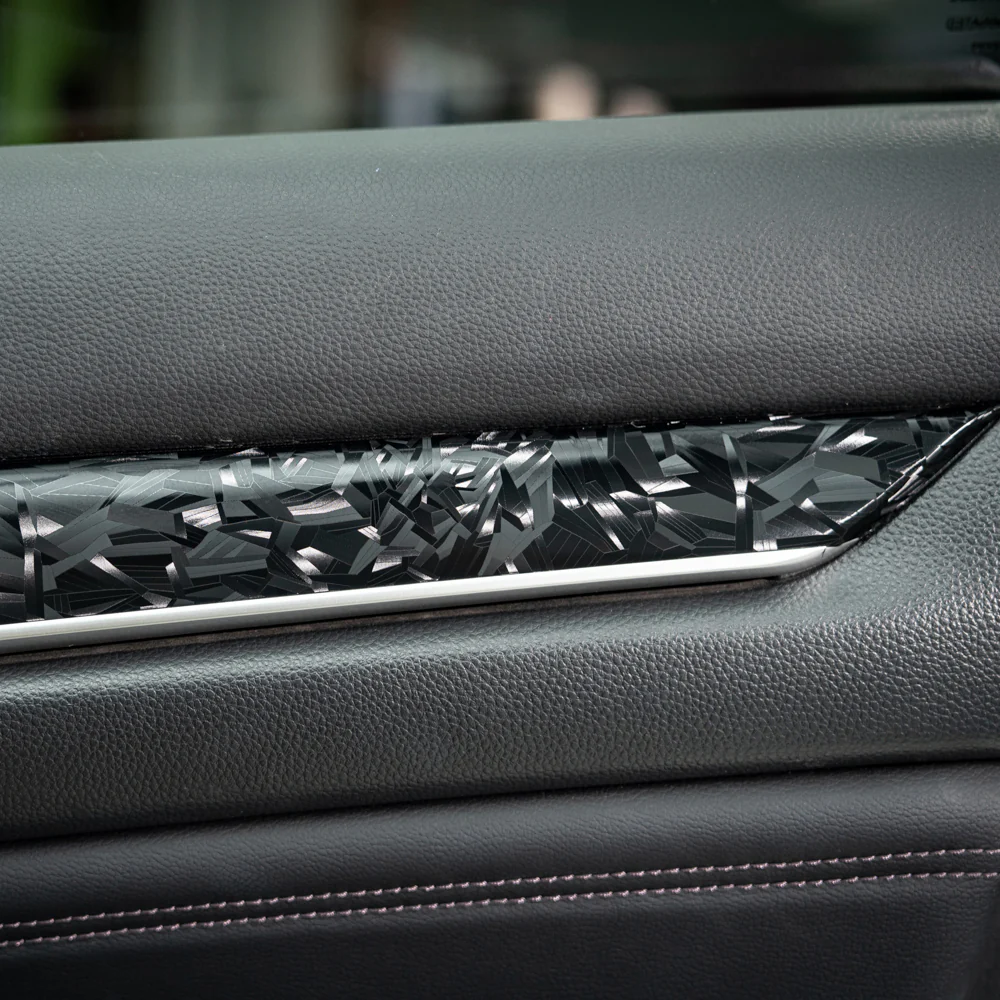

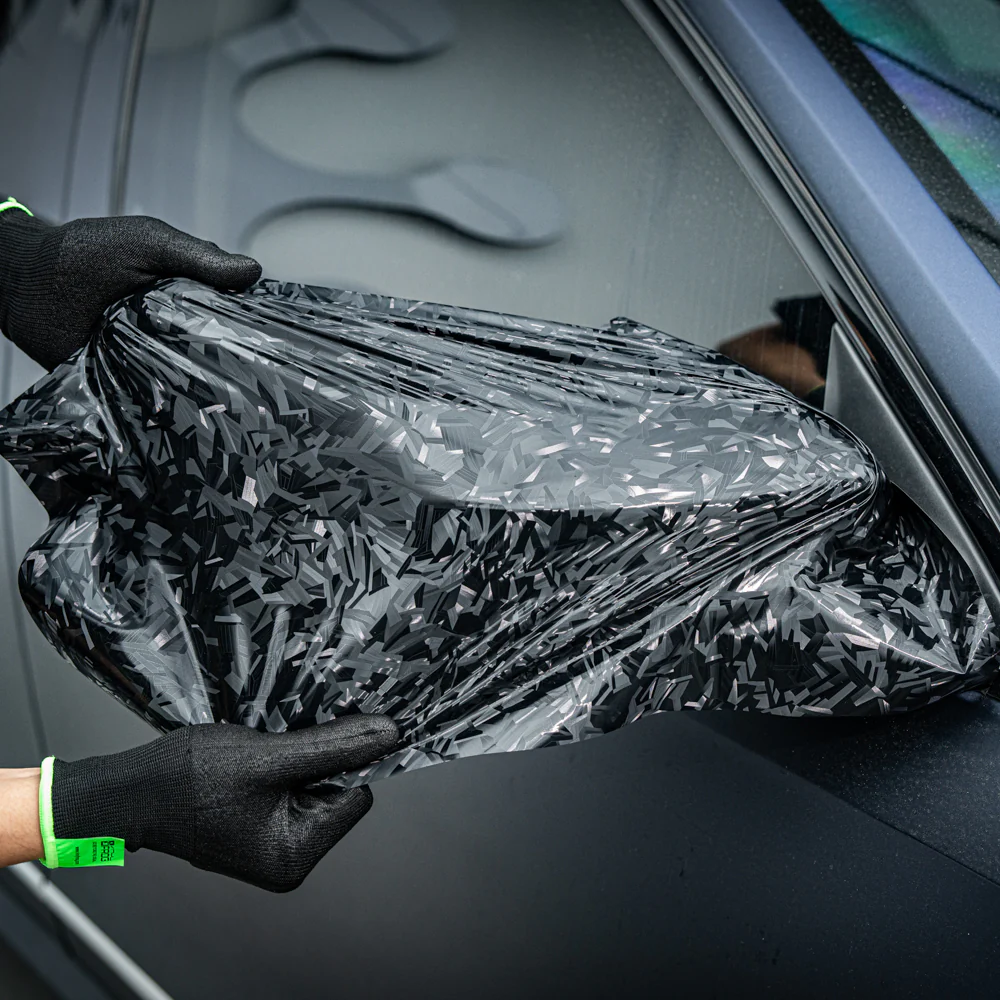

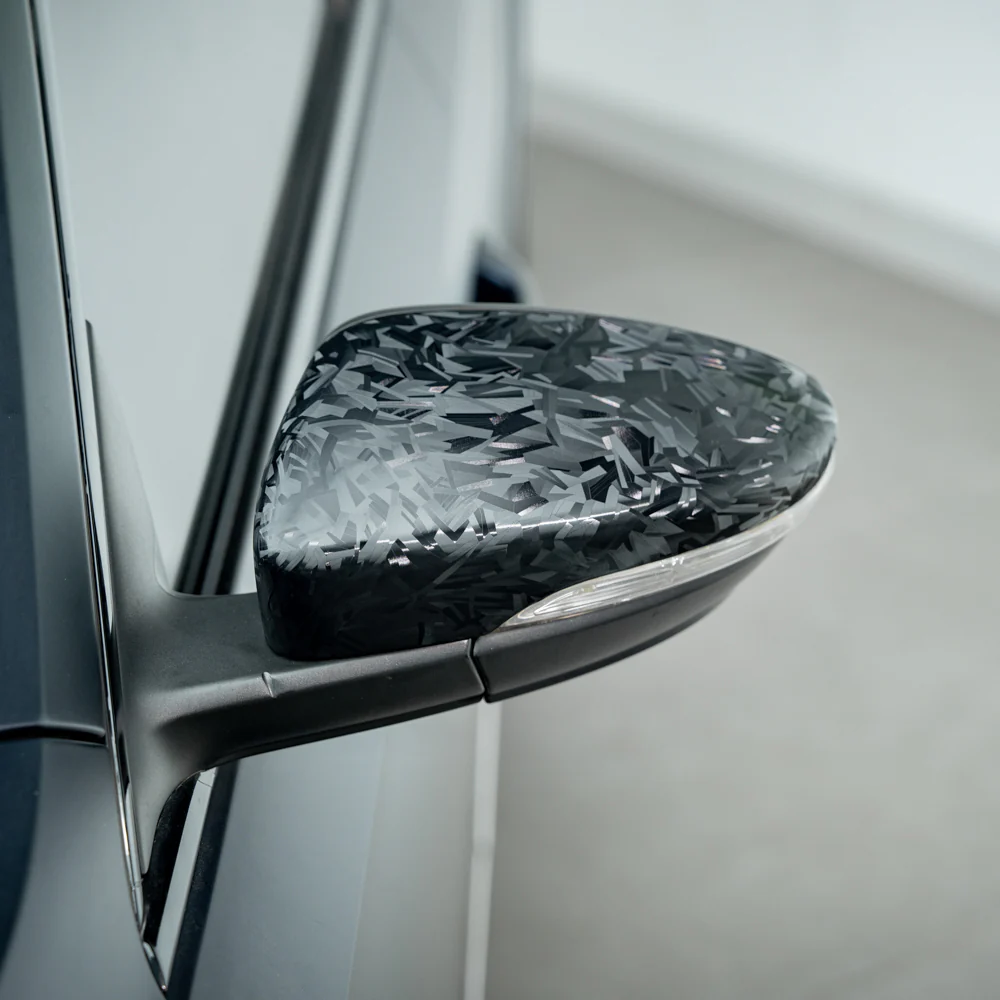

The film works across full exterior panels, complete car wraps, and interior trim surfaces. The 30% stretch handles compound curves on bumpers, mirror caps, and pillar sections without distorting the fragment pattern. The solvent-based acrylic adhesive with air-release liner lets you align the pattern before applying final pressure.

Features And Specifications

• Pattern: Shadow forged carbon fiber large angular shards oriented in multiple directions, each face catching or absorbing light independently with no repeating structure across the surface.

• Color: Deep black with shifting dark-to-silver contrast depending on viewing angle.

• Finish: Matte fully muted surface with no shimmer or gloss coat.

• Durability: Rated for 3 years on exterior vertical surfaces.

• Weatherproof: Resists moisture, humidity, and prolonged water exposure without lifting or bubbling.

• Protective: Guards against surface corrosion, minor abrasions, and everyday staining.

• Temperature range: Stable from -50°C to 110°C (-58°F to 230°F) in service.

• Stretch: Up to 30% conforms to full panels, hoods, bumpers, and curved surfaces without distorting the shard pattern.

• Adhesive: Solvent-based acrylic — bonds firmly, repositions clean before final press, and removes without leaving residue.

• Installation: Air-release channel liner lets you adjust positioning before committing, reducing waste on complex panels.



Structure

Material

• High-Grade Polymeric Calendared Vinyl Film

• Fashionable, Stunning Color

• Air Release Channel for Easy Application

• Bubble-Free Application

• Slideable and Repositionable for Perfect Placement


Medium Stretchable

The Maximum is 30 %

Functions

Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Surface materials	um	120±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2 (paper)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	5ft
Length		mm	1800±1%	59ft

Physical properties

Features		Test Method	Results
Release force N/25mm		Temperature 25℃ and Humidity 50%	0.23
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	850
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.51
Holding power(h)		25℃ and 50%, GB/T4851-1998	120
Shelf life		stored in +15°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Service temperature		/	-50℃ to +110℃
Time limits		Must use it within 3 months after receiving the wrap film	3 months
Durability		Vertical exposure (Black)	3 years
Durability		Vertical exposure (Colors)	2 years
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

Recommendations

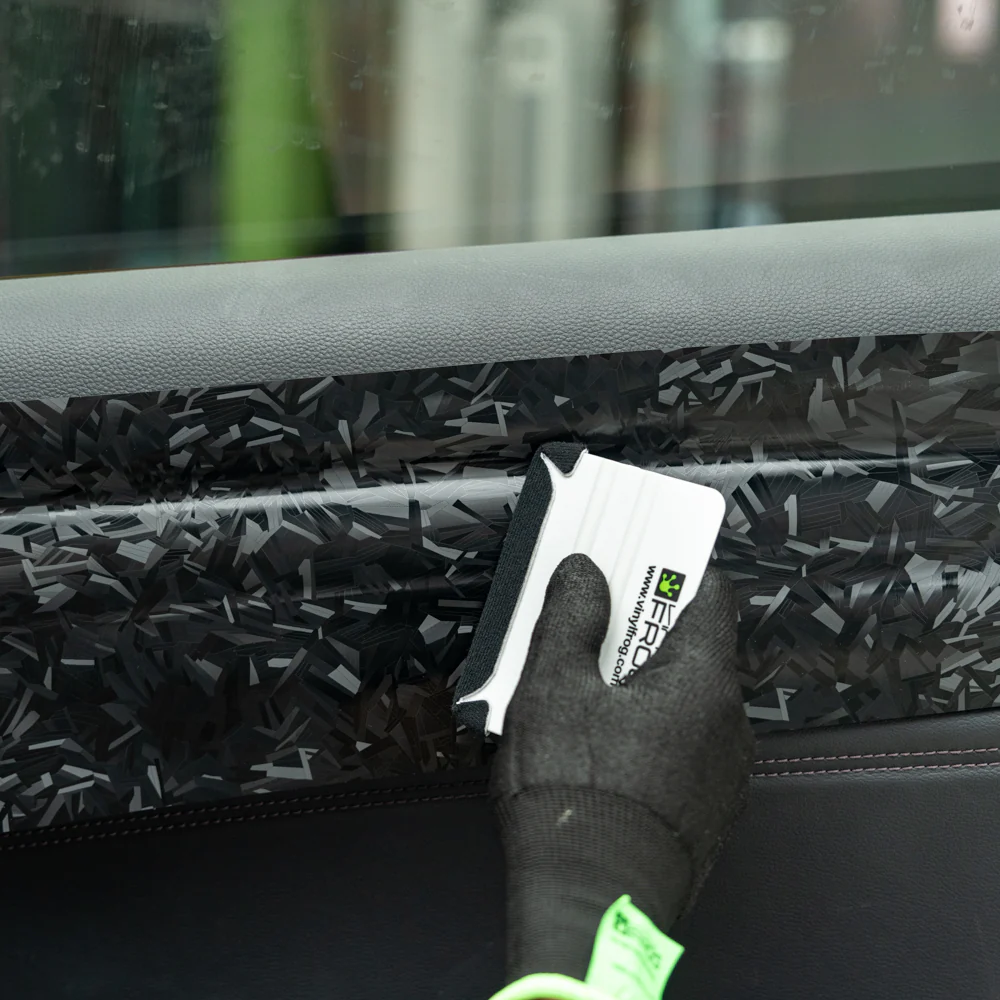

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

Durability

The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.

Important Notice

The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

Warranty, Limited Remedy, and Disclaimer

Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

Limitation of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

CAUTION!

 1. We will peel off the protection layer before shipment if your order is 1m,3m or 5m in order to make the vinyl good for shipping.

 2. The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

3. Most vinyl wraps are directional. Install the vinyl in the same direction across all panels. Applying the material in different directions can cause visible color differences due to light reflection.
