Black Forged Carbon Fiber Vinyl Wrap

Black Forged Carbon Fiber Vinyl Wrap

Black forged carbon fiber vinyl wrap delivers the non-repeating, compressed-fiber texture of genuine forged carbon composite on any panel you apply it to. Unlike standard 2×2 twill weave carbon, which repeats the same diagonal grid across every section, forged carbon has no fixed pattern. The fiber bundles orient randomly, so each part of the wrap reads differently under light. That is the defining visual of real forged carbon material, the kind used in high-performance supercar body panels and structural motorsport components.

Application works across exterior panels and interior trim. With up to 30% stretch, the film conforms to door mirrors, A-pillars, bumper curves, and console surfaces without thinning at the edges. The air-release channel liner lets you reposition before committing final pressure, which keeps waste low on complex curves.

Features And Specifications:

  • Pattern: Forged carbon fiber random fiber orientation with no repeating grid, so every panel reads differently under light.
  • Color: Deep black.
  • Durability: Rated for 3 years on exterior vertical surfaces.
  • Weatherproof: Resists moisture, humidity, and prolonged water exposure without lifting or bubbling.
  • Protective: Guards against surface corrosion, minor abrasions, and everyday staining.
  • Temperature range: Stable from -50°C to 110°C (-58°F to 230°F) in service.
  • Stretch: Up to 30%  enough for door mirrors, A-pillars, bumper edges, and tight interior curves without thinning.
  • Adhesive: Solvent-based acrylic bonds firmly, repositions clean before final press, and removes without leaving residue.
  • Installation: Air-release channel liner lets you adjust positioning before committing, which reduces waste on complex panels.



Video

Structure


Material

  • Made with high-grade polymeric calendared vinyl for durability.
  • Comes in a fashionable, stunning color that stands out.
  • Features an air release channel for smoother application.
  • Bubble-free application for a flawless finish.
  • Slideable and repositionable, so you can adjust it easily.

Medium Stretchable

The Maximum is 30 %

Functions


Standard Size & Appearance

Classification Unit Spec Remark
Thickness Top protected film um 36±2% PET
Surface materials um 120±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2 (paper)
Surface Opaque
Width mm 1520±0. 01% 5ft
Length mm 1800±1% 59ft


Physical properties

▲ General Properties

Features Test Method Results
Release force
N/25mm
Temperature 25℃ and Humidity 50% 0.23
Initial tack
g/25mm
under 26℃ and 64%, GB31125-2014 850
Peel Strength
N/25mm
25℃and 42%, GB/T2792-1998 7.51
Holding power(h) 25℃ and 50%, GB/T4851-1998 120
Shelf life stored in +15°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Application temperature / +20℃ to +30℃
Service temperature / -50℃ to +110℃
Time limits Must use it within 3 months after receiving the wrap film 3 months
Durability Vertical exposure (Black) 3 years
Durability Vertical exposure (Colors) 2 years
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!

 1. We will peel off the protection layer before shipment if your order is 1m,3m or 5m in order to make the vinyl good for shipping.

 2. The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

3. Most vinyl wraps are directional. Install the vinyl in the same direction across all panels. Applying the material in different directions can cause visible color differences due to light reflection.

Select Size
From $13.65

Original: $39.00

-65%
Black Forged Carbon Fiber Vinyl Wrap

$39.00

$13.65

More Images

Black Forged Carbon Fiber Vinyl Wrap - Image 2
Black Forged Carbon Fiber Vinyl Wrap - Image 3

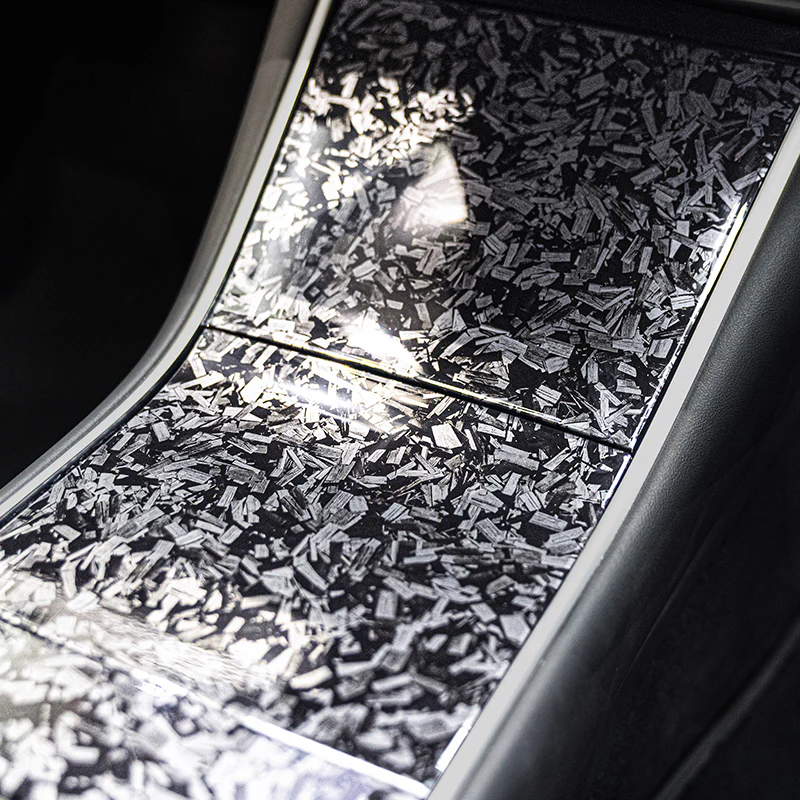

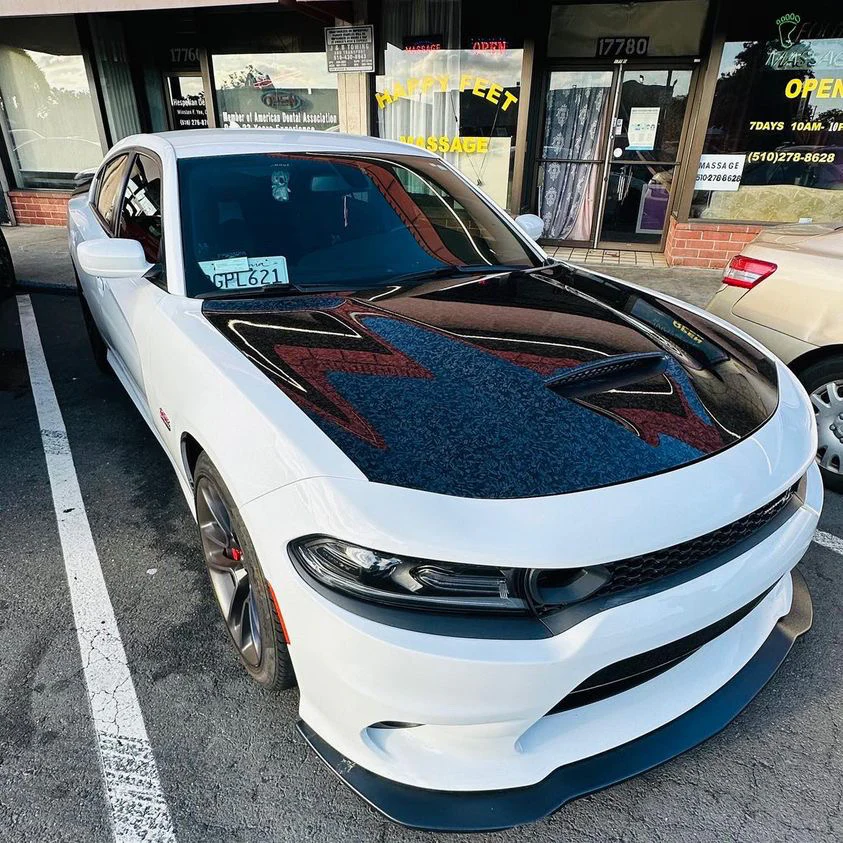

Black Forged Carbon Fiber Vinyl Wrap - Image 4
Black Forged Carbon Fiber Vinyl Wrap - Image 5

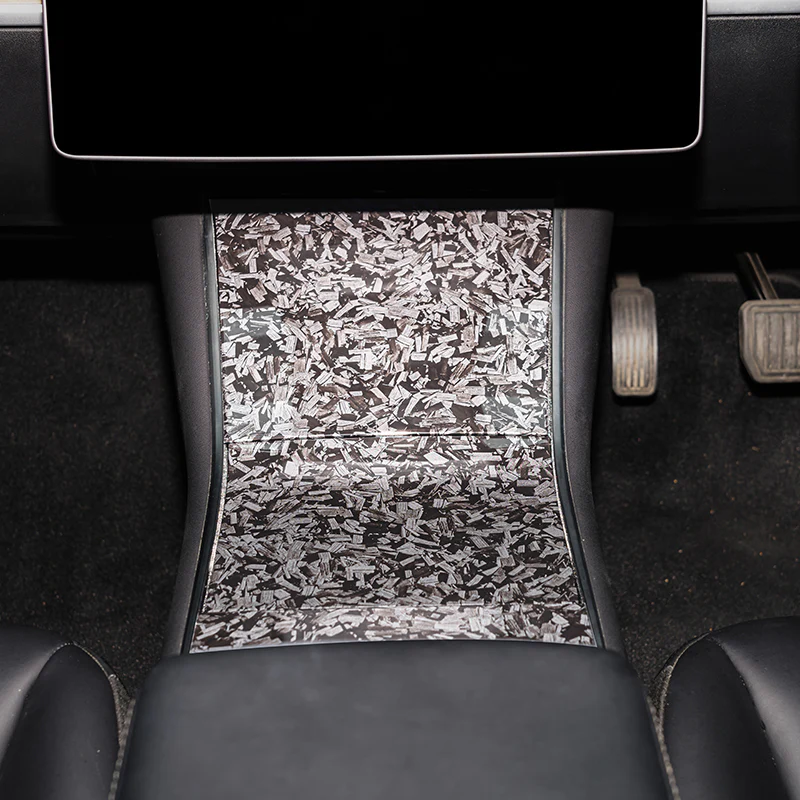

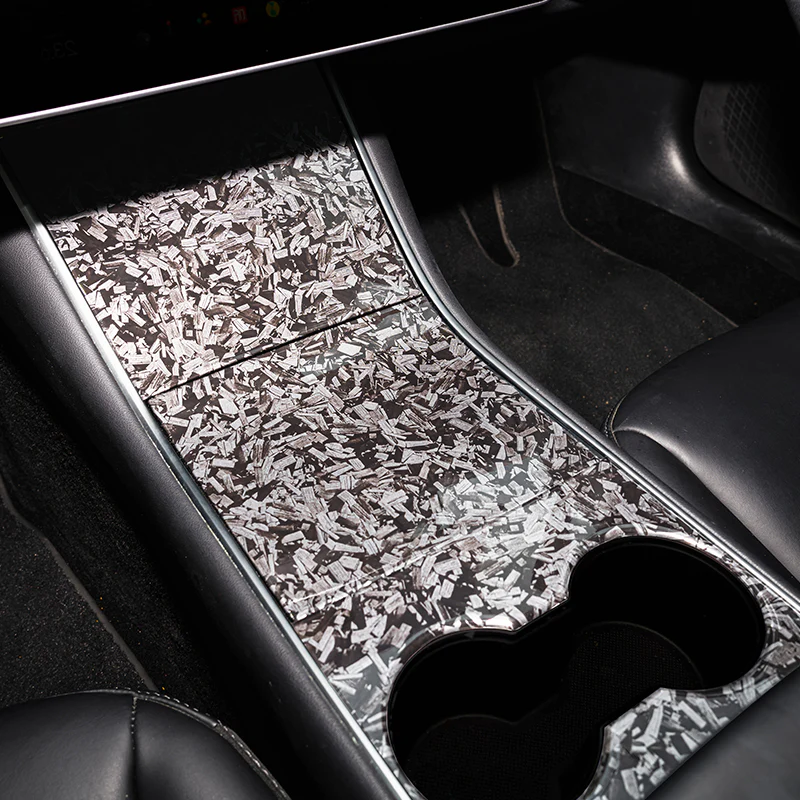

Black Forged Carbon Fiber Vinyl Wrap - Image 6

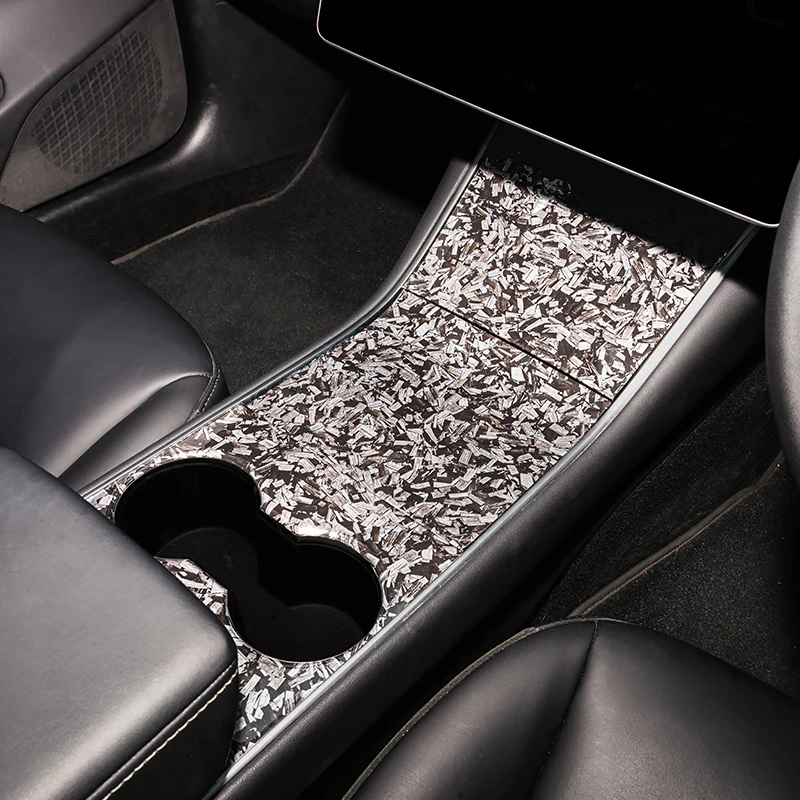

Black Forged Carbon Fiber Vinyl Wrap - Image 7

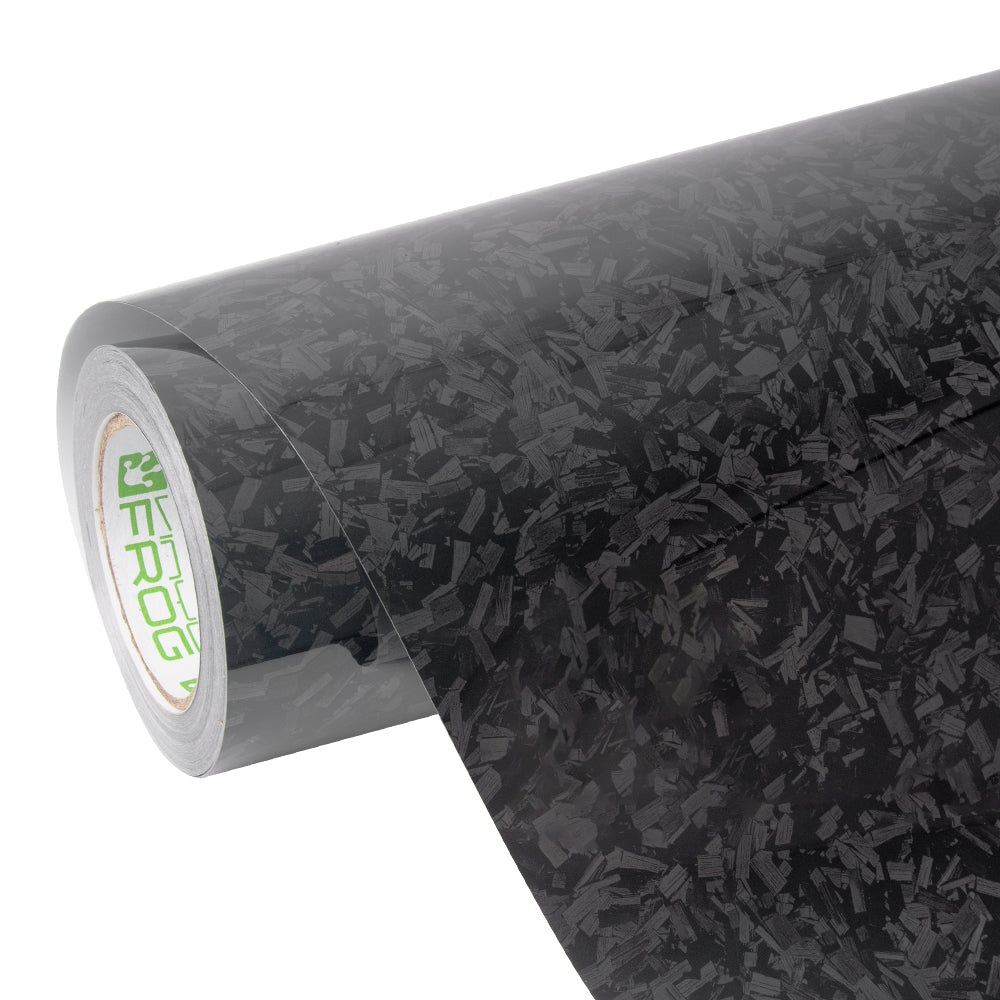

Black Forged Carbon Fiber Vinyl Wrap - Image 8

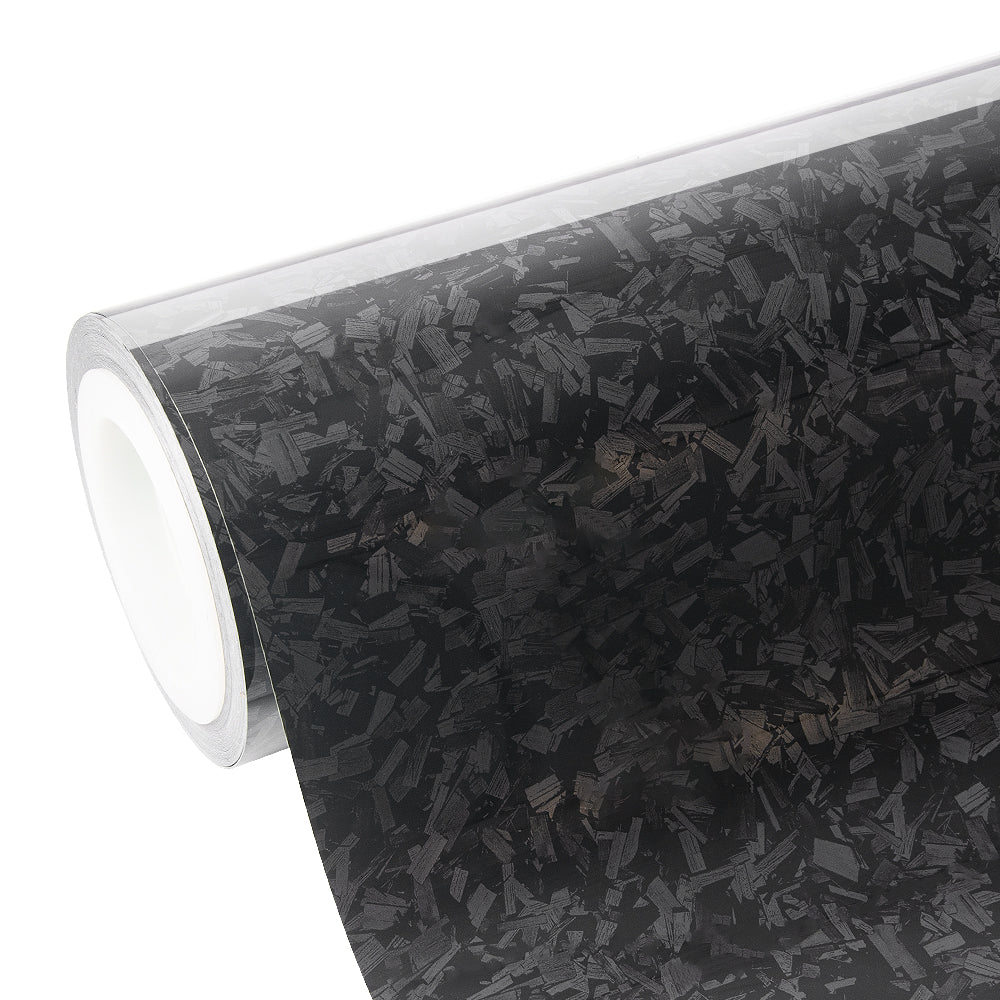

Black Forged Carbon Fiber Vinyl Wrap - Image 9
Black Forged Carbon Fiber Vinyl Wrap - Image 10

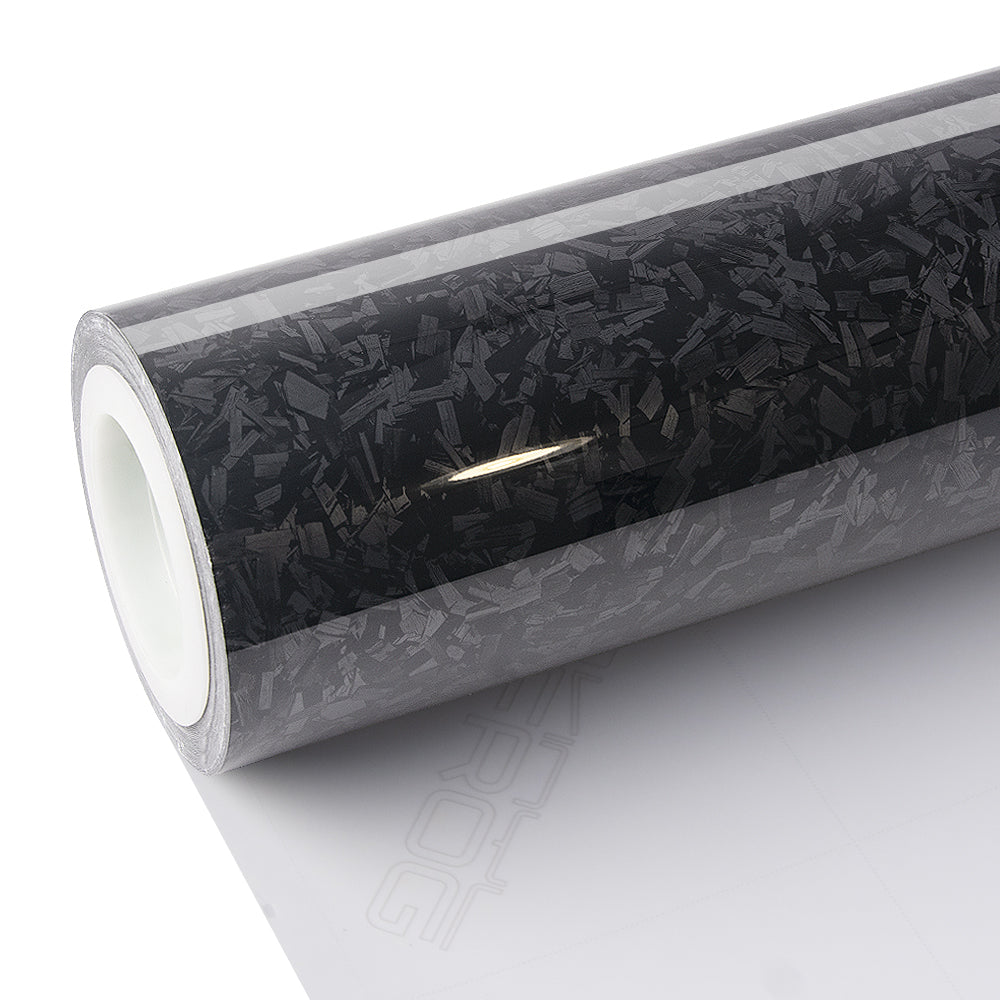

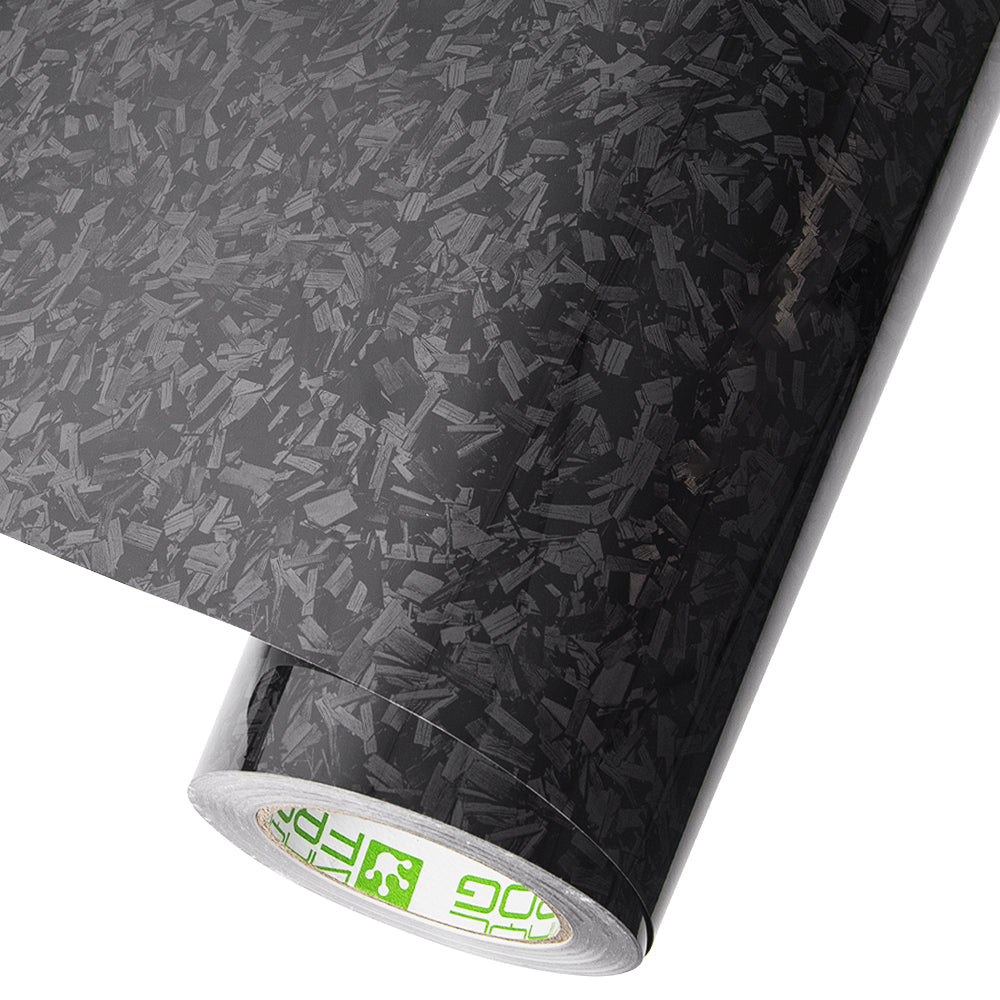

Black Forged Carbon Fiber Vinyl Wrap - Image 11
Black Forged Carbon Fiber Vinyl Wrap - Image 12

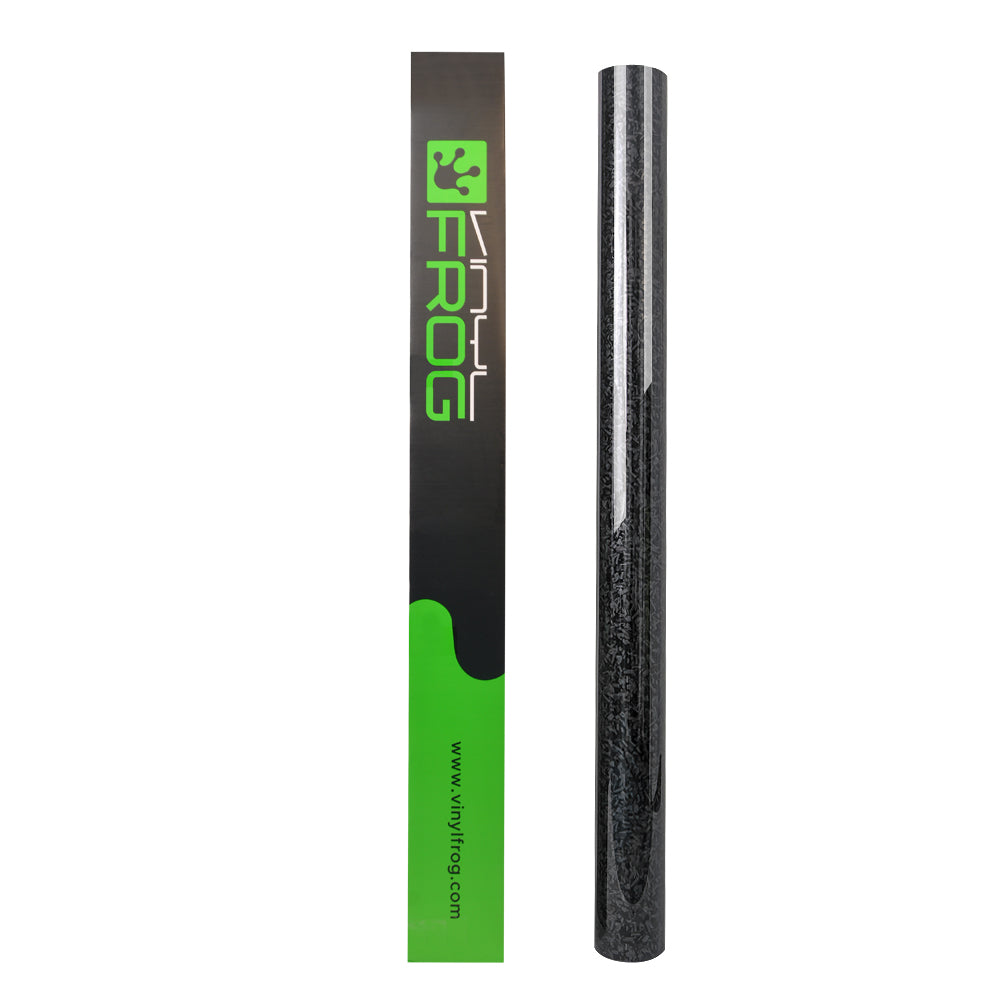

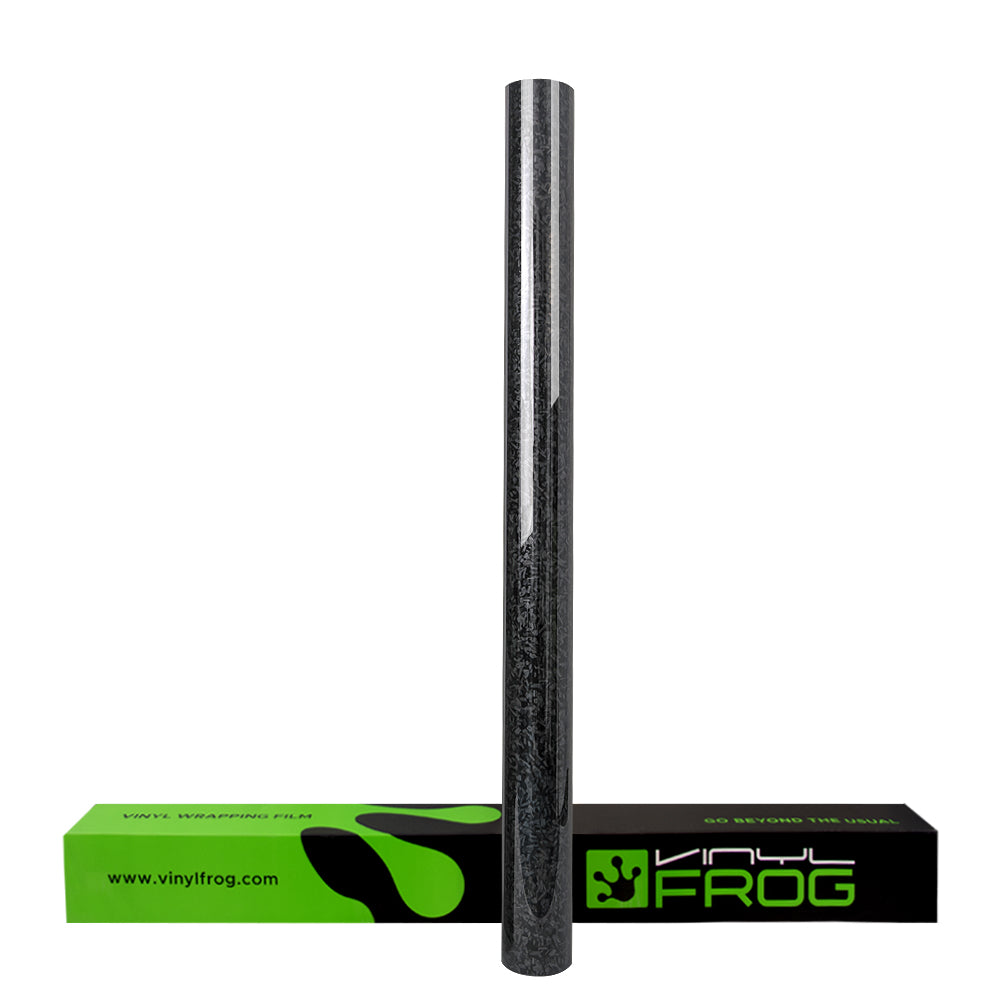

Black Forged Carbon Fiber Vinyl Wrap - Image 13

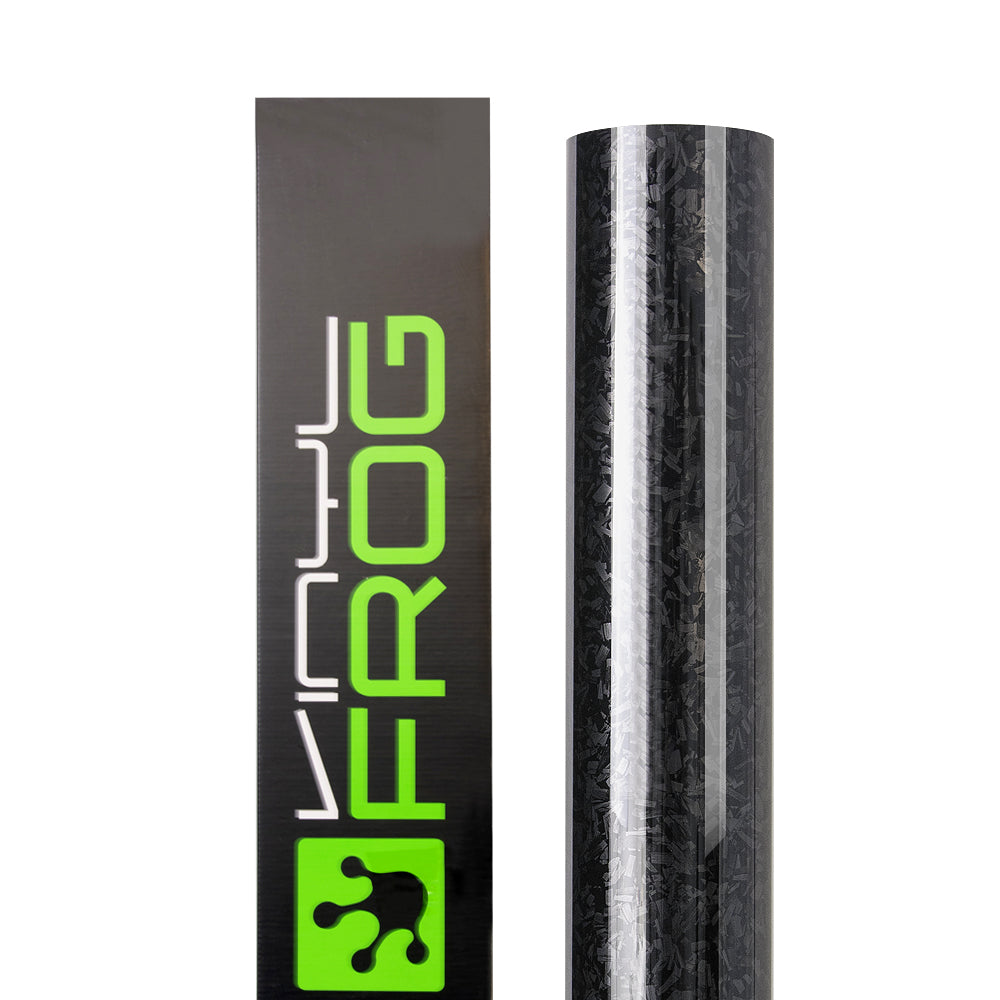

Black Forged Carbon Fiber Vinyl Wrap - Image 14
