2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner

2 in 1 Light Black & Clear Holographic Honeycomb Headlight Film Kit with Air Channel Paper Liner pairs two headlight films with the same honeycomb texture, a fully clear roll and a light black roll. The clear one lets through about 92% of light and the light black one about 81%, so the whole kit stays on the lighter end, with no deep black option in this particular set.

Features and Specifications

• Finish: Smooth, glossy holographic finish with distinct honeycomb pattern

• Durability: Premium, long-lasting, and high-performance film

• Protection: UV-resistant, heat-resistant, stain-resistant, and scratch-resistant

• Waterproof: Water and weatherproof

• Adhesive: Acrylic-based, repositionable ultra-clear adhesive

• Installation: Equipped with air-release channels for bubble-free and crease-free application

• Application: Dry application provides better results

• Protective layer: Top protective film included

• Self-healing: Features self-healing technology

• Liner: Air channel paper liner included

• Maintenance: Easy to apply and clean

• Eco-friendly: High-grade tint, environmentally safe

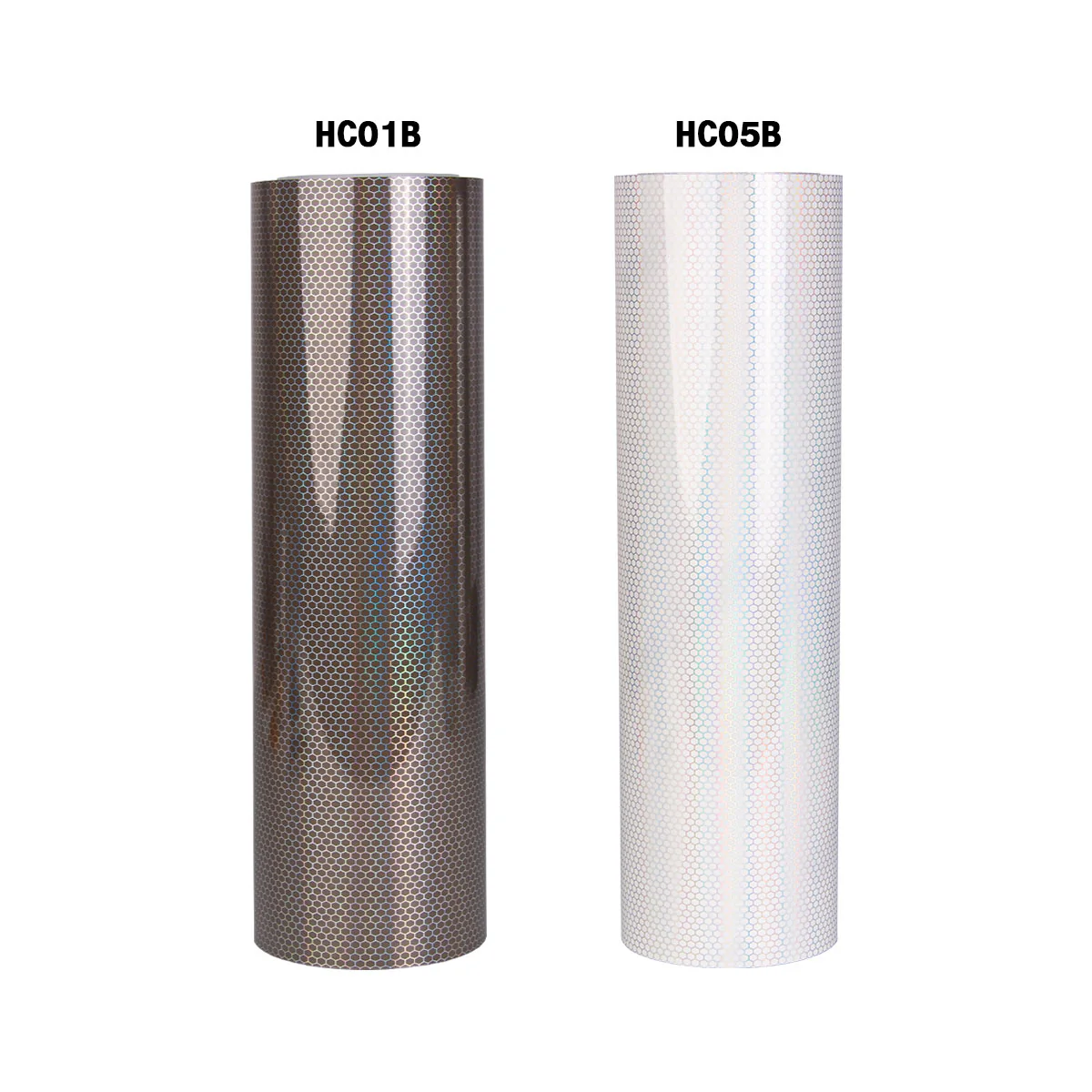

• Set of 2 Colors: Light Black, Clear/Transparent

• Size: 32ft (L) x 1.3ft (W) per roll

• Lifetime: 2 years (based on vertical exposure)

• Applications: Automotive, architectural, marketing, indoor and outdoor

• Pattern: Honeycomb

• Packaging: Roll

• Application Method: Dry application provides better results

Structure

Composed of 4 layers:

• Top Protective Film
• Polymeric Face Film
• Acrylic Adhesive
• Release Liner

Proper Installation

If the headlight surface is clean and undamaged before installation, the wrap adheres evenly and removes smoothly.

Proper Removal Technique

Using gentle heat (like a heat gun or hairdryer) softens the adhesive, making it easier to peel without pulling or tearing the headlight’s factory coating.

Warning

If the headlights are already oxidized, yellowed, or have weak factory coating, peeling the wrap can pull off clear coat or cause flaking.

Video

Physical Properties

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	16um±5	PET
	Face Film	um	100um±5	/
	Acrylic Adhesive	um	20um±2	Solvent-based
	Release liner	um	180um±2%	Paper Liner
Width	-	cm	30/40±0.01%	1.3ft
Length	-	m	10±1%	32ft
Surface	-	/	Glossy	/

Physical Performance

Features		Test Method	Results
Gloss (60°)		GB 8807	92.3
VLT		/	92% (Clear） 81% (Light Black）
Peel Strength N/25mm		180°	15
Self-healing Layer Elongation at Break		GB/T 1040.1	112
Face Film Elongation at Break		GB/T 1040.1	309.5
Tear Strength		GB/T529	92.7 KN/m
Tensile Strength		GB/T 1040.1	21.6 Mpa
100% Modulus		GB/T 1040.1	9.1 Mpa
Anti-yellowing		/	ΔE< 1.2
Adhesive residue		/	＜3%
Release force (N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.16
Initial tack (g/25mm)		under 24℃ and 26%, GB31125-2014	860
180° Peel Strength (N/25mm)		10 - 13	12
Holding power(h)		paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998	48H No Peeling
Aging Test		65℃ and 7 days	No adhesive residue under 20 times wrapping
Application Temperature		/	+20℃ to +30℃
Service Temperature		/	-50℃ to +110℃
Recommended Shelf Life		72°F (22°C) and 50% RH	2 year
Durability		/	2 year
Time limits		Must use it within 3 months after receiving the wrap film	3 months



Shelf Life

2 years from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. The optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Important Notice

Information on physical and chemical characteristics and values in this document are based upon tests we believe to be reliable and do not constitute a warranty. They are intended only as a source of information and are given without guarantee and do not constitute a warranty. Purchasers should independently determine, prior to use, the suitability of this material to their specific use. All technical data are subject to change. In case of any ambiguities or differences between the English and foreign versions of this document, the English version shall prevail and lead.

Warranty, Limited Remedy, And Disclaimer

Unless an additional warranty is specifically stated on the applicable VinylFrog product packaging or product literature, VinylFrog warrants that each VinylFrog product meets the applicable VinylFrog product specification at the time VinylFrog ships the product.VinylFrog MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the VinylFrog product does not conform to this warranty, then the sole and exclusive remedy is, at VinylFrog’s option, replacement of the VinylFrog product or refund of the purchase price.

Limitation Of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from the VinylFrog product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
