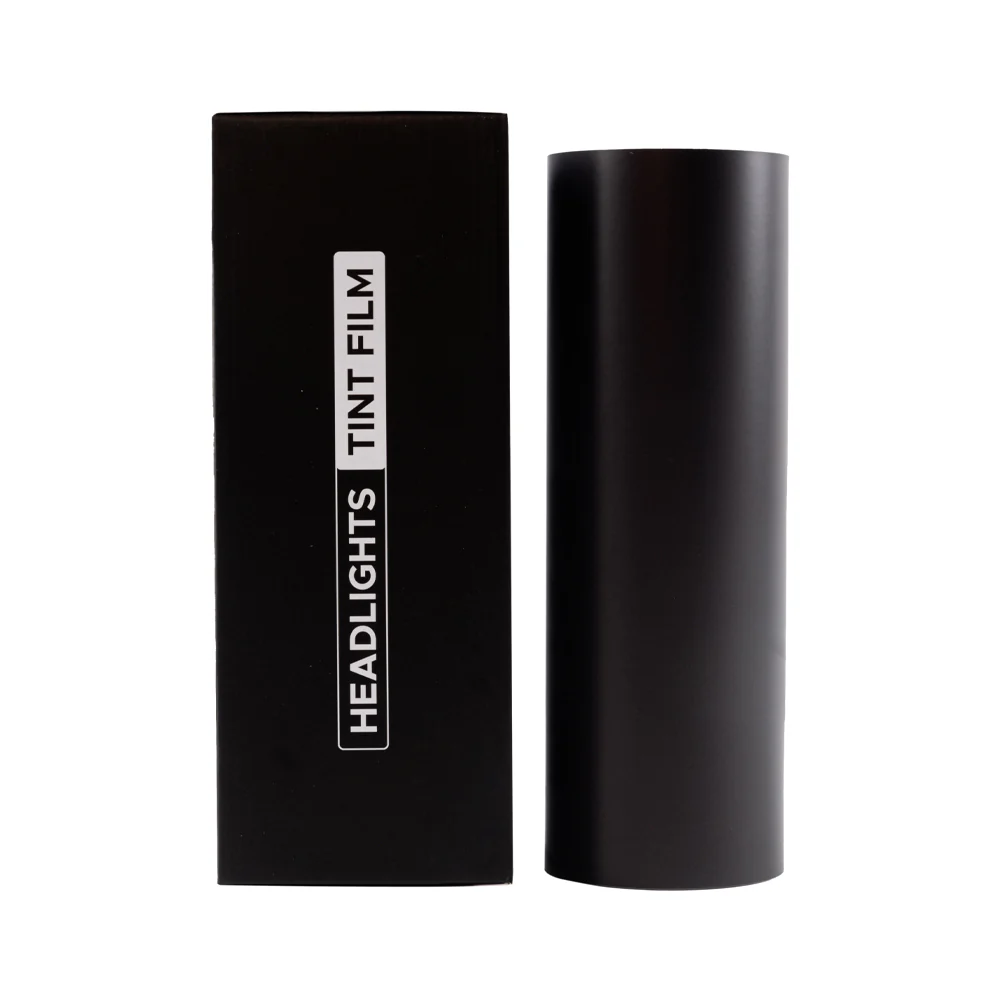

Satin Black Taillight Film with Air Channel Paper Liner

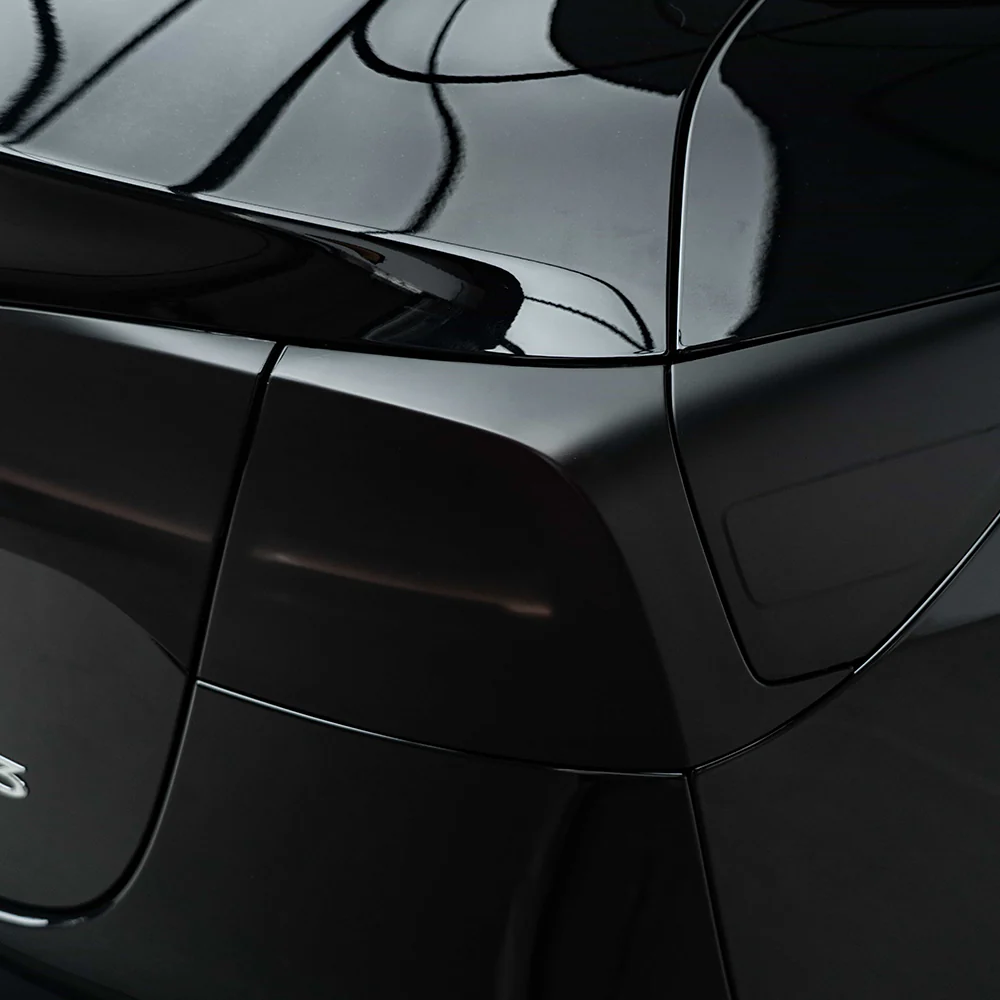

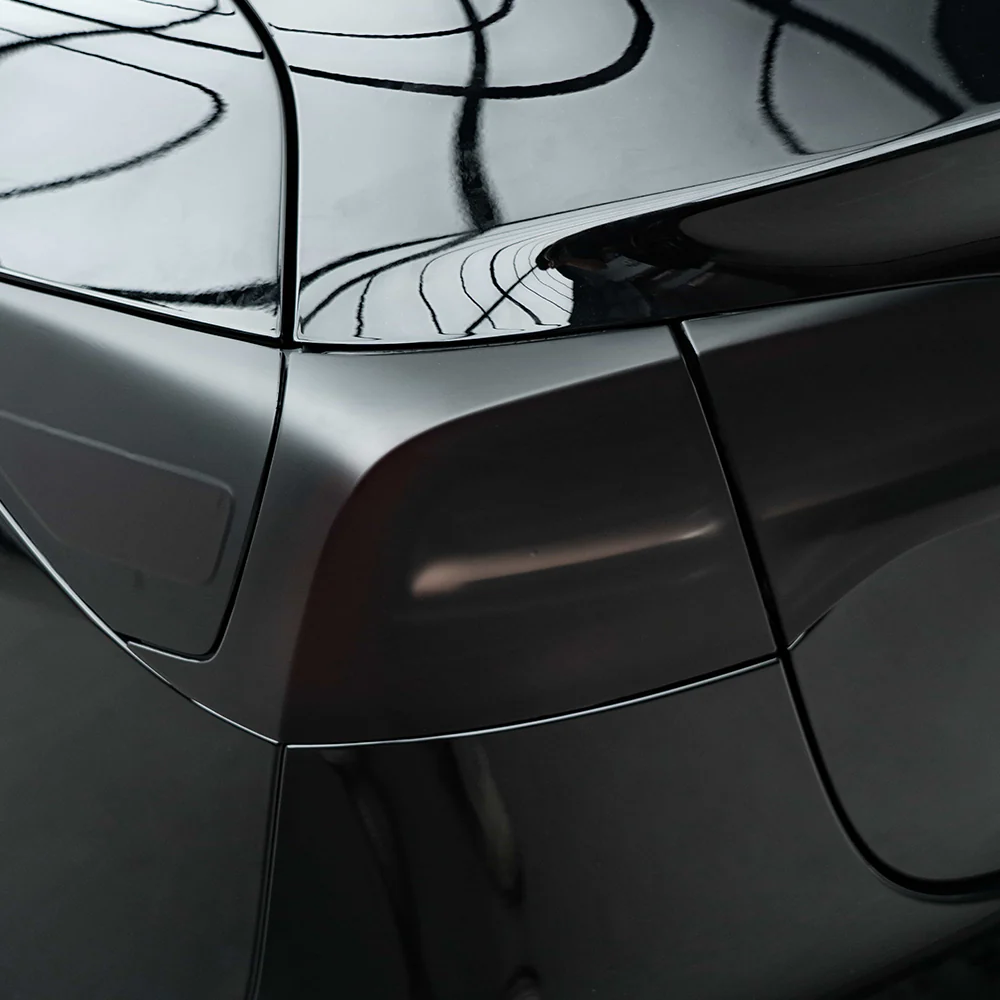

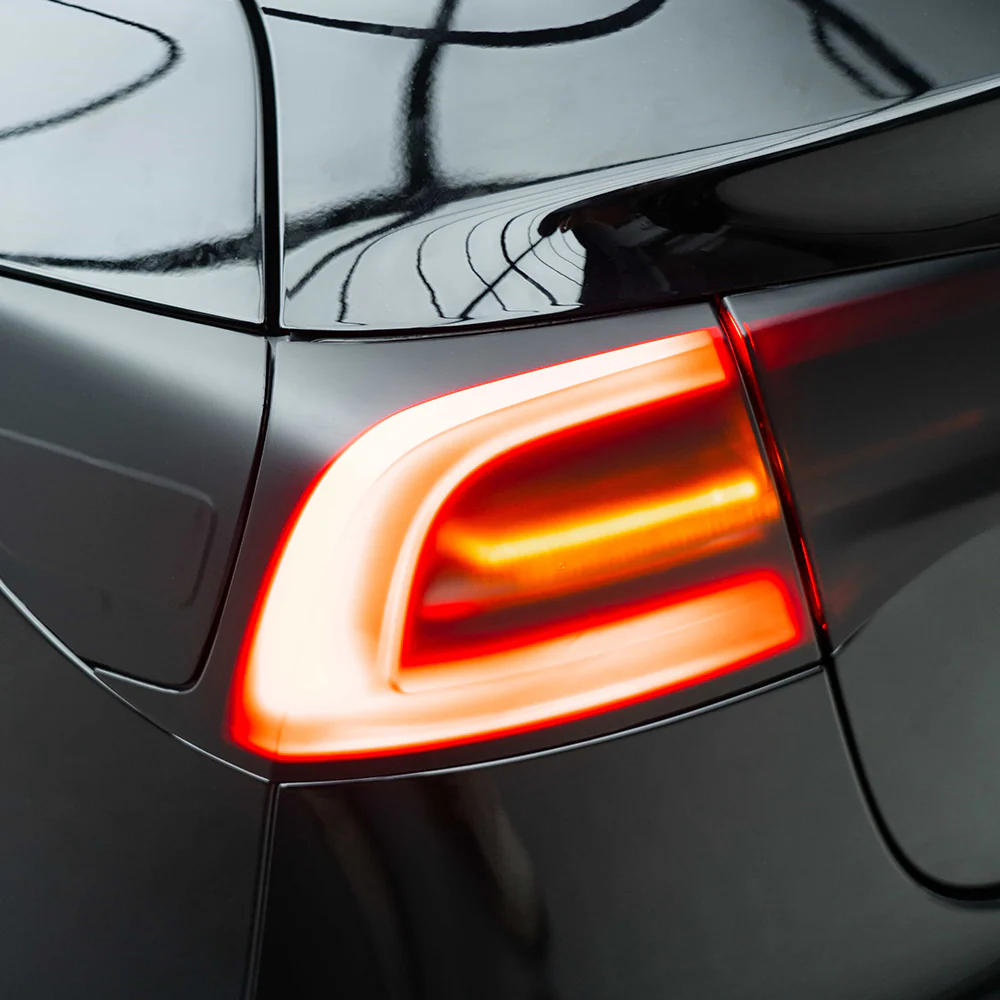

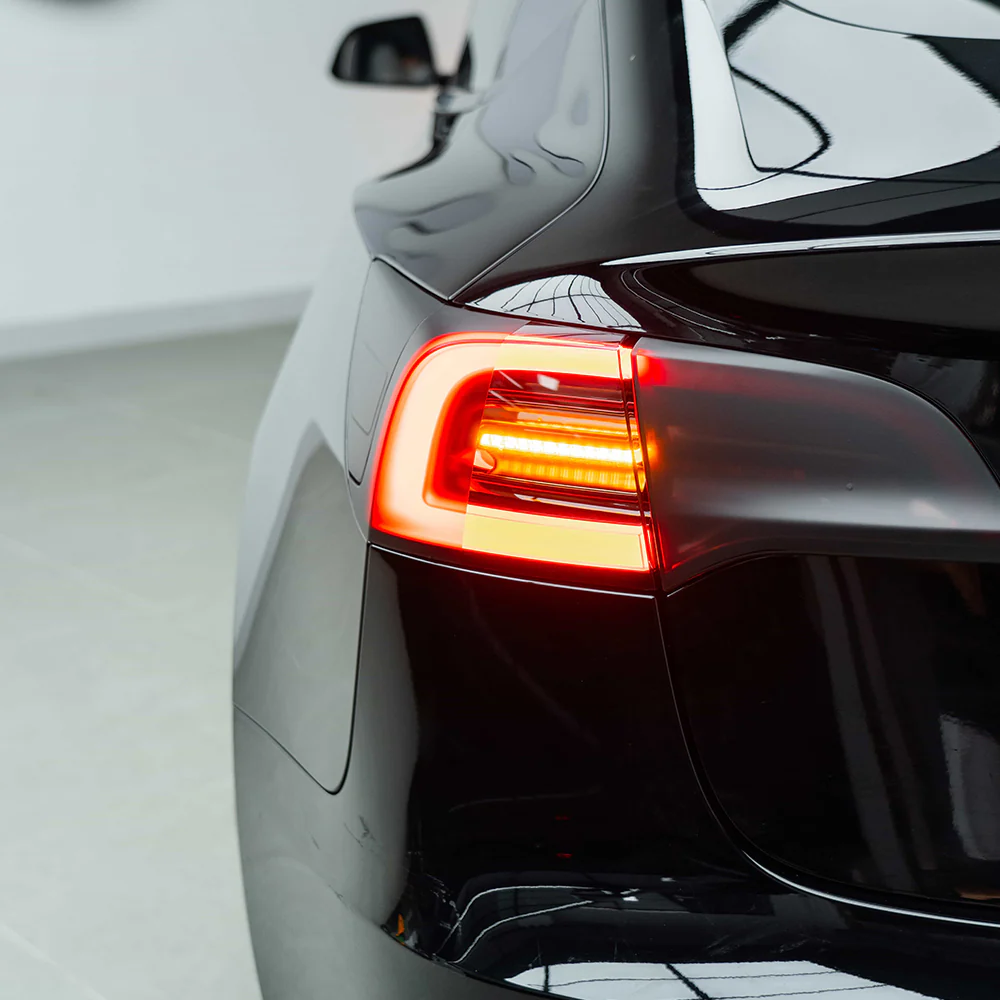

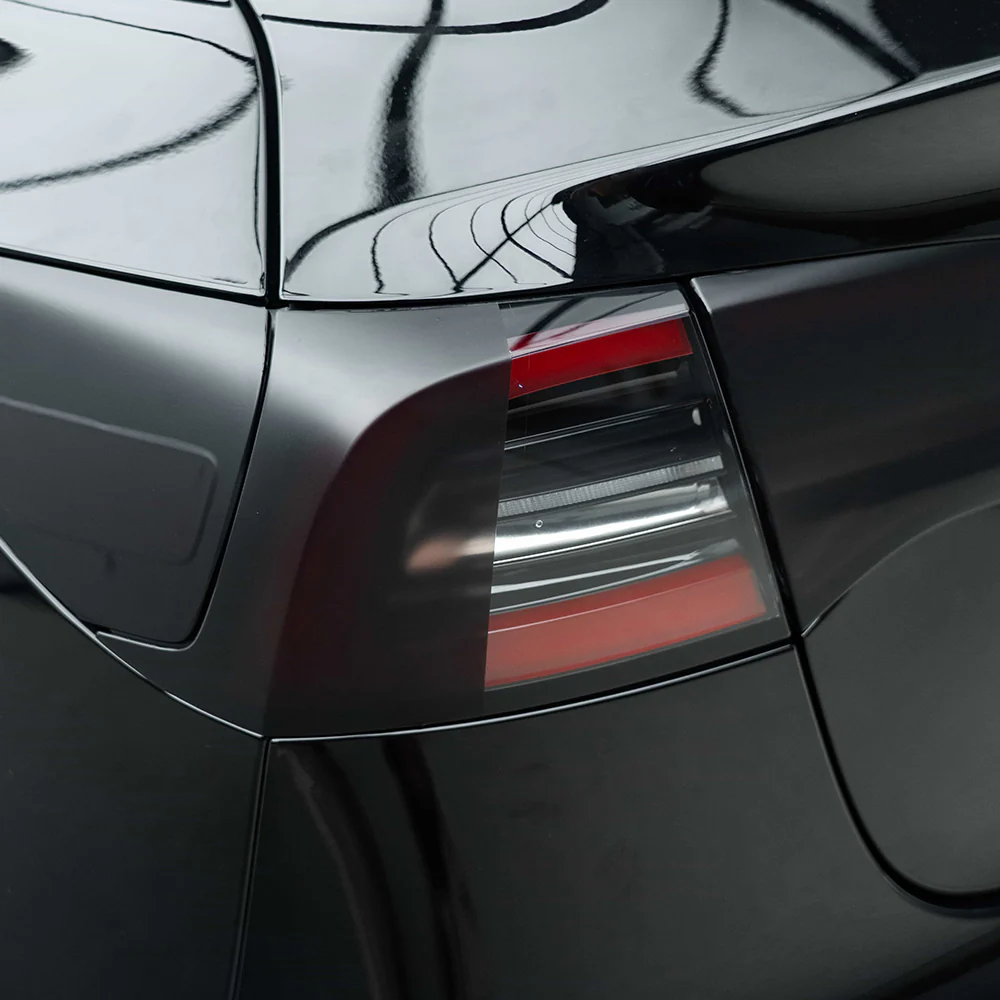

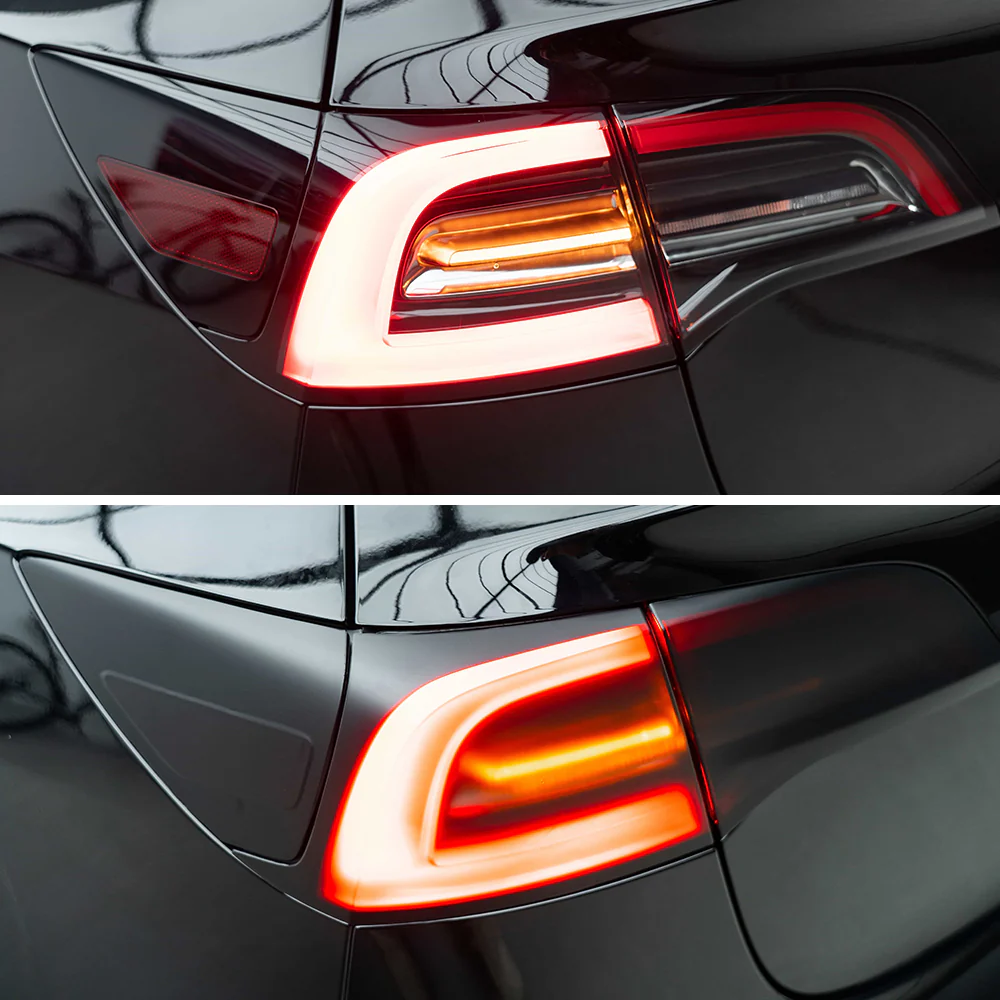

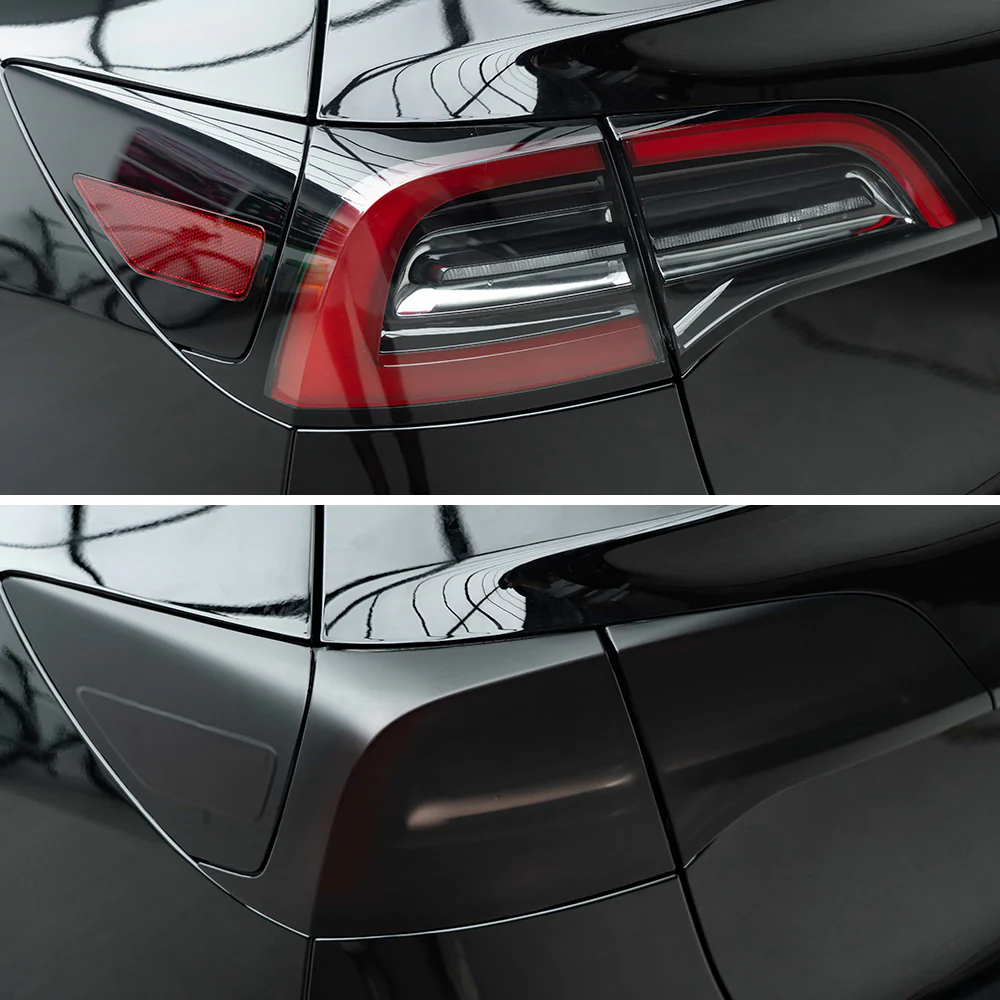

VinylFrog satin black taillight film gives your rear lights a refined, low-sheen finish that sits between matte and gloss. It softens the glare from bright lights, making them easier on the eyes while still delivering a clean, custom look.

The satin finish does more than just look good. It protects your taillight lenses from UV rays, road debris, and minor scratches. It also helps keep moisture and condensation from seeping into the housing, extending the life of your lights.

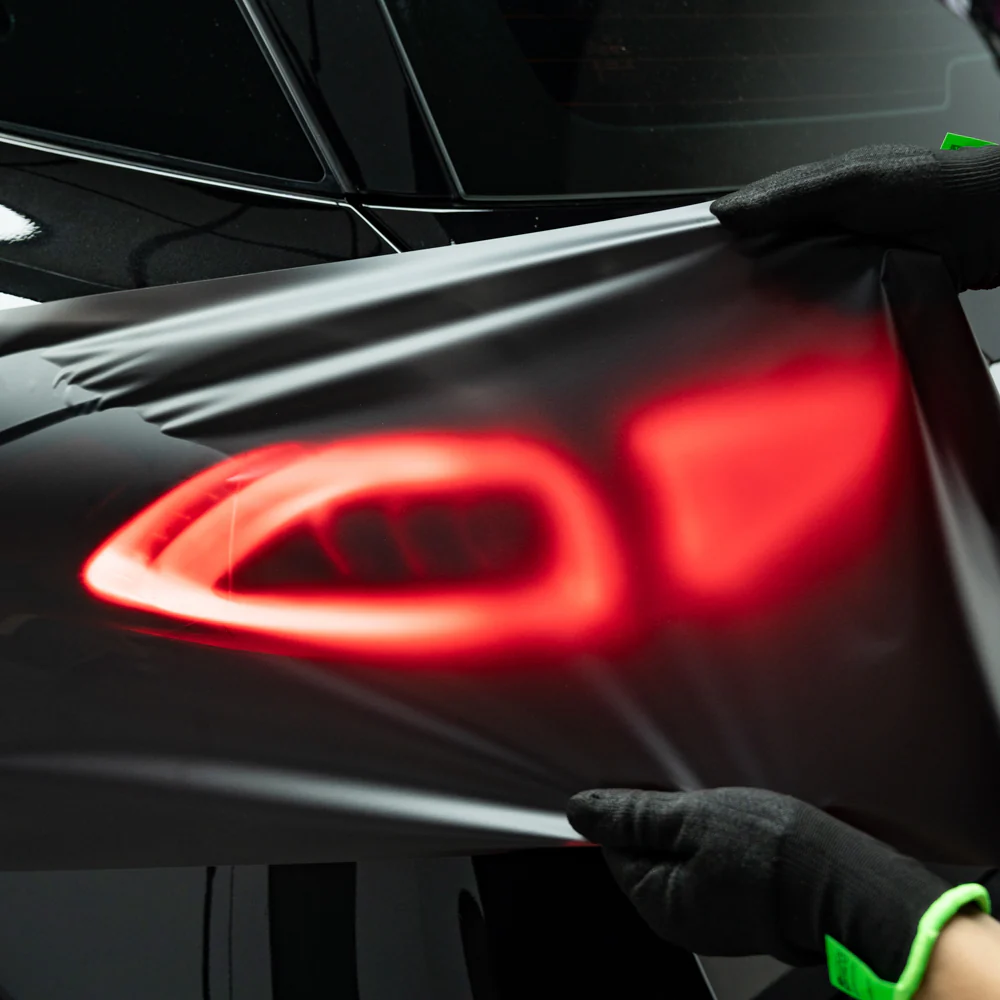

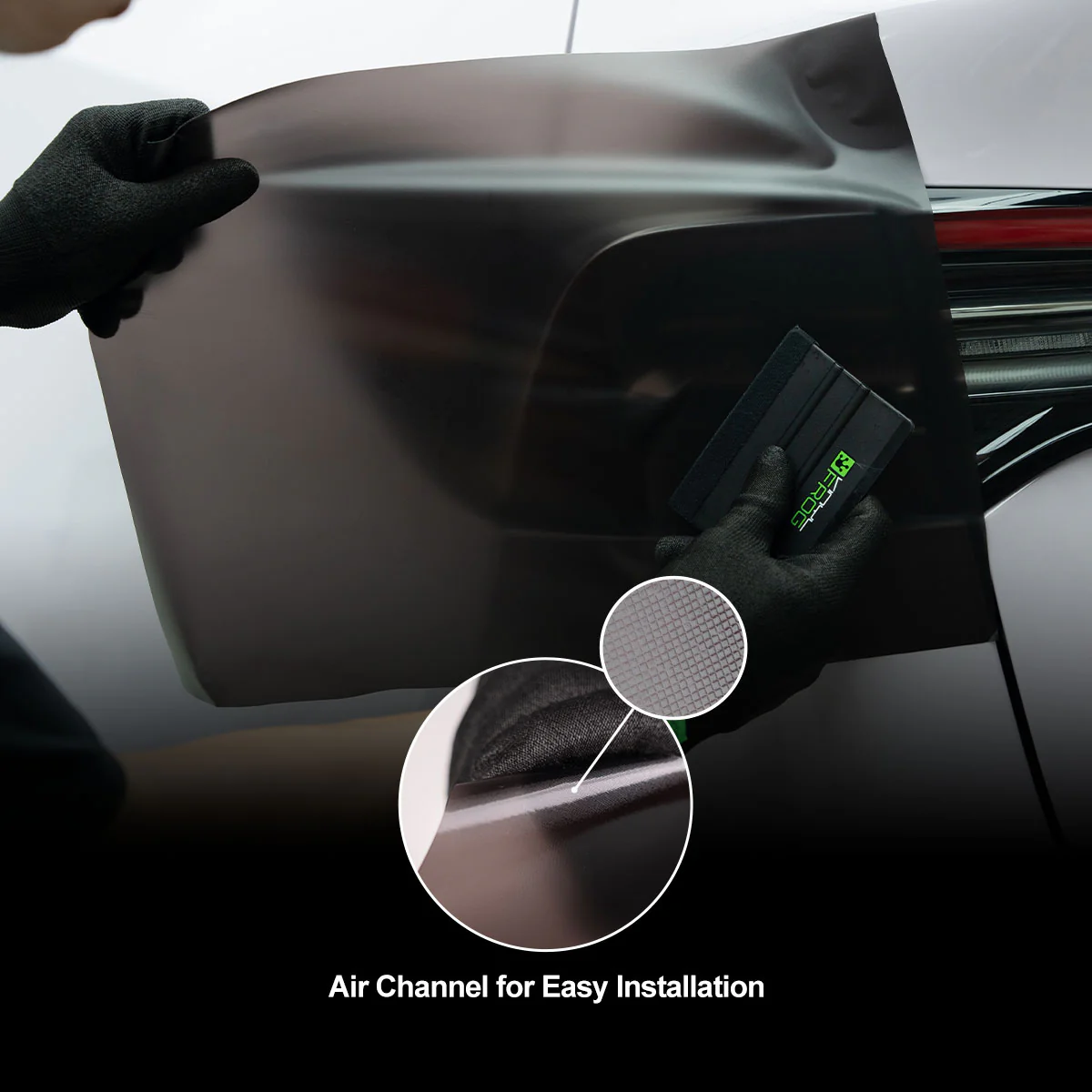

Installation is straightforward. The air-channel paper liner pushes trapped air out during application, so you are not fighting bubbles. The adhesive is repositionable, which means you can slide it around to get the alignment right before pressing it down. A self-healing topcoat closes minor wash marks and light scratches with heat exposure.

Features And Specifications

• Build Quality: Durable, long-lasting, and high-performance film.
• Material: Eco-friendly, high-grade vinyl tint.
• Finish: Satin black with a low-sheen, glare-reducing surface.
• Protection: Waterproof and weatherproof for year-round reliability.
• Resistance: Resists heat, UV rays, and surface scratches.
• Maintenance: Easy to apply and simple to maintain.

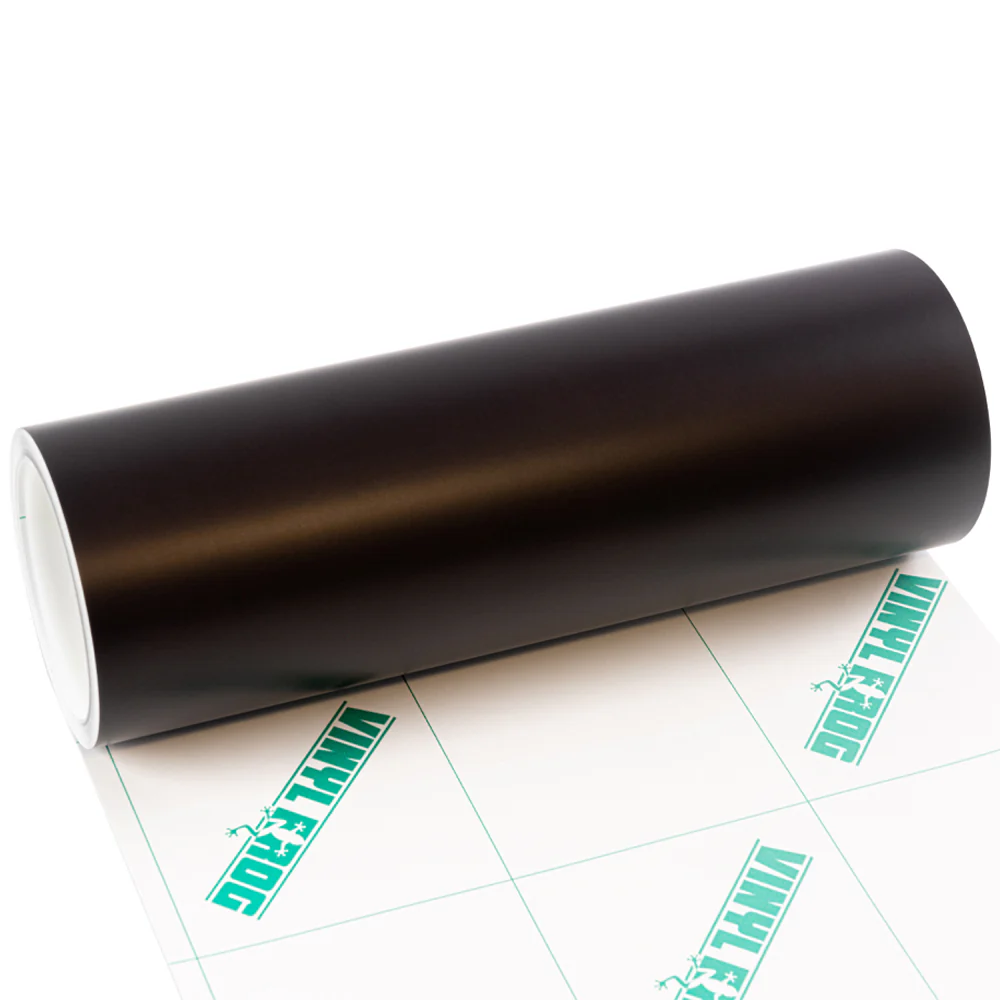

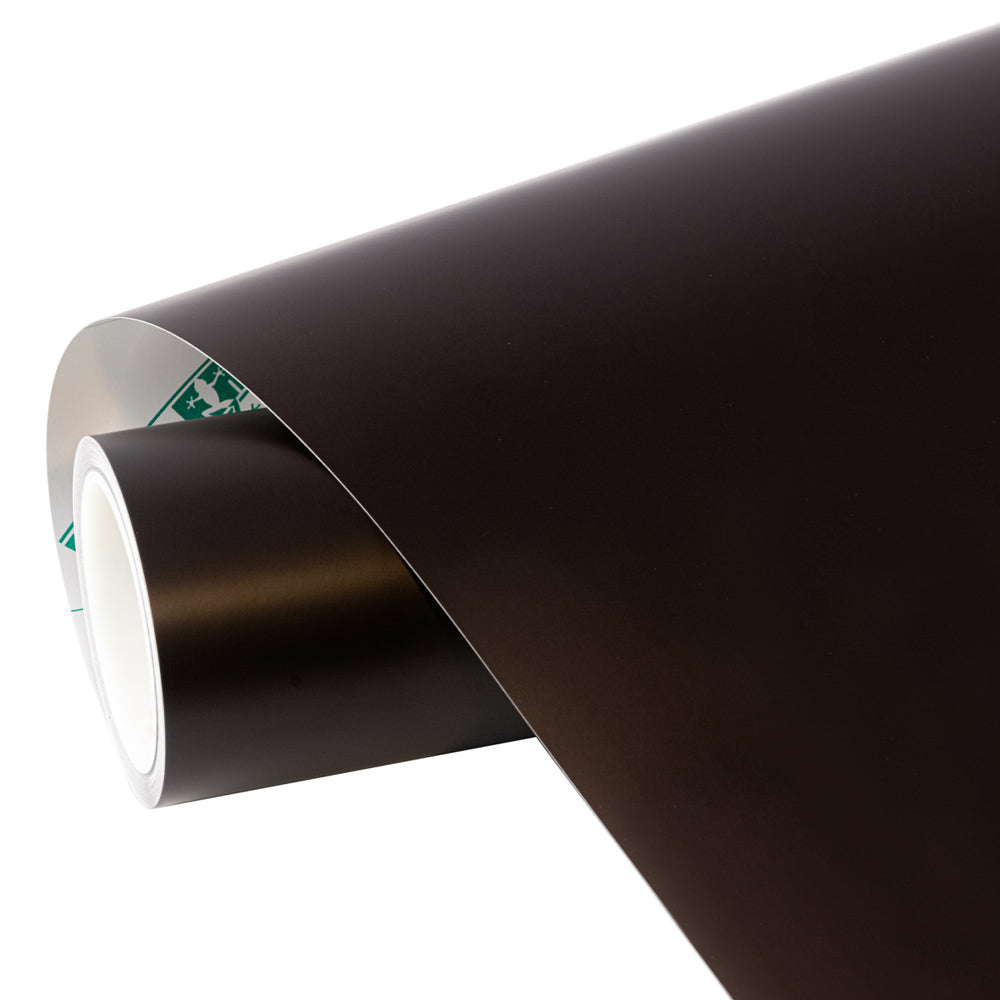

• Liner: Equipped with a protective air-channel paper liner.
• Adhesive: Acrylic-based, repositionable ultra-clear adhesive.
• Installation: Slides and repositions easily for perfect alignment.
• Self-Healing: Equipped with self-healing technology that closes minor surface scratches with heat exposure.
• Durability: Delivers up to 1 year of performance (based on vertical exposure).
• Applications: Suitable for automotive, architectural, marketing, indoor, and outdoor use.
• Sizes: Available in 1ft, 2ft, 4ft, 8ft, 16ft, and 32ft rolls.
• Color: Satin Black, Light Black

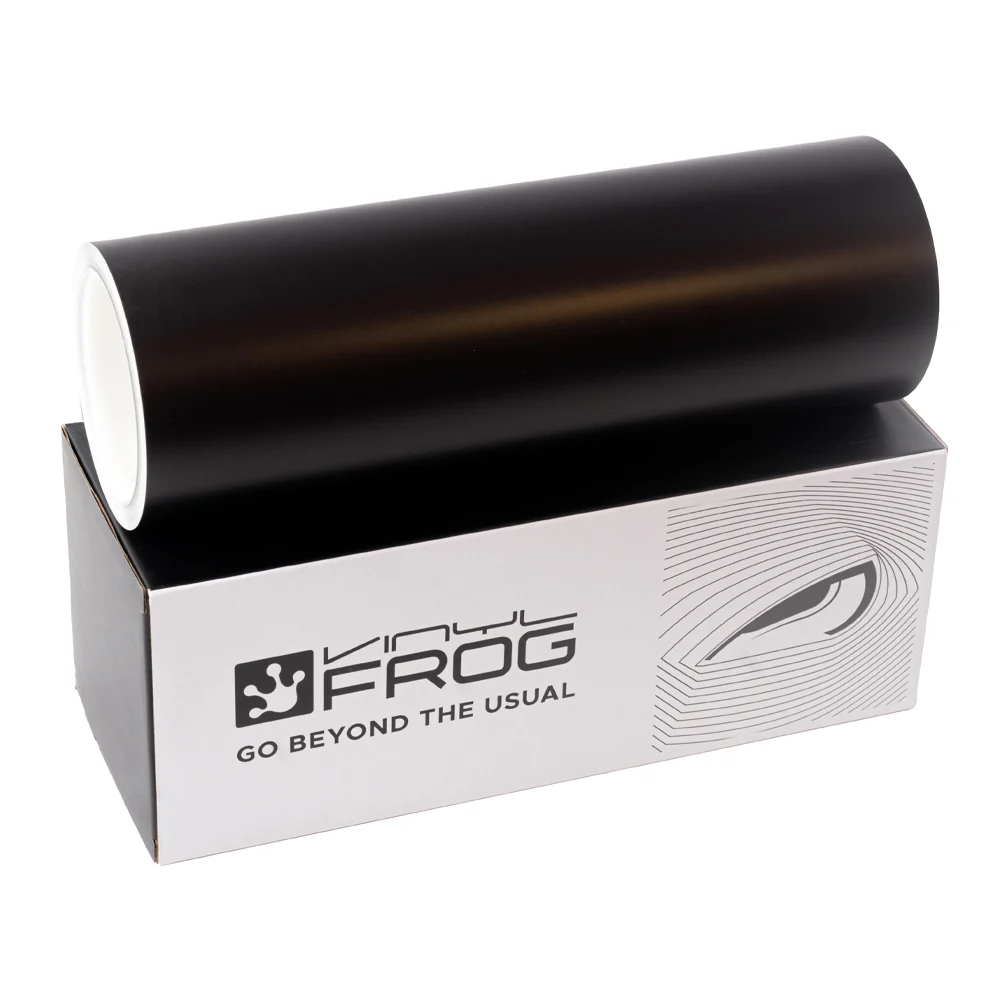

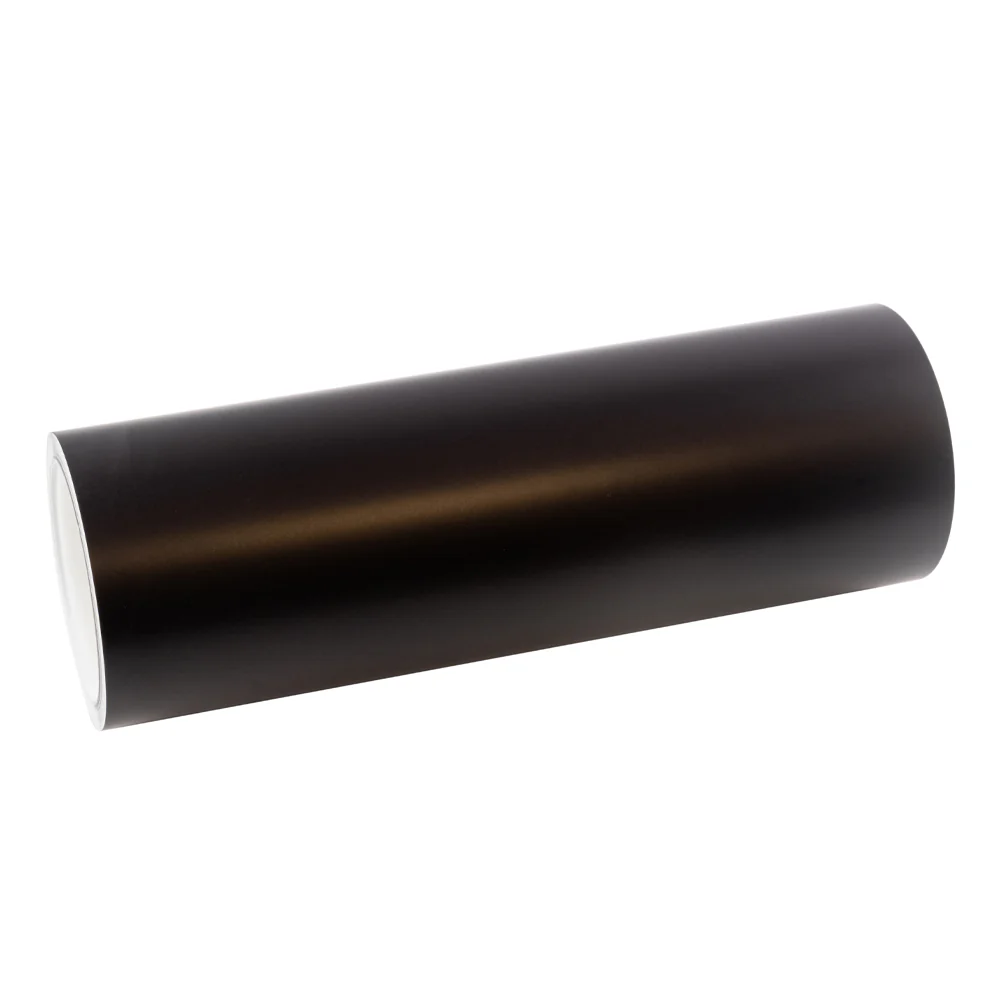

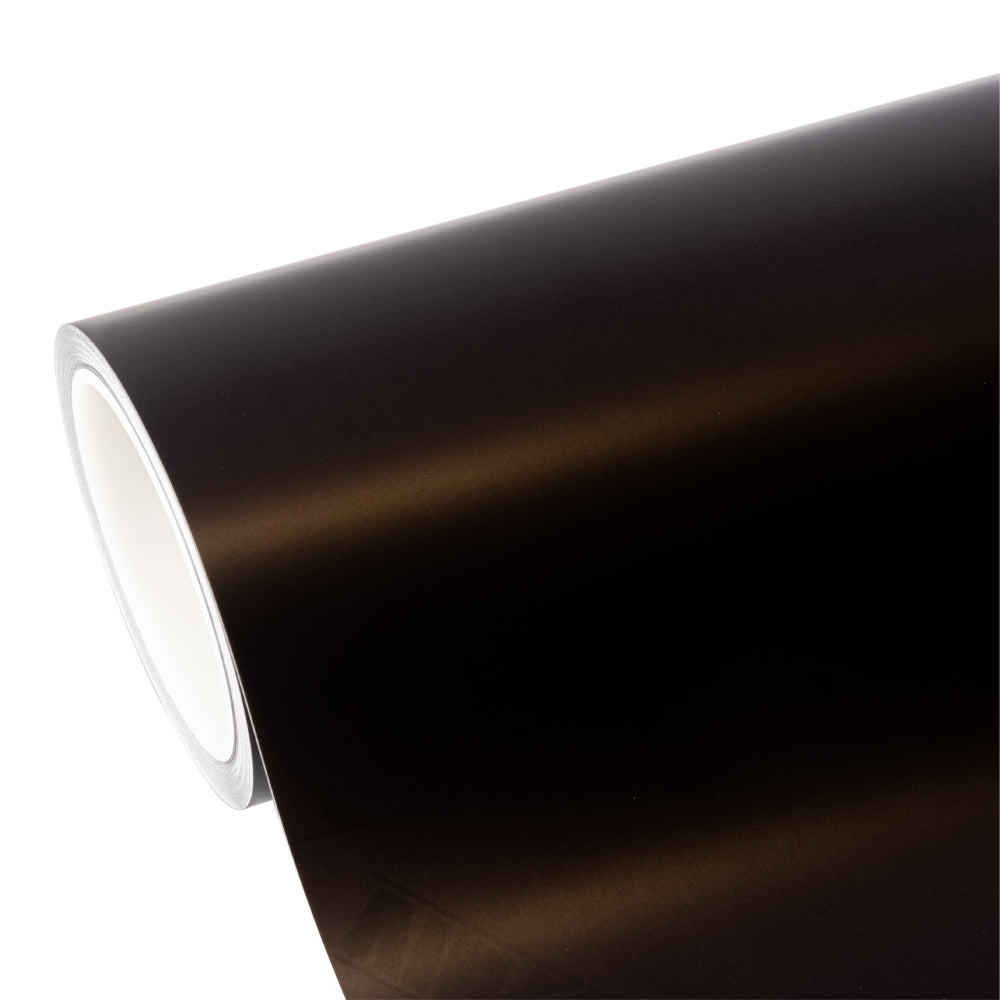

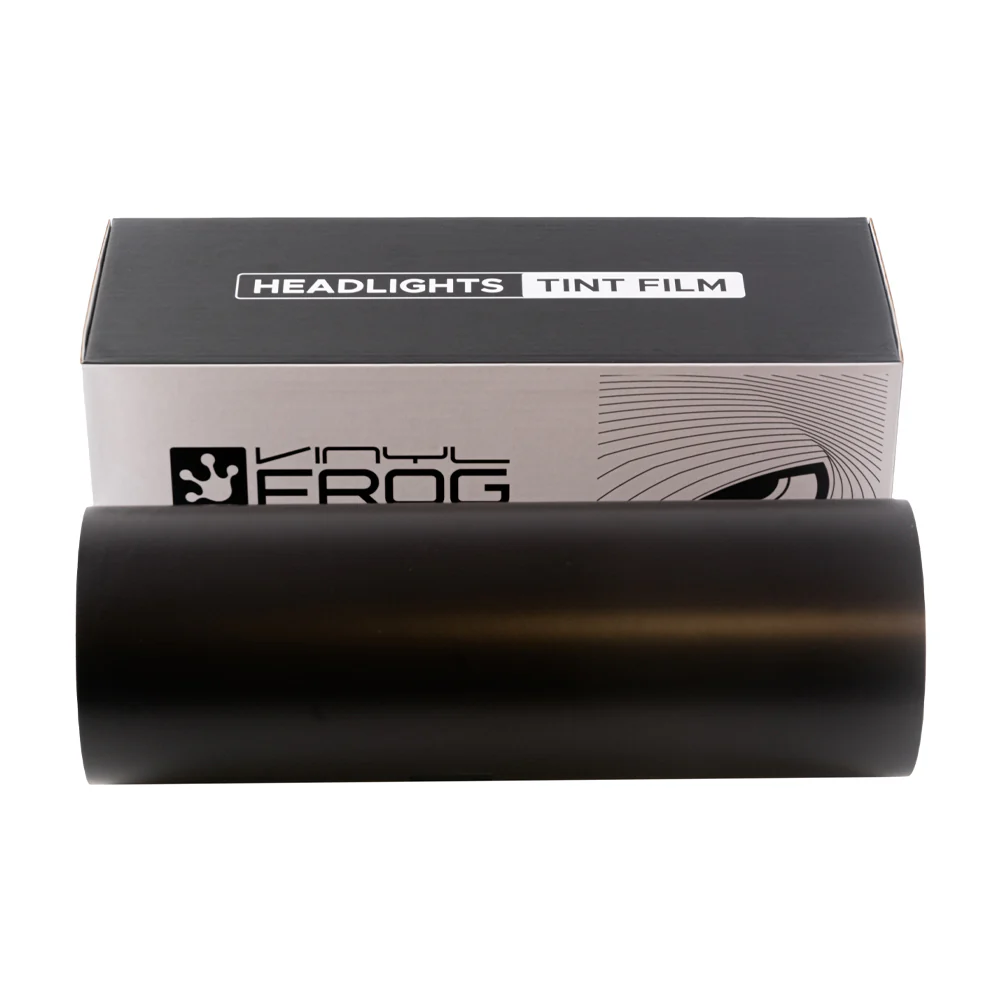

• Packaging: Supplied in a roll.
• Application Method: On a clean, dry surface.

Video

Proper Installation

If the taillight surface is clean and undamaged before installation, the wrap adheres evenly and removes smoothly.

Proper Removal Technique

Using gentle heat (like a heat gun or hairdryer) softens the adhesive, making it easier to peel without pulling or tearing the headlight’s factory coating.

Warning

If the taillight are already oxidized, yellowed, or have weak factory coating, peeling the wrap can pull off clear coat or cause flaking.

Physical Properties

Classification		Unit	Spec	Remark
Thickness	Face Film	um	100±5	/
	Acrylic Adhesive	um	20±2	Solvent-based
	Release liner	um	180±2%	Paper Liner
Surface	-	-	Glossy & Matte	/
Width	-	cm	30/40±0.01%	1ft/1.3ft
Length	-	m	10±1%	32ft

Physical Performance

Features		Test Method	Results
Gloss (60°)		GB 8807	92.3
VLT		/	87%
Self-healing Layer Elongation at Break		GB/T 1040.1	112
Face Film Elongation at Break		GB/T 1040.1	309.5
Tear Strength		GB/T529	92.7 KN/m
Tensile Strength		GB/T 1040.1	21.6 Mpa
100% Modulus		GB/T 1040.1	9.1 Mpa
Anti-yellowing		/	ΔE< 1.2
Release force (N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.16
Initial tack (g/25mm)		under 24℃ and 26%, GB31125-2014	860
Peel Strength (N/25mm)		180°	15
Holding power(h)		paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998	No peel off within 48 hours
Aging Test		65℃ and 7 days	No adhesive residue under 20 times wrapping
Application Temperature		/	+20℃ to +30℃
Service Temperature		/	-50℃ to +110℃
Recommended Shelf Life		72°F (22°C) and 50% RH	1 year
Durability		/	1 year
Time limits		Must use it within 3 months after receiving the wrap film	3 months



Shelf Life

1 year from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. The optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Important Notice

The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

Warranty, Limited Remedy, And Disclaimer

Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

Limitation Of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

Durability

The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.

Recommendations

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for Car Light Protection Film. Do not overstretch and overheat. Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves and overlaps.
Aftercare: PH neutral. Avoid wax or solvents.
