Light Blue Headlight Film With Air Channel Paper Liner

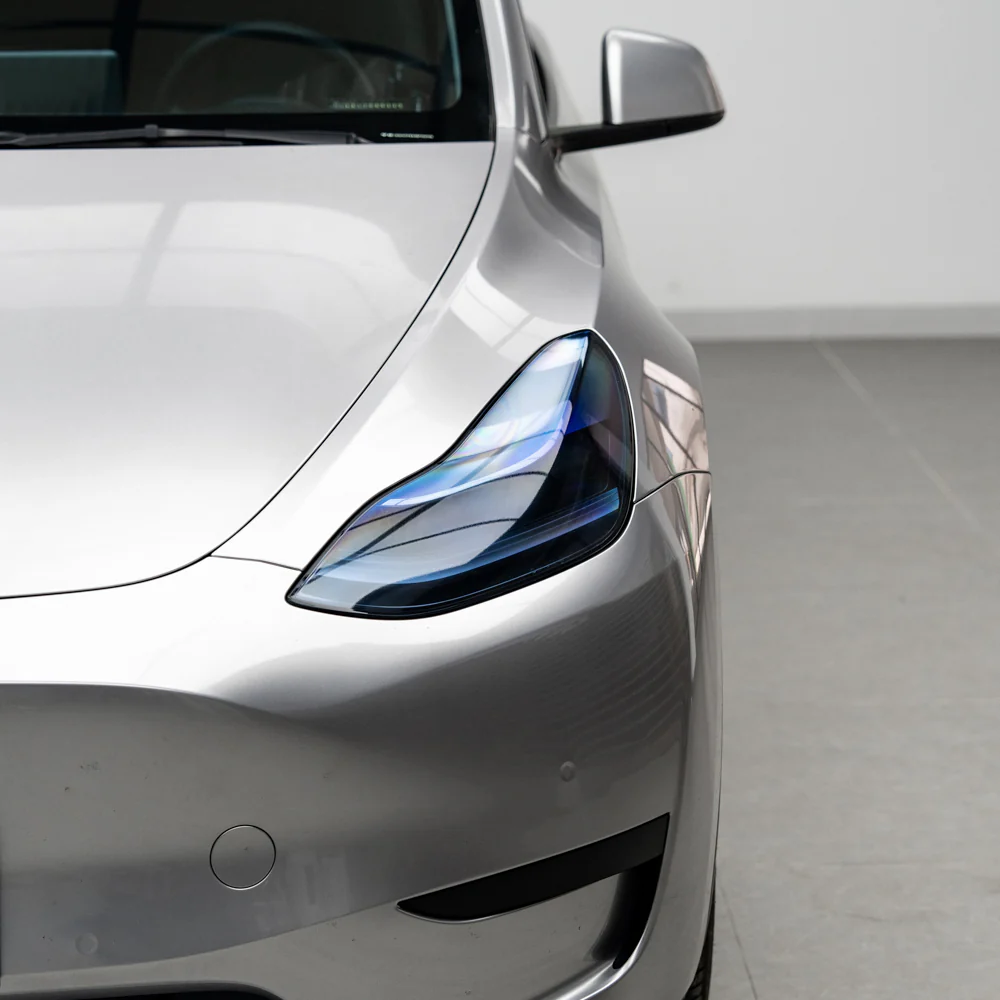

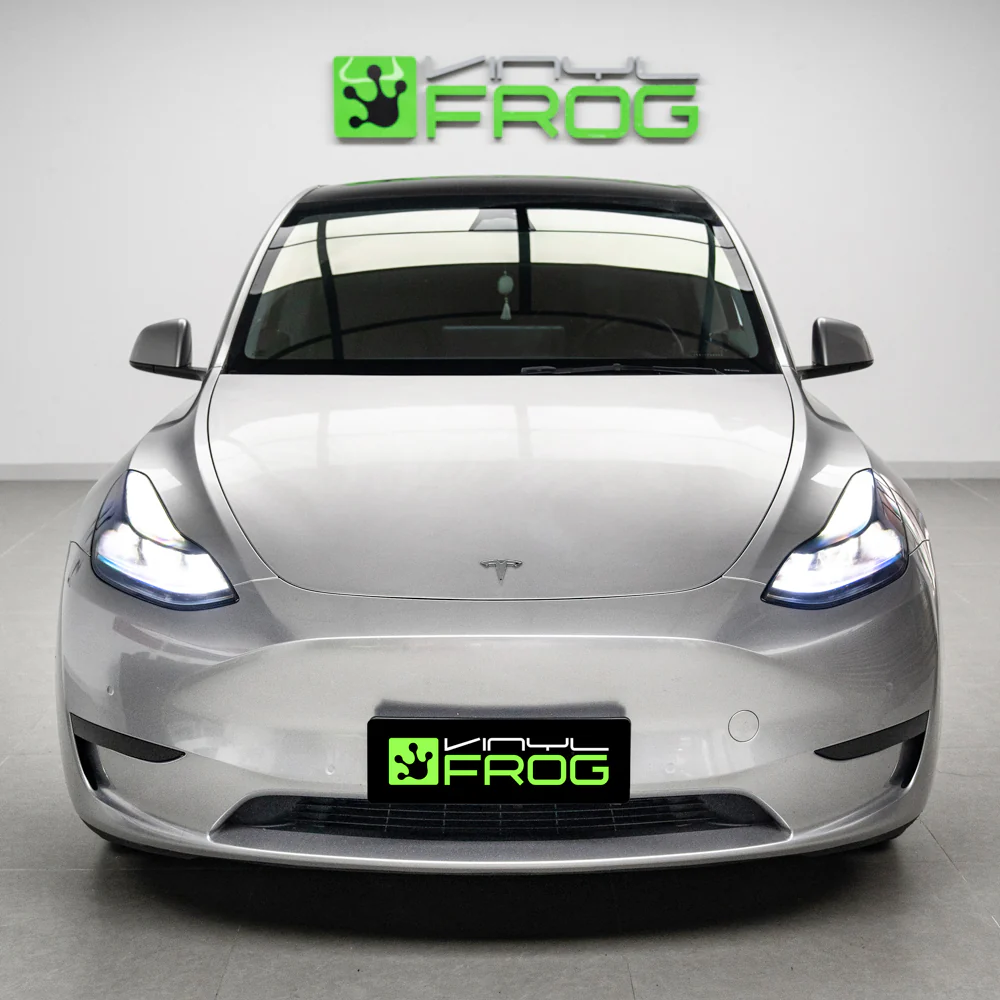

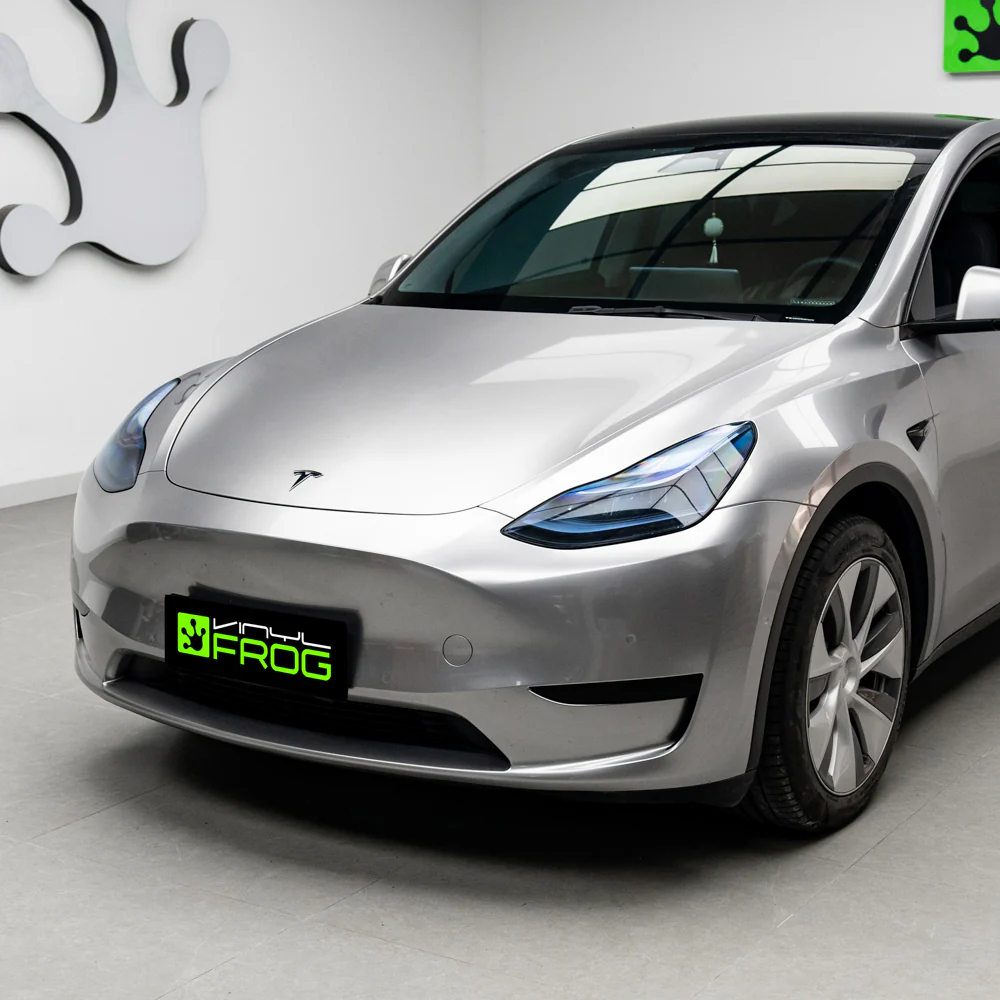

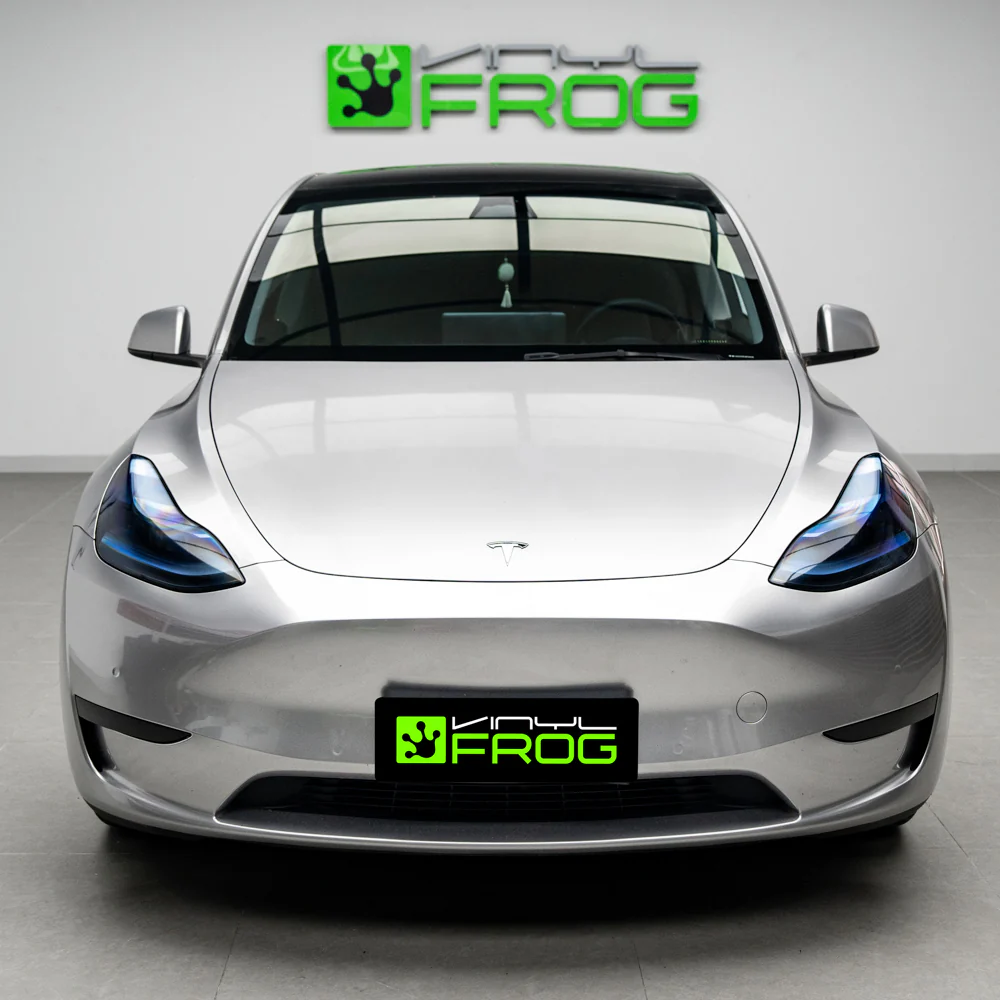

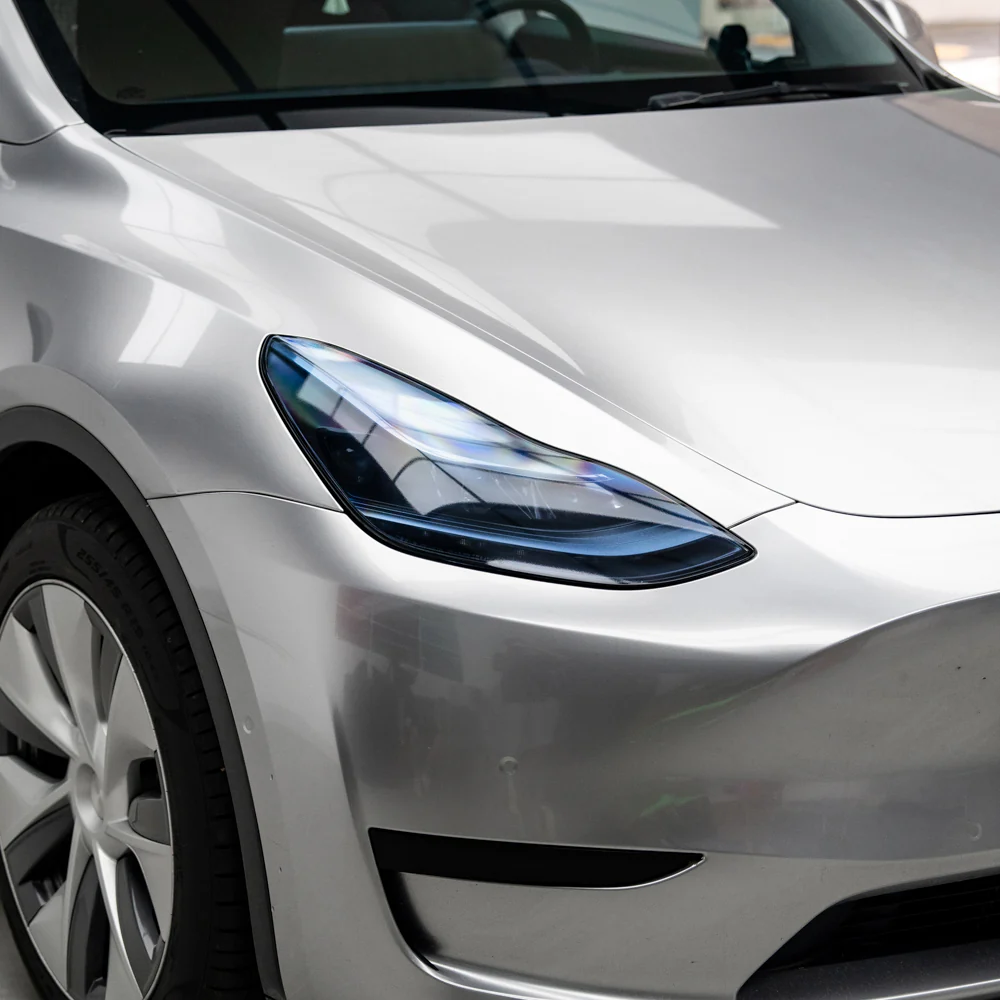

Light Blue Headlight Film With Air Channel Paper Liner is a dry-apply headlight tint that adds a blue cast to the lens without dulling the beam behind it. In daylight the film reads close to clear; once the headlight switches on, the lens glows blue instead of plain white.

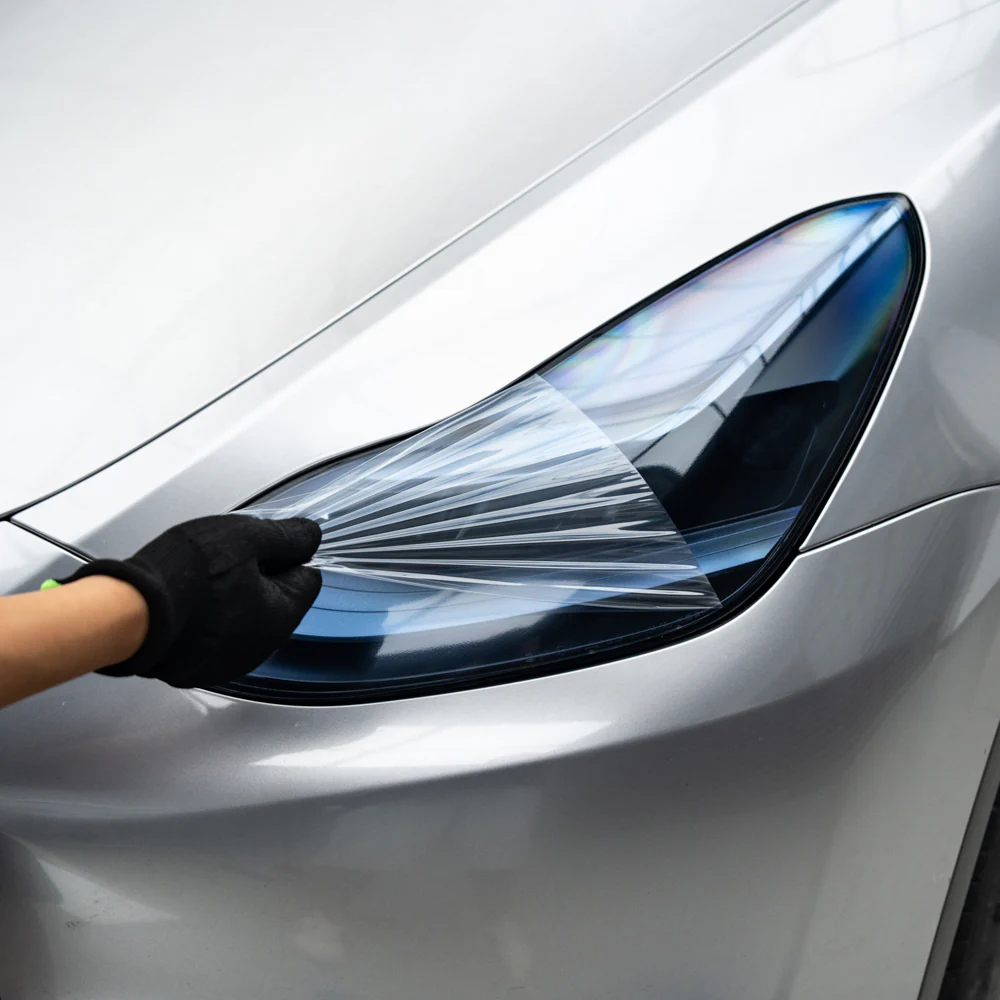

Installation is dry, no water or slip solution, just a squeegee working the film down onto the lens. The air-channel liner sits in the solvent-based acrylic adhesive itself, so trapped air has a path out instead of getting pressed into a bubble, and a heat-activated self-healing top coat handles minor scratches picked up after install.

It's cut to fit rather than pre-shaped, so the same roll works across headlights, fog lights, taillights, and brake lights on any vehicle, curved lenses included.

Features And Specifications

• Color: Light Blue

• Sizes available: 1ft, 2ft, 4ft, 8ft, 16ft, and 32ft

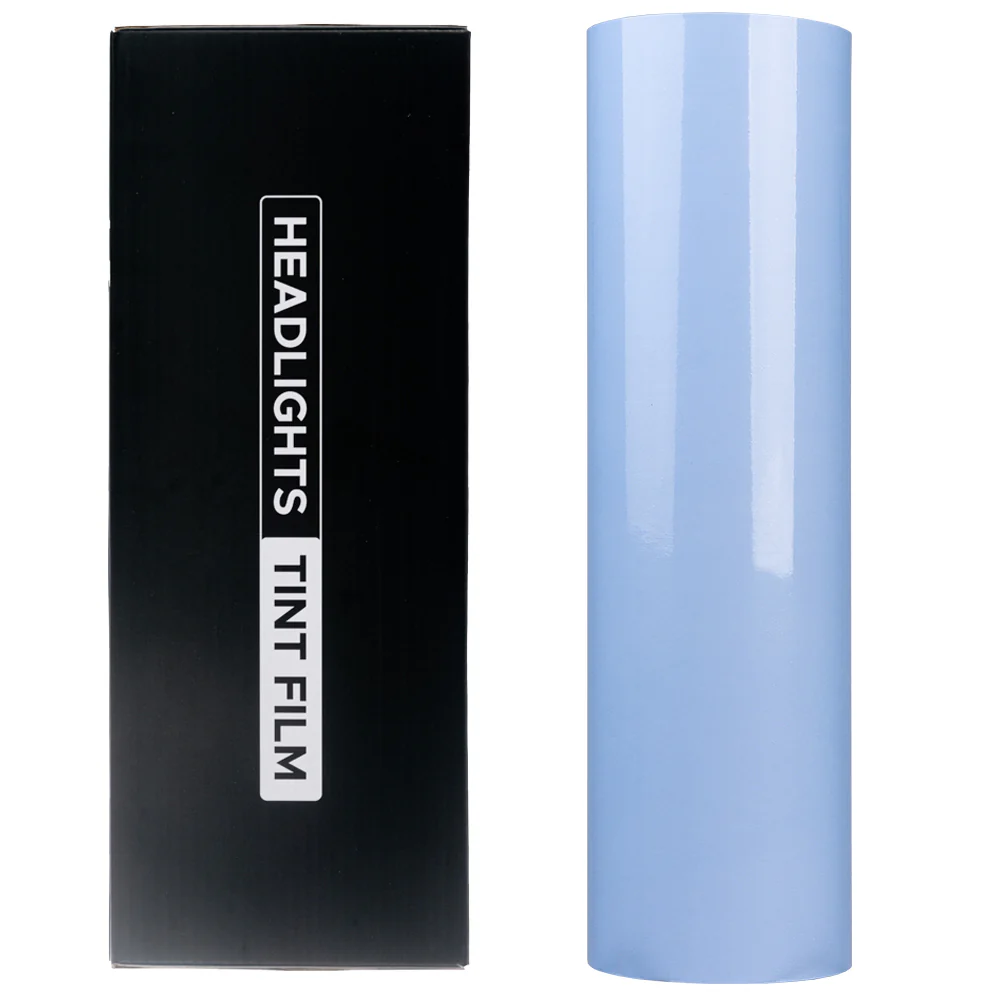

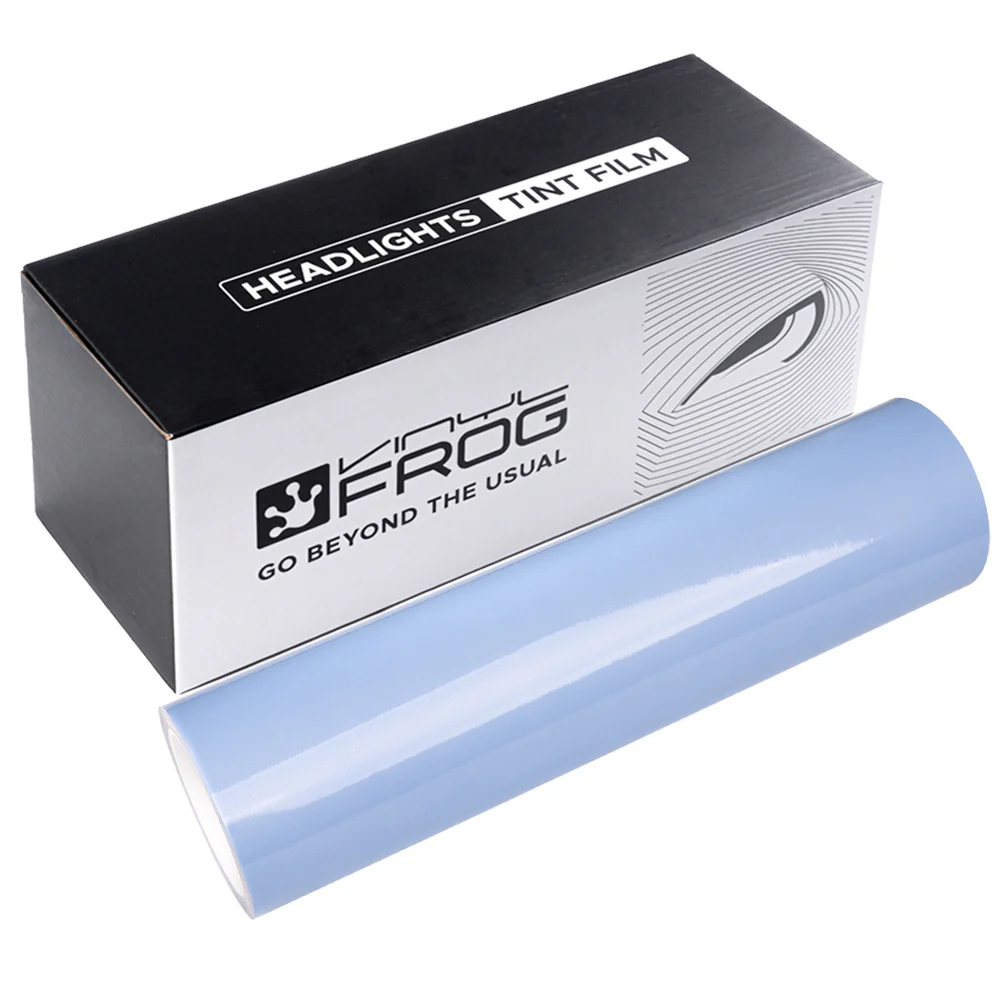

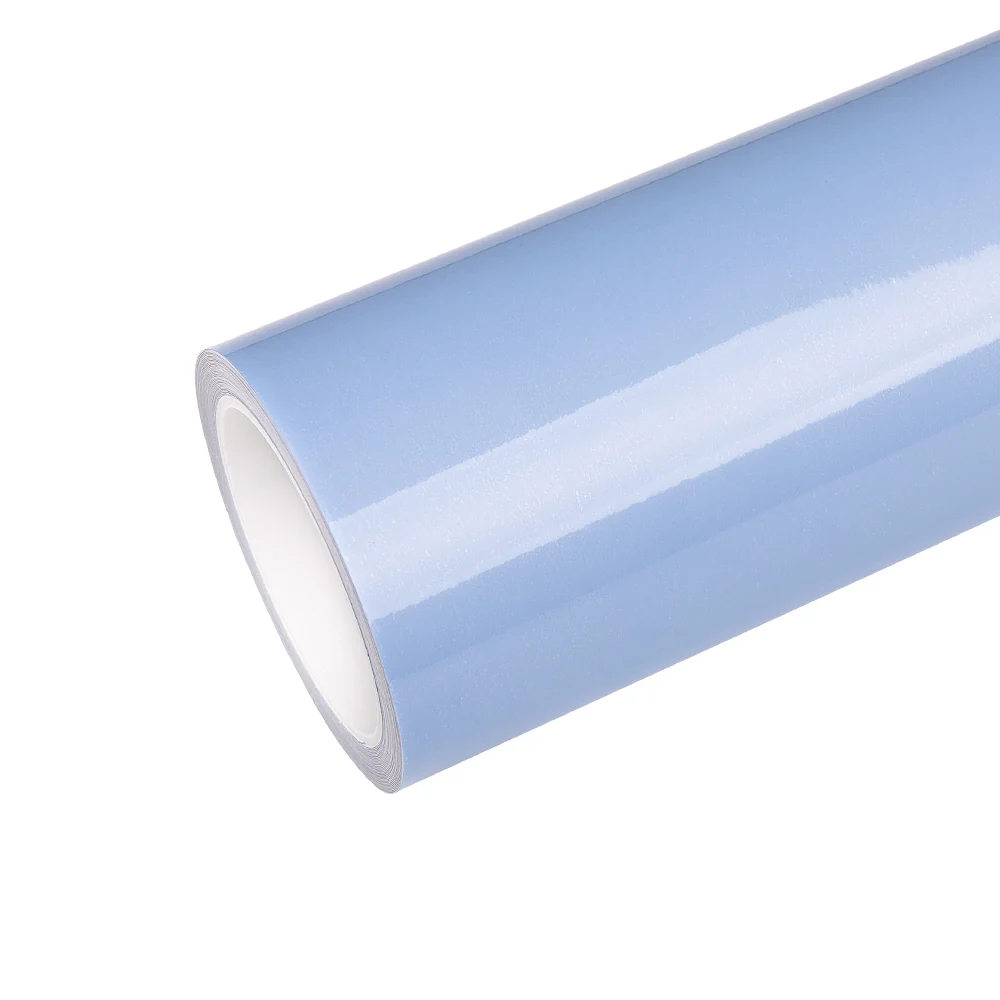

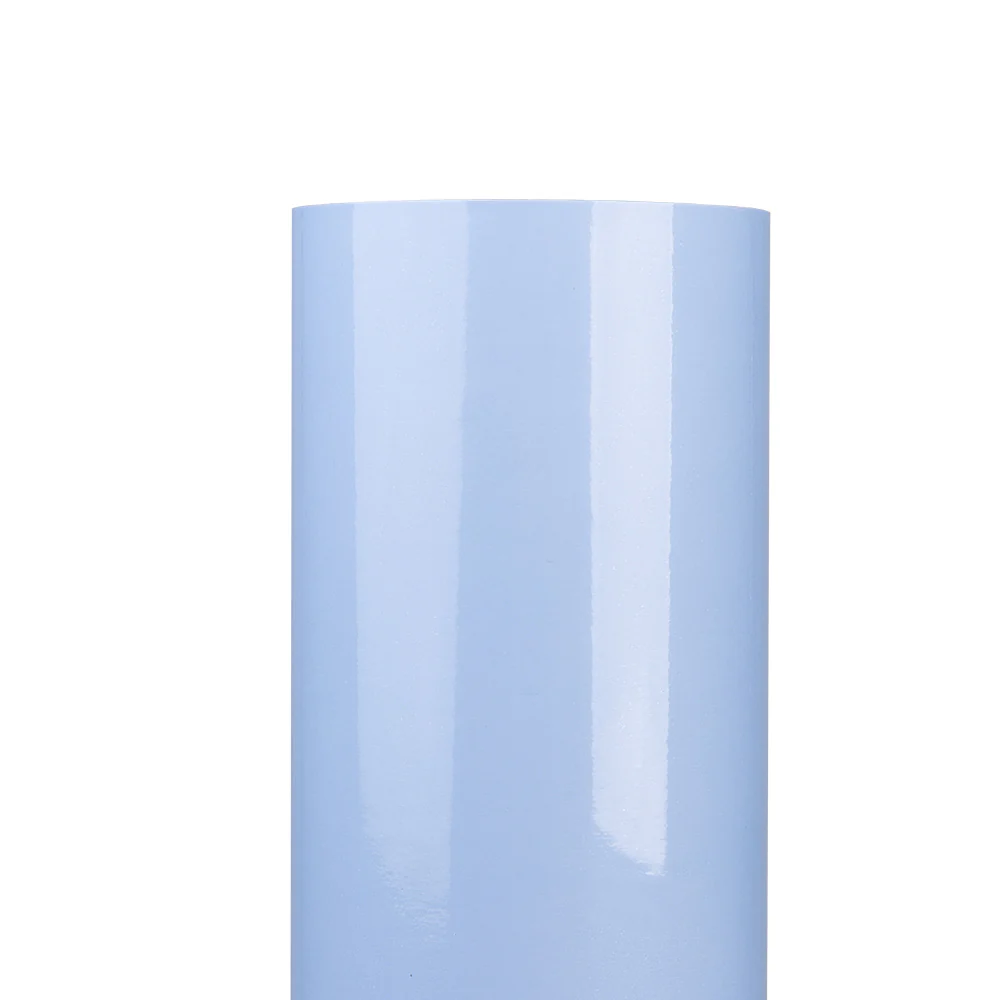

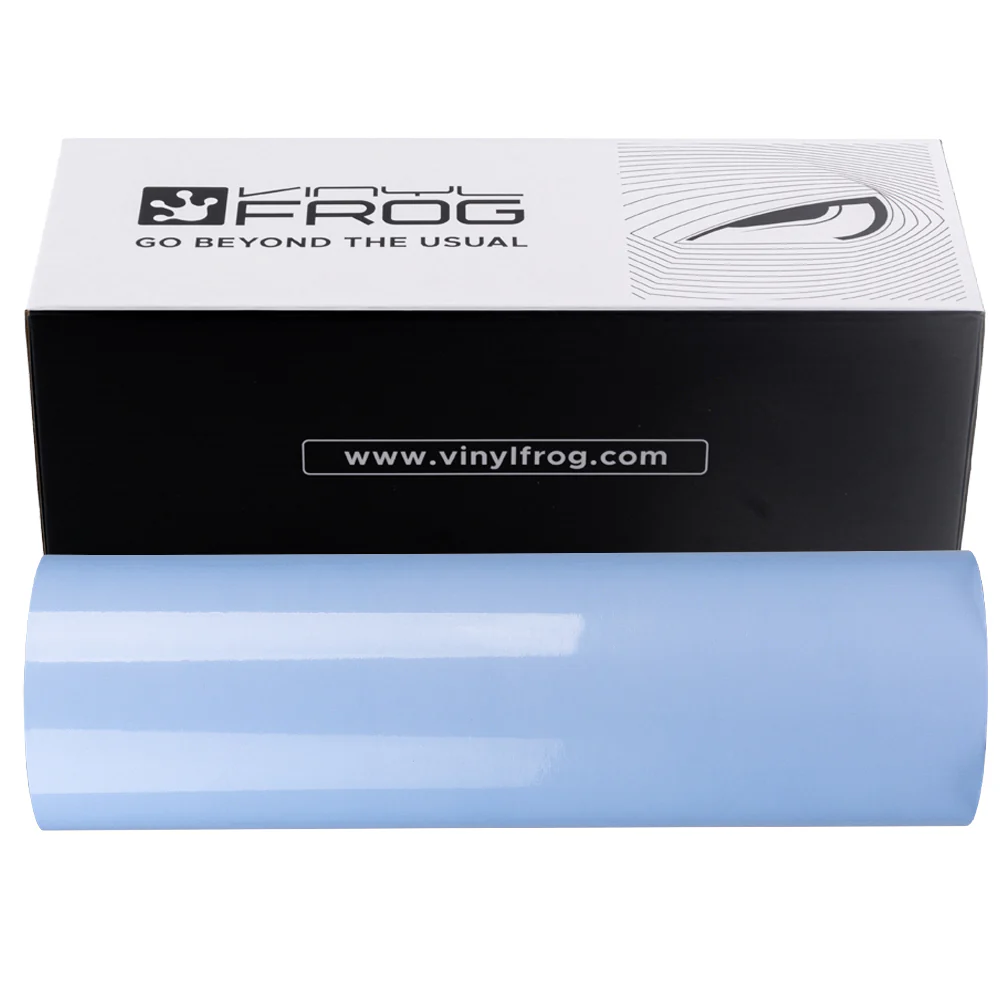

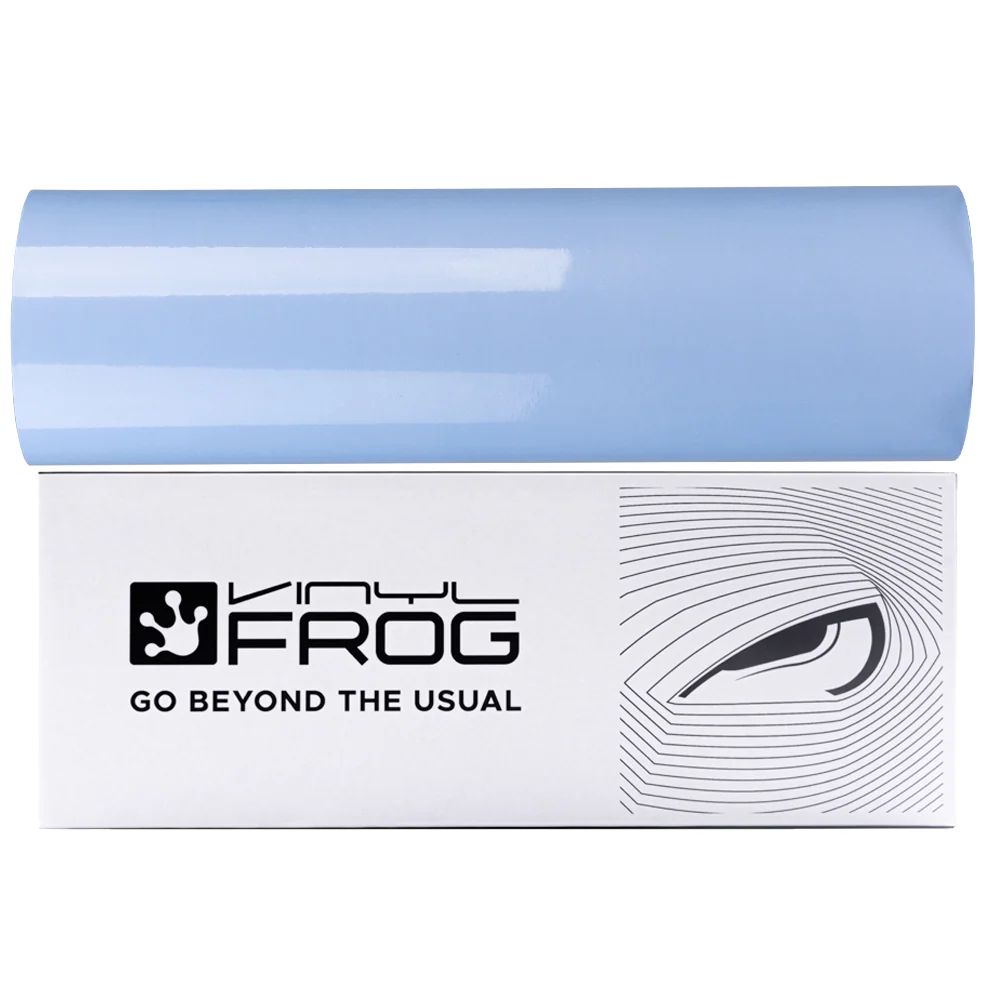

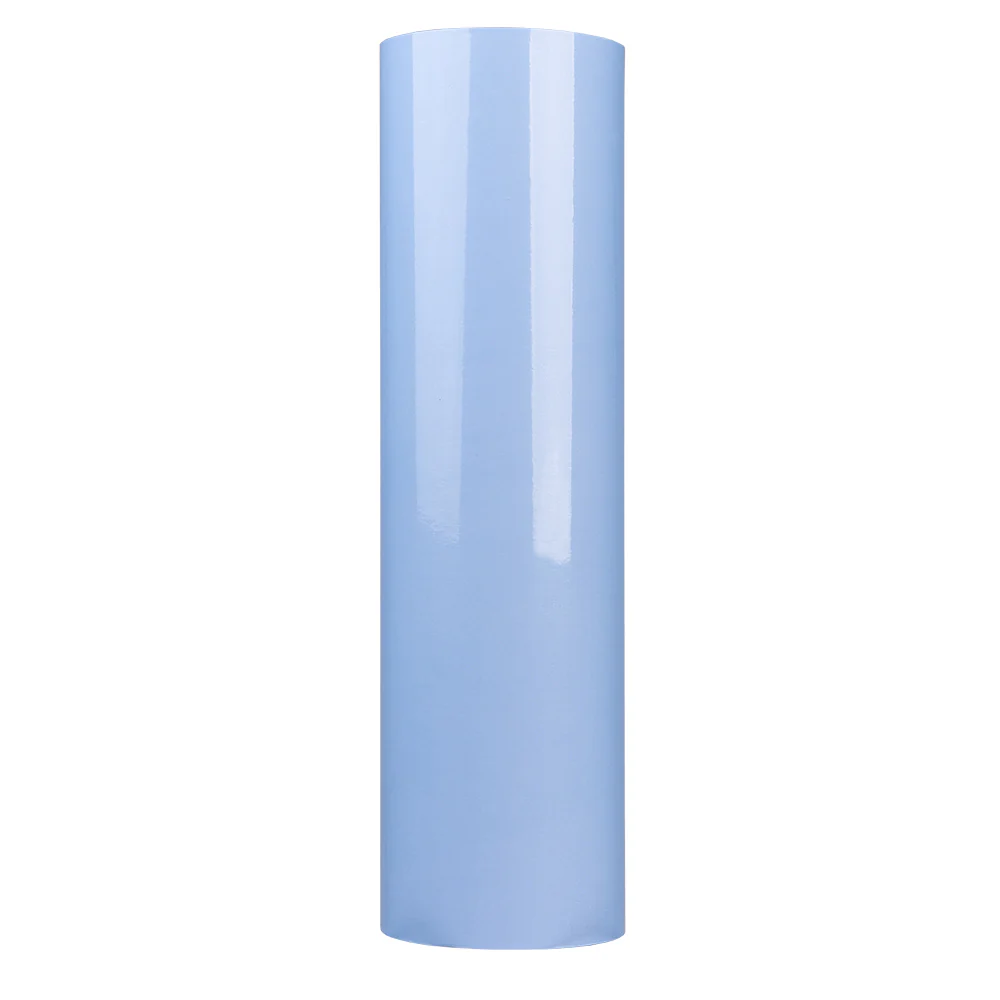

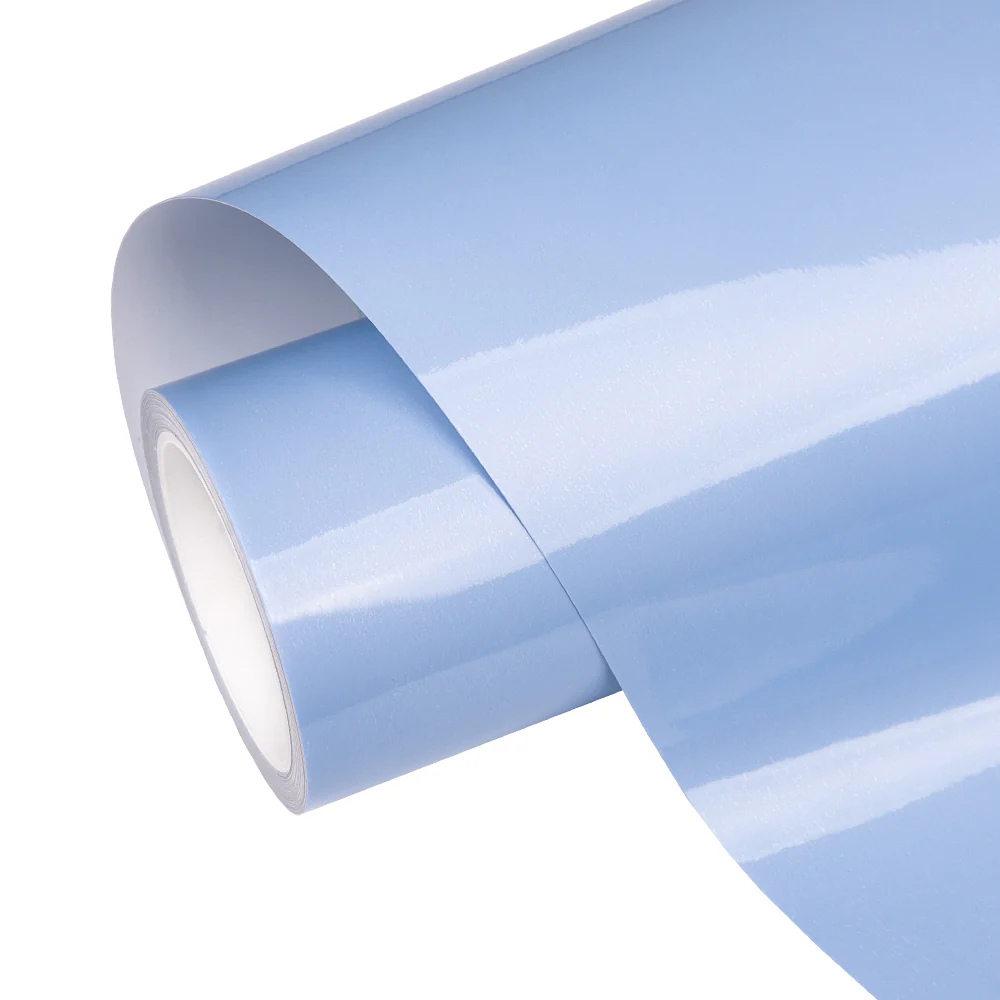

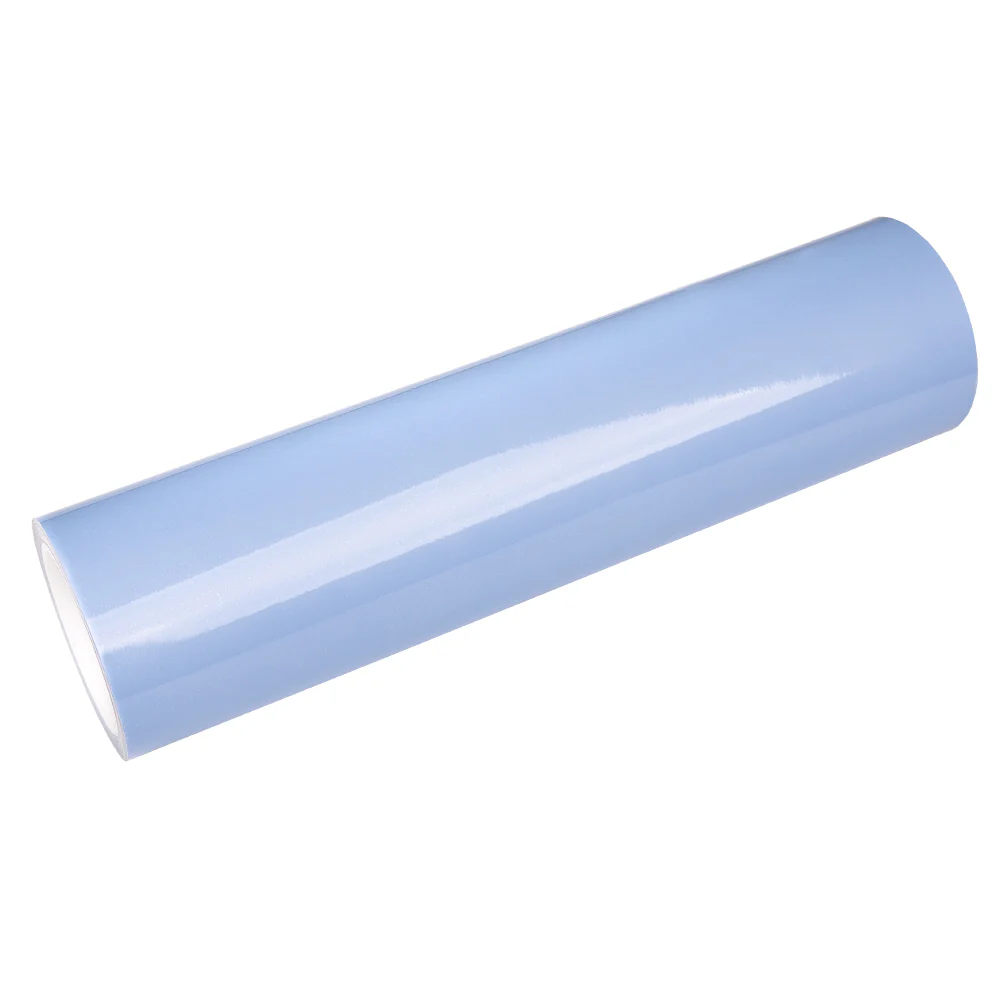

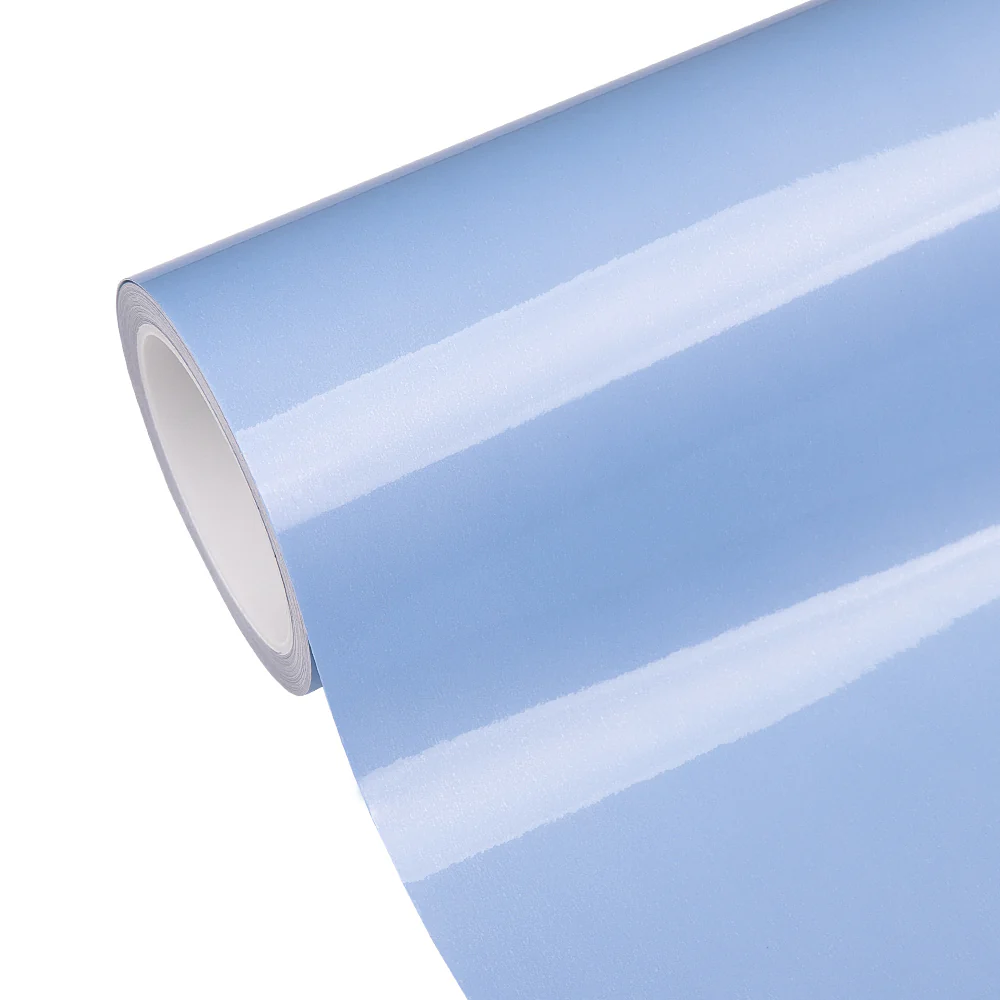

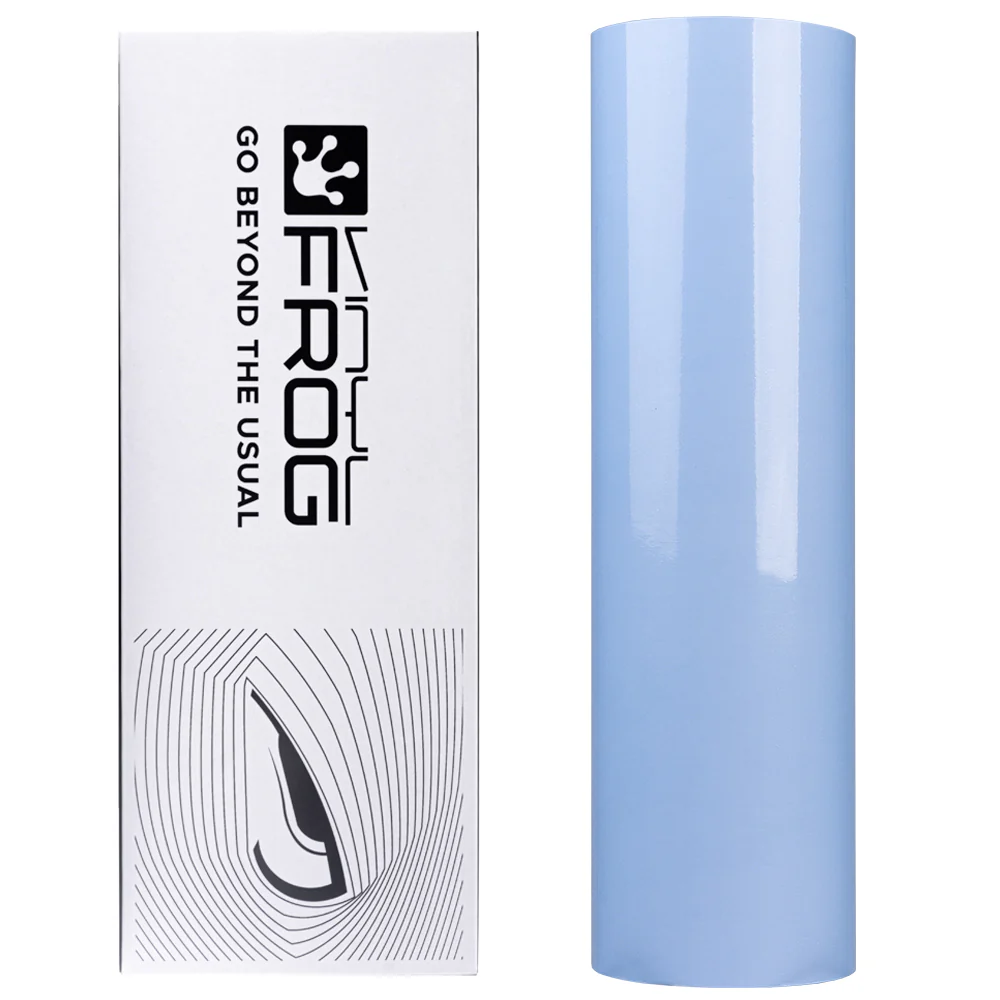

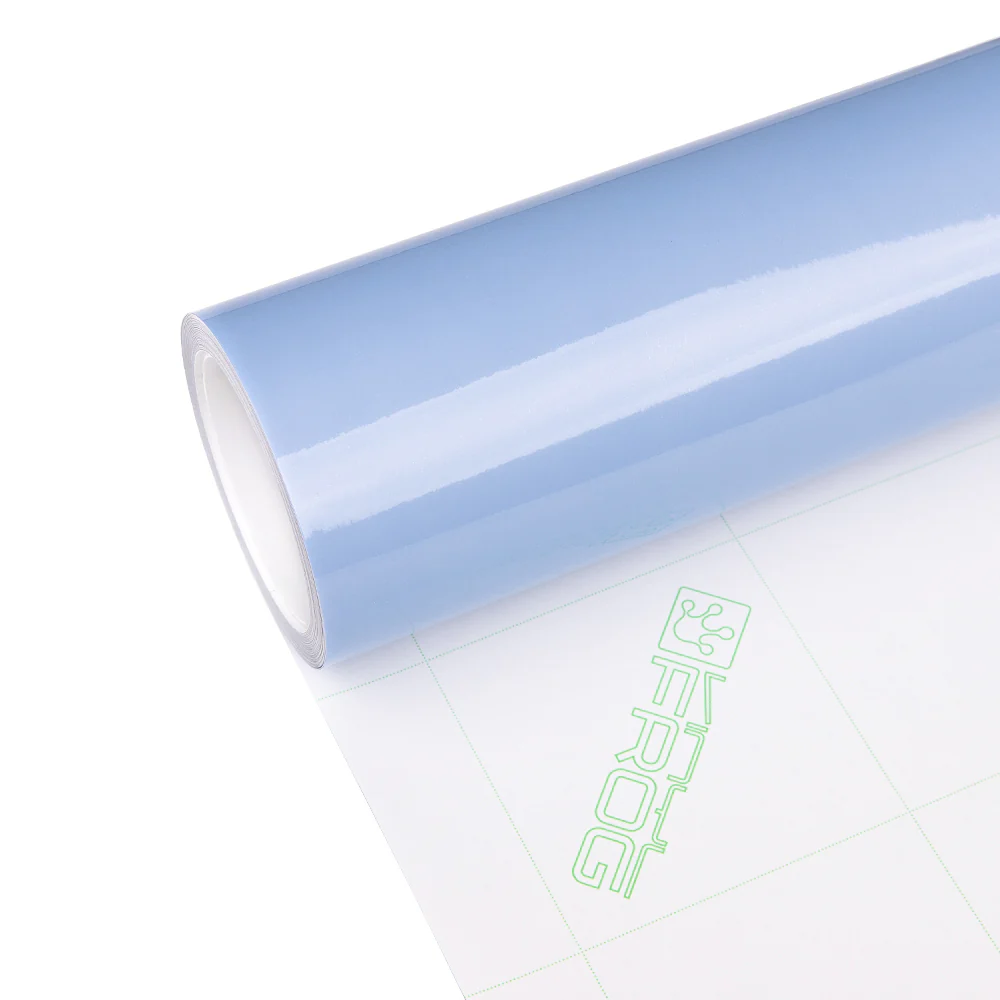

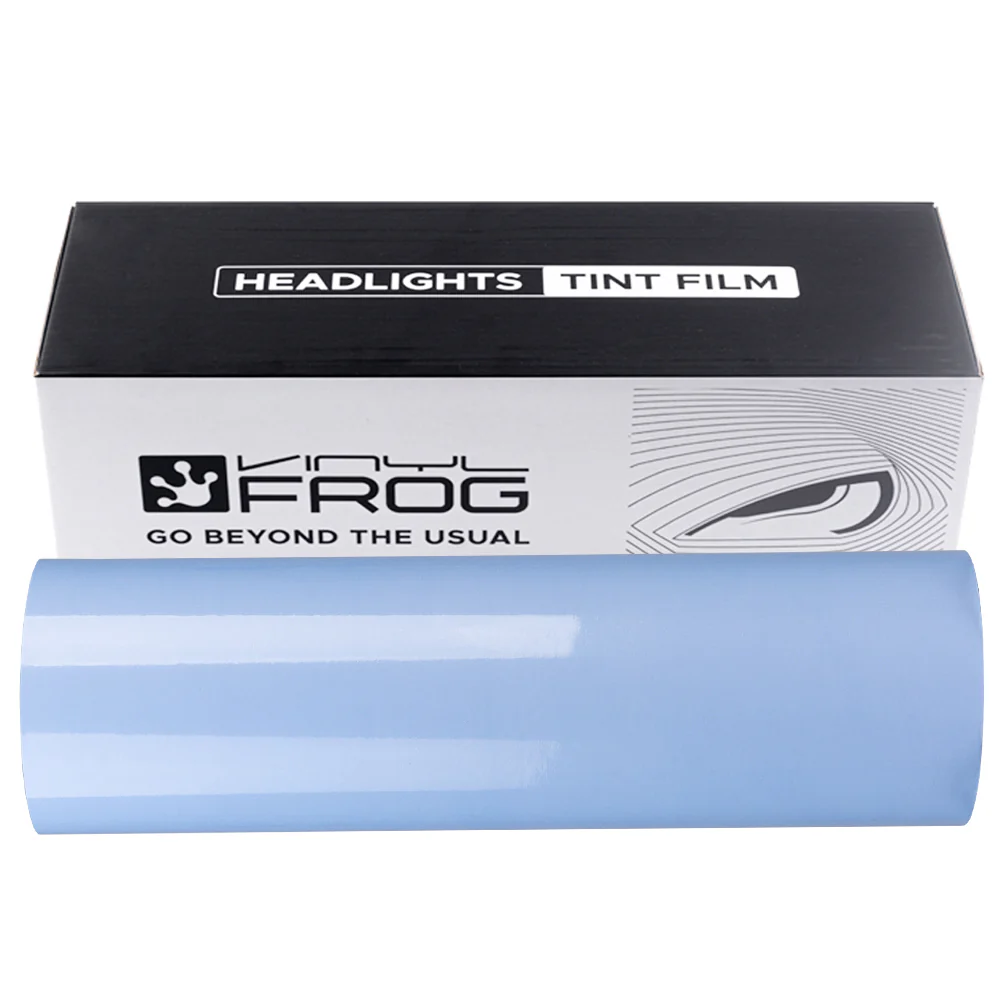

• Packaging: Roll

• Application Method: Dry

• Lifetime: 1 year (based on vertical exposure)

• Applications: Automotive, architectural, marketing, indoor and outdoor

• Durability: Heat, UV, and scratch-resistant

• Adhesive: Acrylic-based, repositionable ultra-clear adhesive

• Self-healing: Heat-activated technology repairs light marks

• Protective layer: Top protective film included

• Maintenance: Easy to apply and clean

• Eco-friendly: High-grade tint, environmentally safe

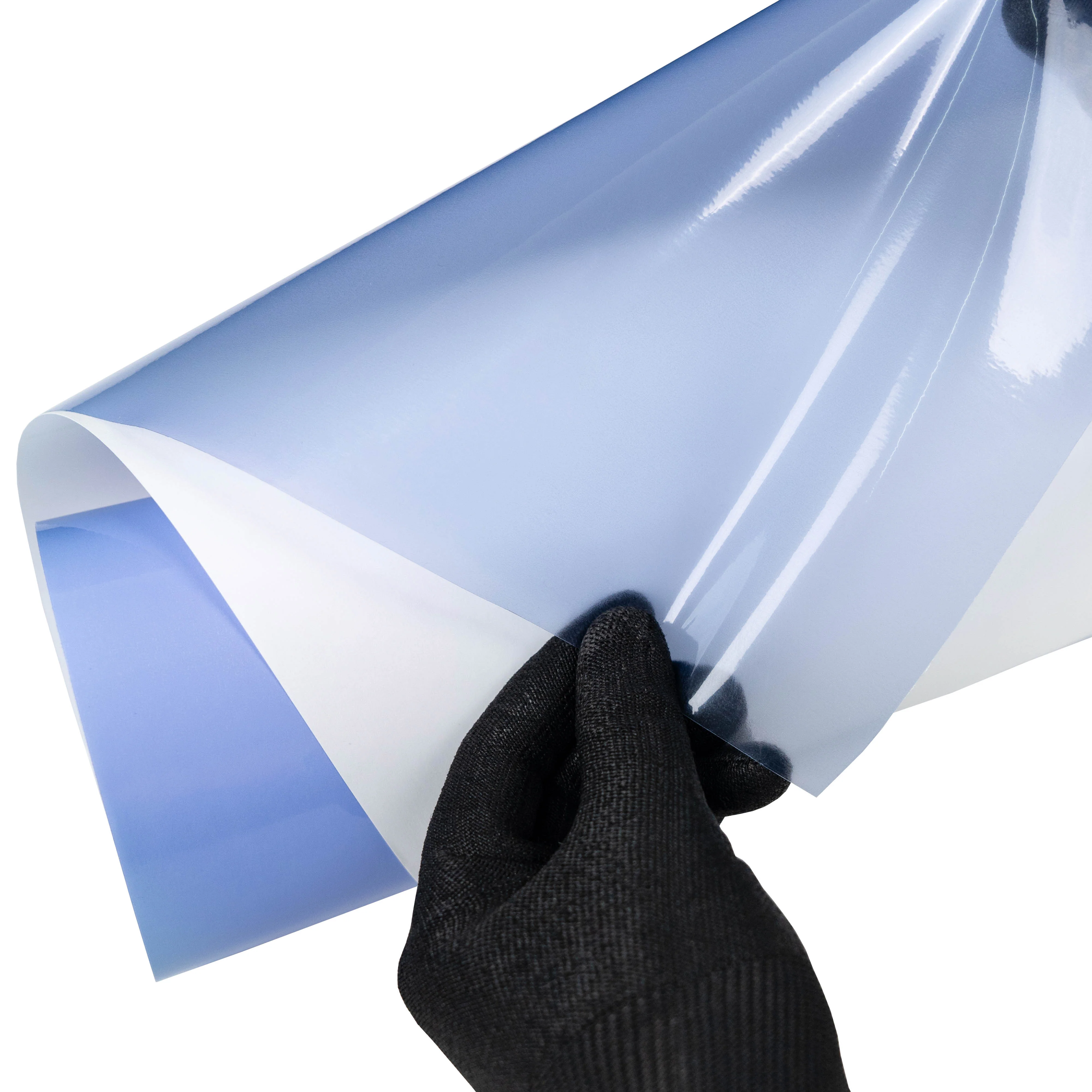

Please Note: This light tint film is semi-transparent. The color may look slightly different on the white backing paper, but once the backing is removed and applied to your lights, you’ll see the true color.

Video

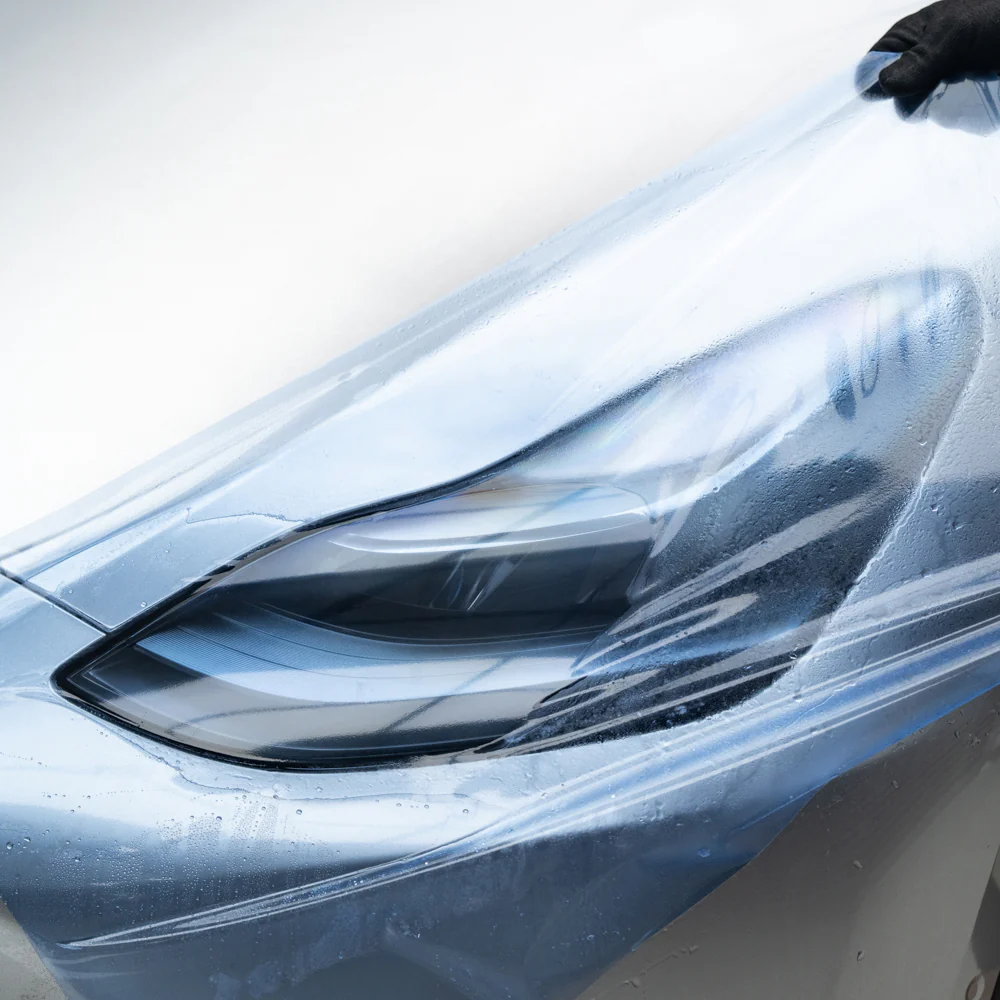

Proper Installation

If the headlight surface is clean and undamaged before installation, the wrap adheres evenly and removes smoothly.

Proper Removal Technique

Using gentle heat (like a heat gun or hairdryer) softens the adhesive, making it easier to peel without pulling or tearing the headlight’s factory coating.

Warning

If the headlights are already oxidized, yellowed, or have weak factory coating, peeling the wrap can pull off clear coat or cause flaking.

Physical Properties

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	25±5	PE
	Acrylic Adhesive	um	20±2	Solvent-based
	Face Film	um	100±5	/
	Release liner	um	180±2%	Paper Liner
Surface	-	-	Glossy & Matte	/
Width	-	cm	30/40±0.01%	1ft/1.3ft
Length	-	m	10±1%	32ft

Physical Performance

Features		Test Method	Results
Gloss (60°)		GB 8807	92.3
VLT		/	87%
Self-healing Layer Elongation at Break		GB/T 1040.1	112
Face Film Elongation at Break		GB/T 1040.1	309.5
Tear Strength		GB/T529	92.7 KN/m
Tensile Strength		GB/T 1040.1	21.6 Mpa
100% Modulus		GB/T 1040.1	9.1 Mpa
Anti-yellowing		/	ΔE< 1.2
Light Transmission		＞40%	43%
Adhesive residue		/	＜3%
Release force (N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.16
Initial tack (g/25mm)		under 24℃ and 26%, GB31125-2014	860
Peel Strength (N/25mm)		180°	15
Holding power(h)		paste on steel board, hang on by 25mm*25mm*1kg weight under 29℃ and 55%, GB/T4851-1998	No peel off within 48 hours
Aging Test		65℃ and 7 days	No adhesive residue under 20 times wrapping
Application Temperature		/	+20℃ to +30℃
Service Temperature		/	-50℃ to +110℃
Recommended Shelf Life		72°F (22°C) and 50% RH	1 year
Durability		/	1 year
Time limits		Must use it within 3 months after receiving the wrap film	3 months



Shelf Life

1 year from date of purchase when stored at 50°F to 80°F (15°C – 25°C) and 45% to 50% relative humidity. Optimum recommended storage conditions are 72°F (22°C) and 50% relative humidity.

Important Notice

The physical properties of the product detailed in this document are based on tests that we believe to be reliable. They are intended only as a source of information and are given without guarantee. They do not constitute a warranty. Purchasers should independently assess the suitability of this material for their specific use prior to application.

Warranty, Limited Remedy, and Disclaimer

Unless an additional warranty is specifically stated on the applicable product packaging or literature, VinylFrog warrants that each product meets the applicable specifications at the time of shipment. We make no other warranties or conditions, express or implied, including but not limited to any implied warranty or condition of merchantability or fitness for a particular purpose, or any implied warranty or condition arising out of a course of dealing, custom, or usage of trade. If the VinylFrog product does not conform to this warranty, then based on our discretion, the sole and exclusive remedy is either the replacement of the product or a refund of the purchase price.

Limitation of Liability

Except where prohibited by law, VinylFrog will not be liable for any loss or damage arising from its product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

Durability

The durability of the product is based on exposure conditions in South China. Actual performance life will depend on substrate preparation, exposure conditions, and maintenance of the product. For instance, in areas with excessively high temperature, industrial pollution, or high altitude, exterior performance will decrease.

Recommendations

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for Car Light Protection Film. Do not overstretch and overheat. Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves and overlaps.
Aftercare: PH neutral. Avoid wax or solvents.
